Brief Introduction
ICOE AO100F microscope is configured for FISH aka in situ hybridization. This fluorescence microscope comes with a trinocular head so that you can add a camera to this system at anytime. The 10x eyepieces provide you with a large 25mm field of view. The enhanced Semi-APO fluorite objectives provide high resolution images. This package includes a 6 position reflected light illuminator, and metal halide fluorescence illuminator and power supply. It comes with DAPI, ET Gold FISH, ET Aqua FISH, and ET Green/Red FISH fluorescence filters.
1. Microscope Body Frame
Compound Microscope frame for applications of transmitted & reflected microscopy, made of metal aluminum; Equipped with LIM light intensity management, Kohler lighting path, can be connected to ultra-high-power LED light room, comes with bracket of stage and condenser.
2. Various Viewing head Available
1). Widefield trinocular viewing head, reversed image, 30 degree inclined, Interpupillary distance adjustment between 45-78mm, with beamsplitter: 0/100, 50/50, with eyetube diameter Φ30mm, FOV width: 23mm
2). Widefield trinocular viewing head, reversed image, 30 degree inclined, Interpupillary distance adjustment between 50-76mm, with beamsplitter: 0/100, 20/80, 100/0 with eyetube diameter Φ30mm, FOV width: 26.5mm
3). Widefield trinocular viewing head, reversed image, 30 degree inclined, Interpupillary distance adjustment between 45-78mm, with beamsplitter: 0/100, 50/50, 100/0, with eyetube diameter Φ30mm, FOV width: 26.5mm
4). Widefield trinocular viewing head, erect image, 30 degree inclined, Interpupillary distance adjustment between 45-78mm, with beamsplitter: 0/100, 50/50, with eyetube diameter Φ30mm, FOV width: 26.5mm
5). Ergo tilting trinocular head, reversed image, eyetube angle can be adjustable from 0° to 35°, interpupilary distance adjustment between 50-76mm, with beamsplitter 0/100, 50/50, 100/0 the splitter, with eyetube diameter Φ30mm, FOV width: 26.5mm
6). Ergo tilting trinocular head, erect image, eyetube angle can be adjustable from 0° to 45°, interpupilary distance adjustment between 45-78mm, with beamsplitter 0/100, 50/50, the splitter, with eyetube diameter Φ30mm, FOV width: 26.5mm
3. Various Eyepieces available
4. Various Nosepiece available
5. Objectives
6. Stage
Manual Stage – there are 3 types of manual stages available for options
Option 1: Mechanical stage 235mmx150mm with insert from Gorilla glass and travel range 76 x 54 mm, Gorilla glass insert, with right (or left) hand low drive control,Super wear-resistant stage slide holder for 2 slides
Option 2: Mechanical stage 235mmx150mm with insert from Gorilla glass and travel range 76 x 54 mm, sapphire glass insert, with right (or left) hand low drive control, Super wear-resistant stage slide holder for 2 slides
Option 3: Ceramic-coated coaxial stage with right (or left) hand low drive control, size 187x166mm, with rotating mechanism and torque adjustment mechanism, XY movement range 75x55mm, Super wear-resistant stage slide holder for 2 slides
Motorized Stage – there are 3 types of motorized stages available for options
Condenser
Transmitted illuminator

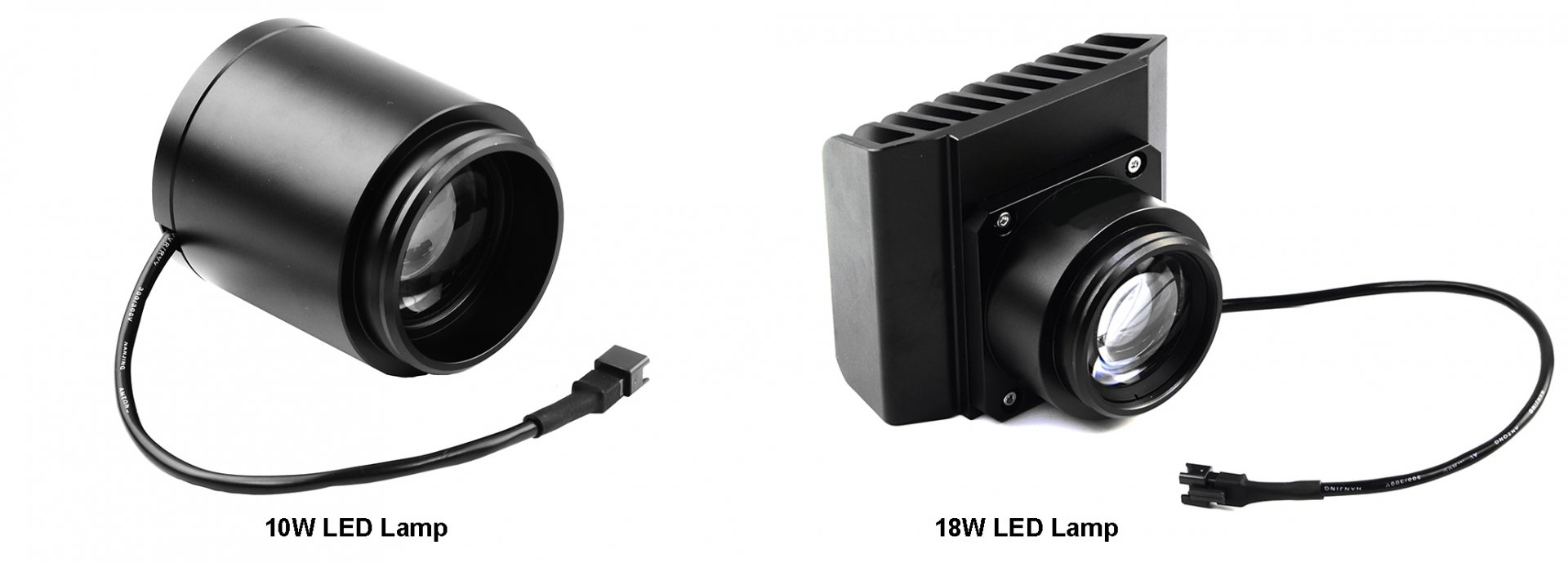

We provide two solutions for transmitted light of AO100 microscope, they are 10W LED lamp for economic solution, and 18W LED lamp for advance solution
1). 10W LED lamp, support LIM brightness change accoridng to the objective magnification and ECO energy saving
2). 18W LED lamp, support LIM brightness change accoridng to the objective magnification and ECO energy saving
Fluorescent filters

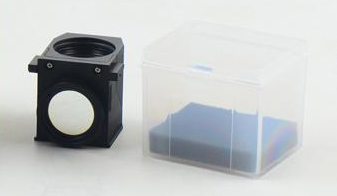

Solution 1
GR/OR bicolor excitation filter cube
U-FF-GR/OR, EX: 480~560nm, Dichroic: 517/613nm, Emission: 523-617nm, (for FISH)
Solution 2
DA/FI/TX three color excitation filter cube
U-FF-DA/FI/TX, EX: 405/491/573nm, Dichroic: 435/505/593nm, Emission: 458/530/630nm, (for FISH)
Solution 3
DA/FI/TX three color excitation filter cube,
U-FF-DA/FI/TX2, EX: 395/480/560nm, Dichroic: 410/500/580nm, Emission: 440/521/606nm, (for FISH)

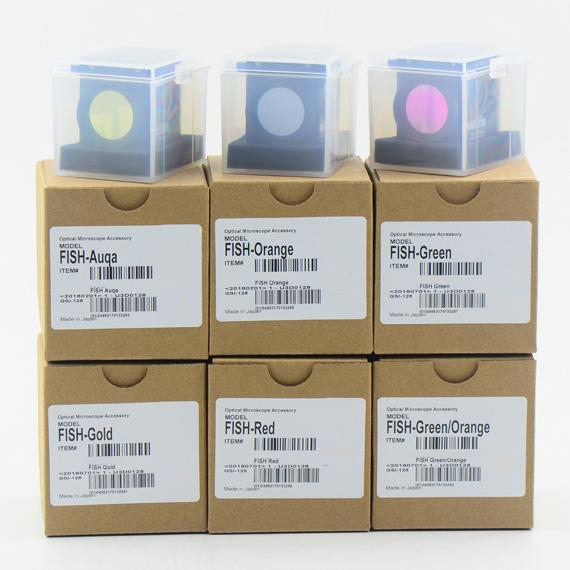

Solution 4
Five-color FISH probe excitation cubes combination set
Dapi / Aqua / Green / Orange / Green+Orange
Imported filters, with 5-year warranty
Note: We also supply more other fluorescent filter cubes, please contact us to get more information, or you can request us for customizing the fluorescent filter cubes
