Description

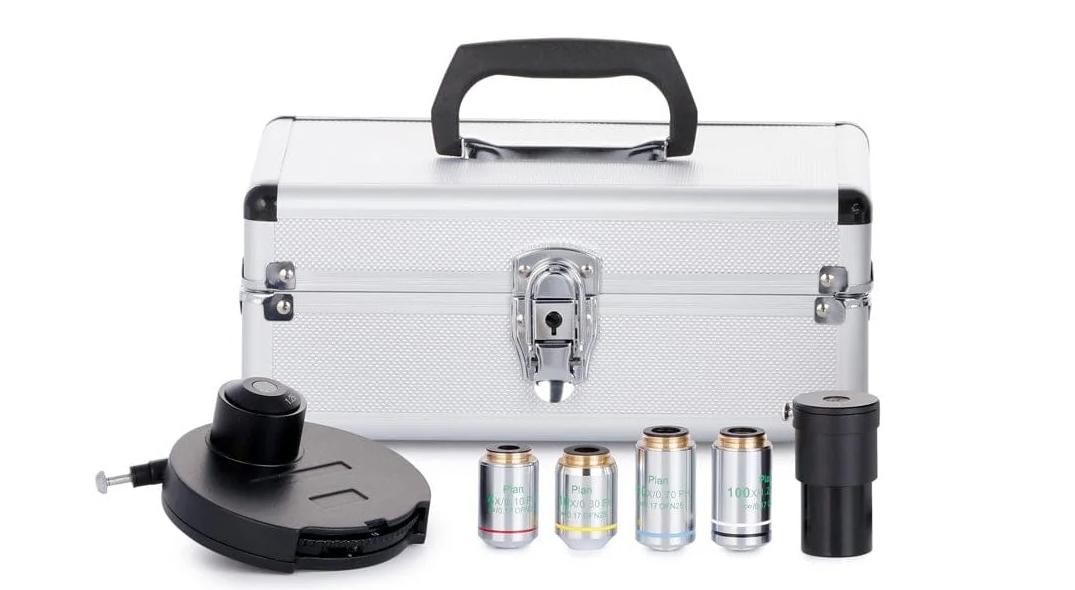

Phase Contrast Kit
– Turret phase contrast condenser NA1.25, with 5-position phase-contrast turret (BF, 10X, 20X, 40X, 100X)
– Telescope
– Infinite Plan Achromatic Objectives 10x, 20x, 40x & 100x, the objective details, please refer to below:
| Magnification | NA | Immersion Medium | Cover-glass Thickness |
| Infinite Plan Achromatic Phase Contrast Objective 10X | 0.25 | — | 0.17mm |
| Infinite Plan Achromatic Phase Contrast Objective 20X | 0.4 | — | 0.17mm |
| Infinite Plan Achromatic Phase Contrast Objective 40X | 0.65 | — | 0.17mm |
| Infinite Plan Achromatic Phase Contrast Objective 100X | 1.25 | oil | 0.17mm |
Models & Specifications

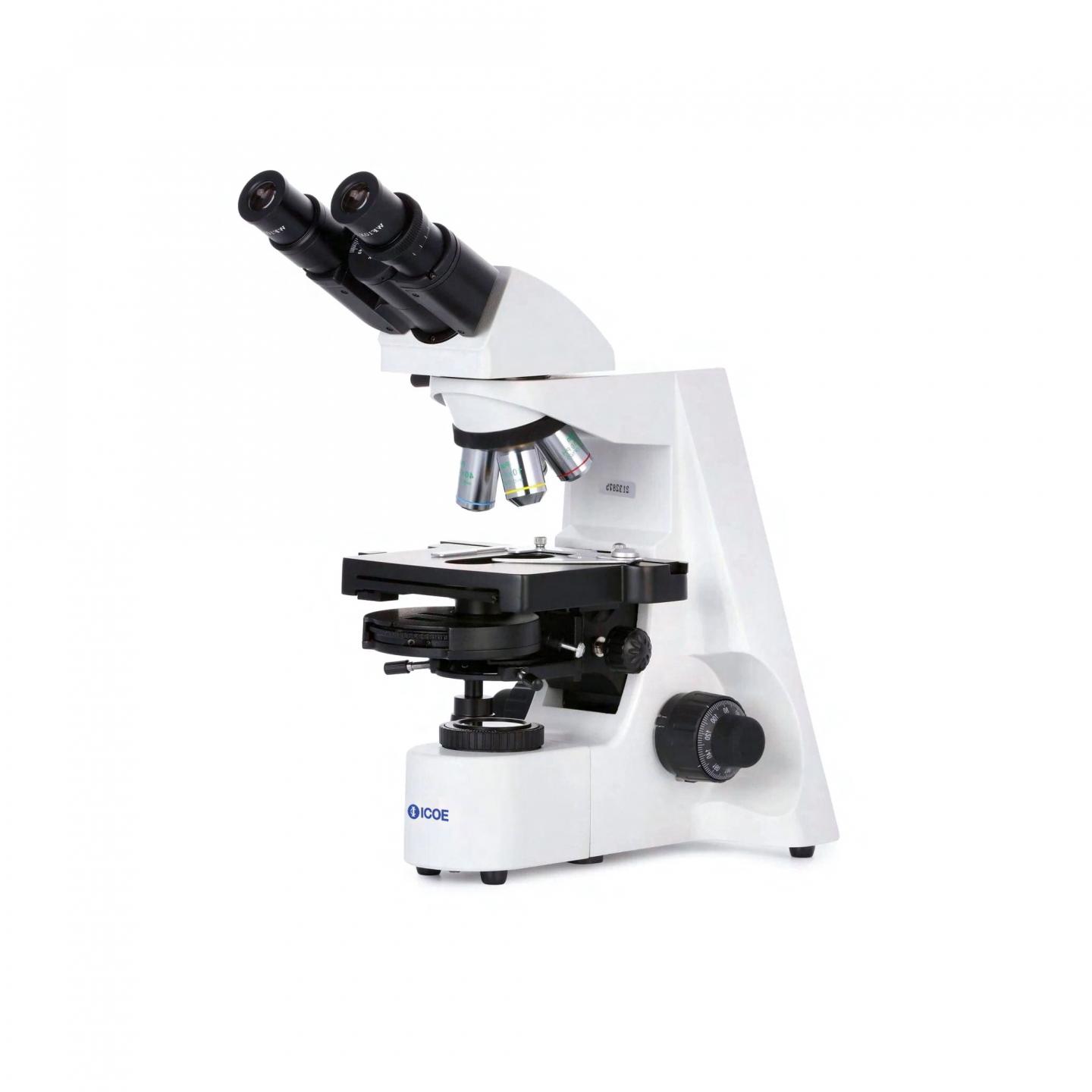

| Model | BC1000PHB | BC1000PHT | BC1000PHL | |
| Optical system: | Infinite Color Corrected Optical System | • | • | • |
| Viewing head: | Binocular viewing head, inclined 30°,Rotatable 360°, interpupilary Distance:48mm-75mm | • | ||
| Trincoular viewing head, inclined 30°,Rotatable 360°, interpupilary Distance:48mm-75mm, light distribution: 100:0/80:20 | • | • | • | |
| Eyepiece: | A pair of high eyepoint widefield WF10X/22mm, ±5 diopter adjustment on left eyetube | •• | •• | •• |
| Nosepiece: | Reversed quintuple ball bearings revolving nosepiece | • | • | • |
| Objectives: | All with anti-fungus treatment. | • | • | • |
| Infinite Plan Achromatic Objective 4x, NA: 0.10 | • | • | • | |
| Infinite Plan Achromatic Objective 10x, NA: 0.25 | ○ | ○ | ○ | |
| Infinite Plan Achromatic Objective 20x, NA: 0.40 | ○ | ○ | ○ | |
| Infinite Plan Achromatic Objective 40x, NA: 0.65 | ○ | ○ | ○ | |
| Infinite Plan Achromatic Objective 60x, NA: 0.80 | ○ | ○ | ○ | |
| Infinite Plan Achromatic Objective 100x, NA: 1.25 | ○ | ○ | ○ | |
| Infinite Plan Phase Contrast Objective PH10x, NA: 0.25 | • | • | • | |
| Infinite Plan Phase Contrast Objective PH20x, NA: 0.40 | • | • | • | |
| Infinite Plan Phase Contrast Objective PH40x, NA: 0.65 | • | • | • | |
| Infinite Plan Phase Contrast Objective PH100x, NA: 1.25 | • | • | • | |
| Stage: | Double layer mechanical stage, with size: 180x160mm, 80x50mm X-Y movement range. Vernier scale on the two axes | • | • | • |
| Focusing: | Integrated design, coaxial focus & fine focusing system with upper limited and tension adjustment, fine focus accuracy: 2 µm, fine stroke: 25mm, provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device | • | • | • |
| Condenser: | Turret phase contrast condenser with bright field position and phase contrast position for phase 10x, 20x/40x, 100x | • | • | • |
| Telescope: | Phase centering telescope | • | • | • |
| Illumination: | 3W LED lamp with Köhler illumination, long lifetime, brightness adjustable | • | • | • |
| Power: | Multi-plug 85-230Vac, 50/60Hz external power supply | • | • | • |
| Others: | Dust cover, power cord, with green filter, allen key, immersion oil | • | • | • |
| C mount: | 0.5x C mount for digital camera | ○ | • | |
| 1x C mount for digital camera | ○ | ○ | ○ | |
| Digital tablet: | 10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip, 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | • | ||
