Description

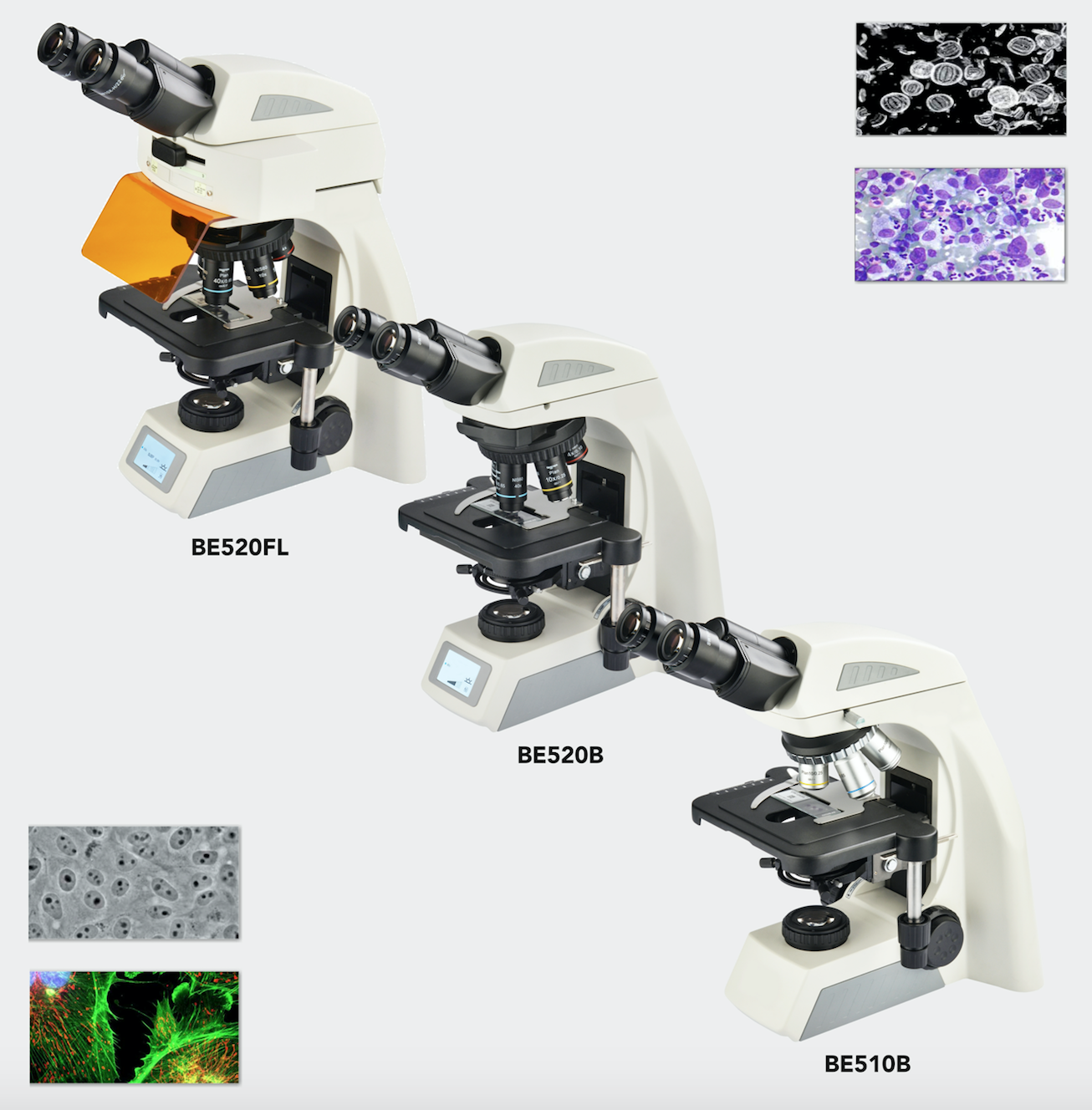

BE500 Series Compound Microscopes, Designed for Satisfying Needs of Modern Laboratories, Clinics and Universities.

The BE500 series is available in various configurations suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications. Besides the brightfield contrast method, configurations for phase contrast, darkfield, basic polarization and several epi-illumination sources for fluorescence applications can be used. BE500 series models with multi-heads are also available for teaching purposes

ROUTINE IN UNIVERSITIES, LABS & INDUSTRIES

• Wide range to fulfil specific lab requirements
• Valuable solutions for life and material sciences
• Compliant with several observation methods

THE OPTIMAL PARTNER FOR ROUTINE TASKS

• Full planarity optics on FN 22mm
• Koehler illumination for crisp and contrasted images
• Rounded edge, rackless stage to prevent scratches

  EXCELLENT OPTICAL DESIGN

NIS Infinity Optical System

NIS Infinity plan objectives can provide high contrast and very flat image upt to FN22. With FN22 wide field eyepieces, the system always brings you sharp, excellent resolution and high signal to noise ratio image.

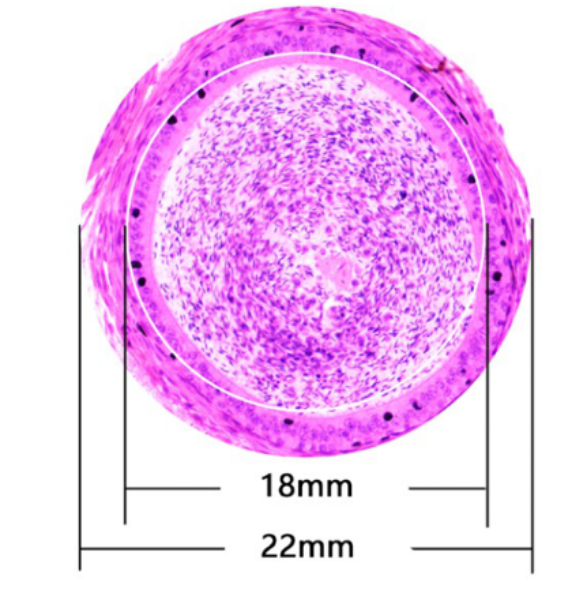

22mm Wide Field of View

The BE500 series microscope achieves the wide field of 22m view with 10x eyepieces for a more comprehensive observation content and faster sample observation. The eyepieces adopts a flat field distortion-free design to prevent the edge of the field from being imaginary and stray light.

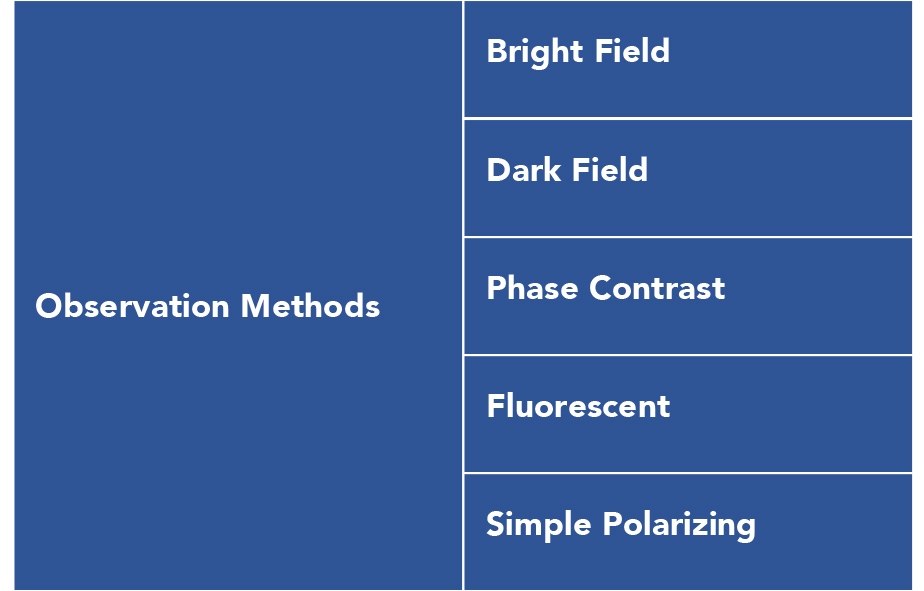

Various Observation Methods

With the deepening of research in various field, a single observation mode can no longer meet the daily scientific research work. As a continually upgradable microscope, BE500 can be extended on basic models to show a variety of observation capabilities.

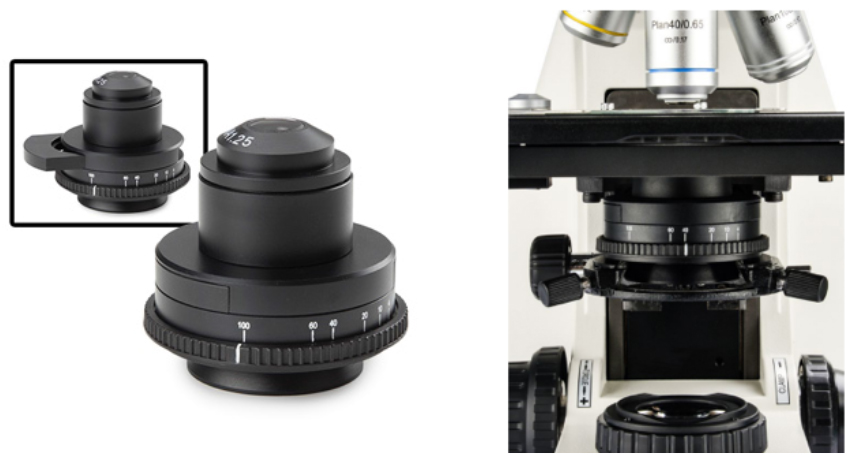

Multifunctional Universal Condenser

BE500 offers universal condensers for bright field, dark field and phase contrast. The observation methods could be quickly switched by switching the slider. The phase contrast and bright field slider is universal for 4x-100x objectives also, simple and fast to use. The N.A. value index on the aperture diaphragm of the condenser is easily set to get exact size of diaphragm to correspond with the different objectives. A slider with a simple dark stop for darkfield up to 400x magnification is also available

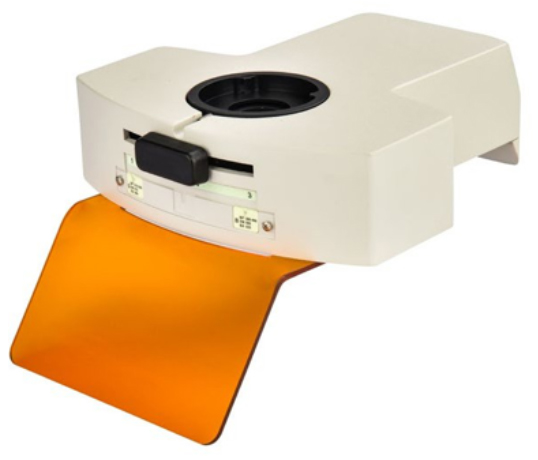

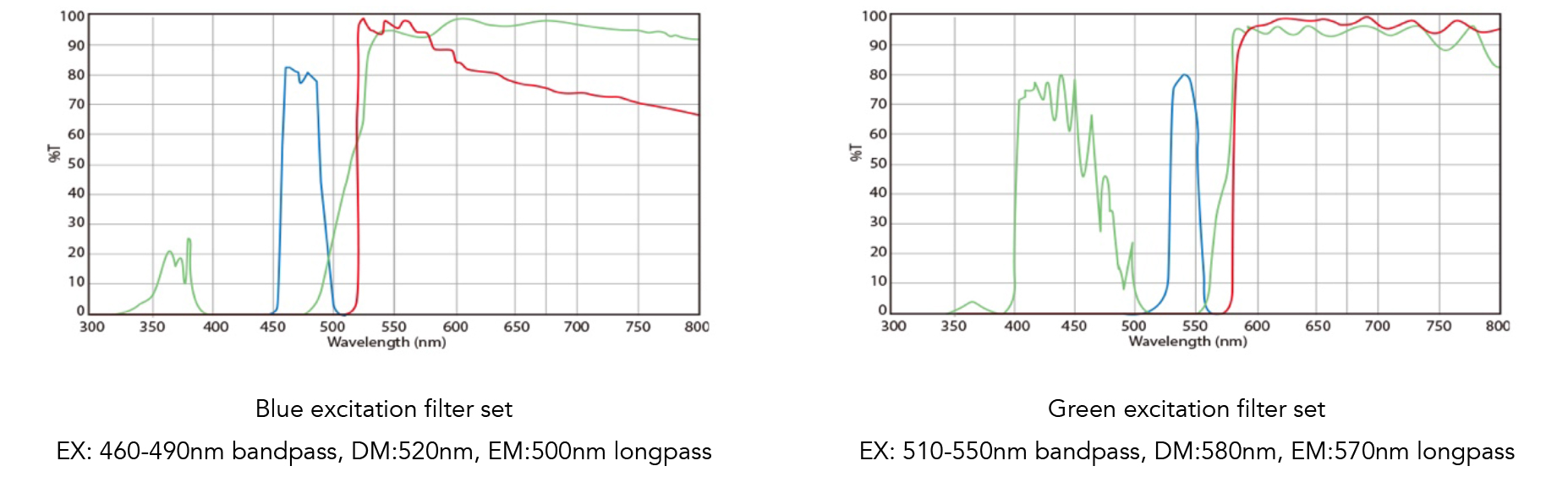

“FE” LED EPI-Fluorescent Illumination

Our “FE” LED EPI- Fluorescent illumination is safety and convenient. You don’t need time to warm up or cool down. You don’t need to align the bulb, and the long lifetime of LED bulb is up to 5000 hours. There are two filters position available and switching is fast and easy.

The excellent optics and mechanical components make the BE500 a state-of-the art microscope that is suitable for fluorescence applications in life science and biotechnical fields

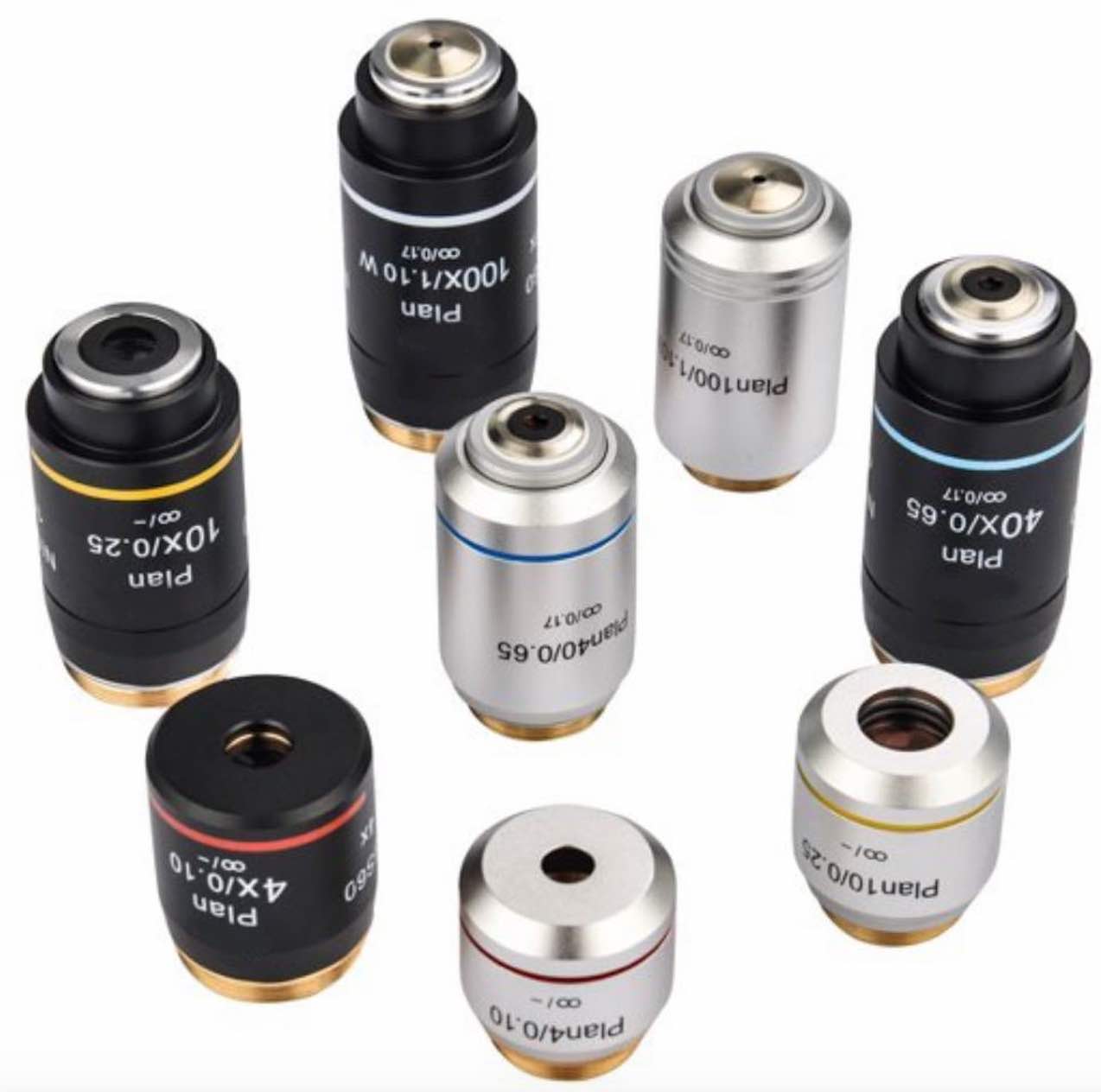

 Excellent Infinity Optics Objectives

BE500 is suitable for all kinds of microscopic using, especially for beginners and the users with long time micro-operation. The BE500 series of microscopes are fully optimized for the needs of such users. In terms of the objectives, the image quality and ease of use are achieved.

Plan Objective

By using infinity plan objectives, flat image with higher imaging reduction degree over the entire field of view could be achieved.

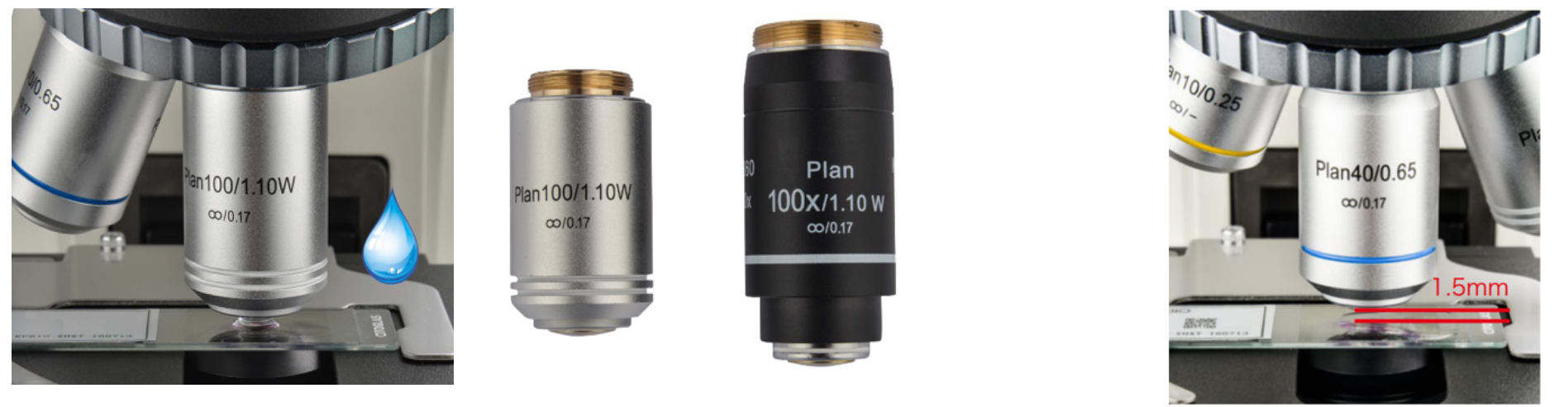

100x Water-immersion Objective

Ordinary 100X oil-immersion objective needs to use cedar oil as the observation medium. After use, it needs to be cleaned with ether alcohol or xylene, which is easy to cause air pollution and improper cleaning. The water -immersion objective uses water as a medium to solve the above problems perfectly, reducing the damage to the body and environmental pollution.

Two 100x water immersion objectives are available: suitable for all brands of microscopes, for a wide range of applications:

The left one: 100x NA=1.1 WD=0.2, aluminum color, parfocal distance 45, objective thread 4/5″.

The right one: 100x NA=1.1 WD=0.2, aluminum black shell, parfocal distance 60, objective lens M25

40x LWD Objective

The working distance of 40x objective can be up to 1.5mm, avoiding the erosion from residual immersion oil and water when converted from 100x to 40x objective.

 Intelligent Operating System

Coded Nosepiece

It can memorize the illumination brightness when using each objective. When different objectives are converted to each other, the light intensity is automatically adjusted to reduce visual fatigue and improve work efficiency.

Multiple functions is achievable by simply using a dimming knob

* One Click: Enter standby status

* Double Clicks: Light lock or unlock

* Rotation: Adjust brightness

* Press + Up-spin: Switch to the upper light source

* Press + Down-spin: Switch to the under light source

* Press 3 seconds: Set the time of turning off the light after leaving

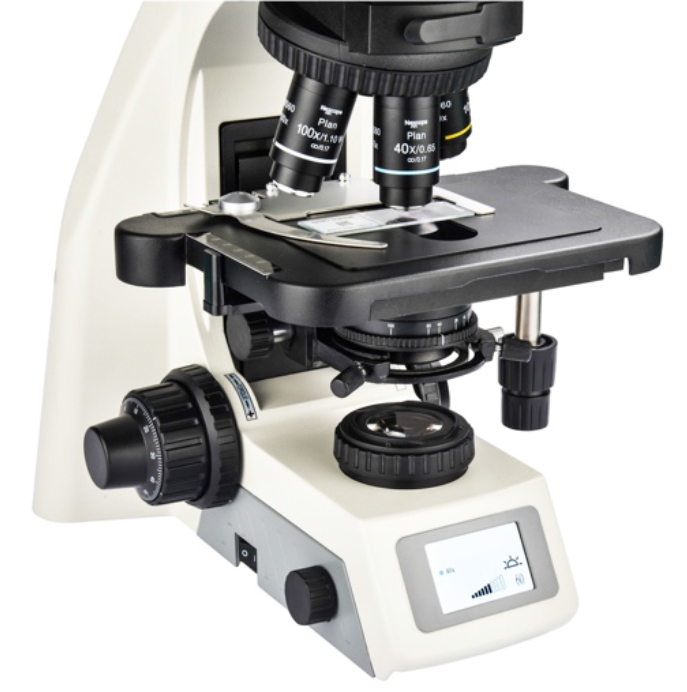

The display of microscope use state

The LCD on the front of the microscope can display the using status of the microscope, including magnification, light intensity, sleepy model, and so on.

 This is an unbounded microscope

BE520D has the multifunctional digital head, the user does not have to be confined in front of the microscope. Instead, it can be used for mobile microscope teaching and outdoor field observation through mobile terminals and external mobile power. The objective, eyepiece, and observation tube are effectively anti-mold treated, so you can ensure a consistently clear image and extend the life of the microscope, even when working in hot and humid environments.

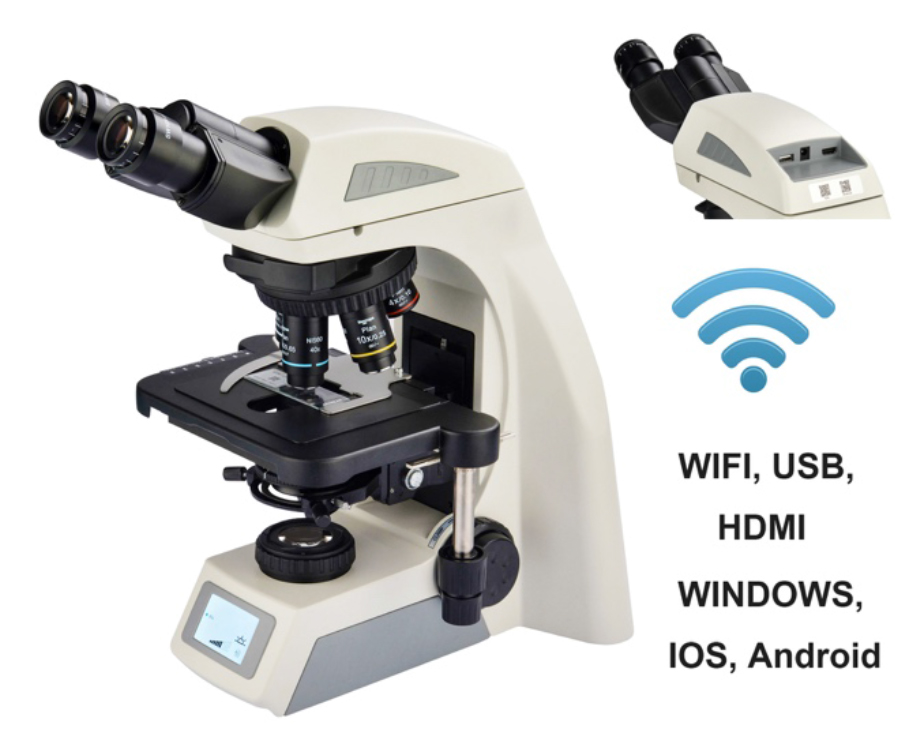

Multifunctional Digital Head

Built-in camera, supporting Android, IOS, Windows operating system, wired and Wifi modes The image under the microscope can be output to the external device in real time, and there is no data line connection, and the operator can move more freely.

Professional microscopic imaging software

Microscopic imaging observation, analysis and processing can be performed on external devices, including photographing, measurement, image adjustment, storage, synthesis, etc.

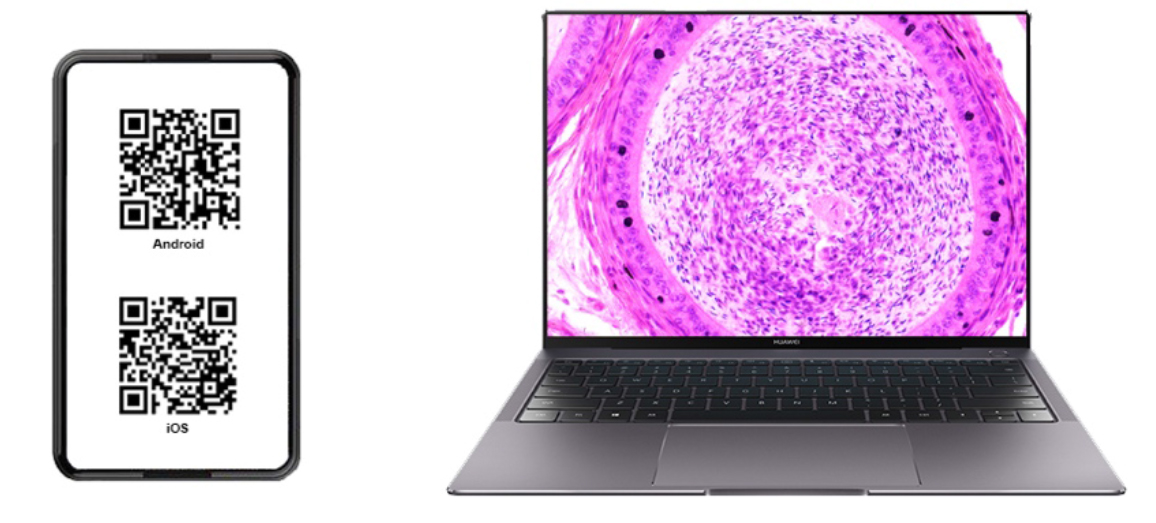

Mobile devices perform image browsing and processing by scanning code

By scanning the QR code on the microscope, installing the APP and identifying the microscope, you can view the microscopic image on your phone and tablet.

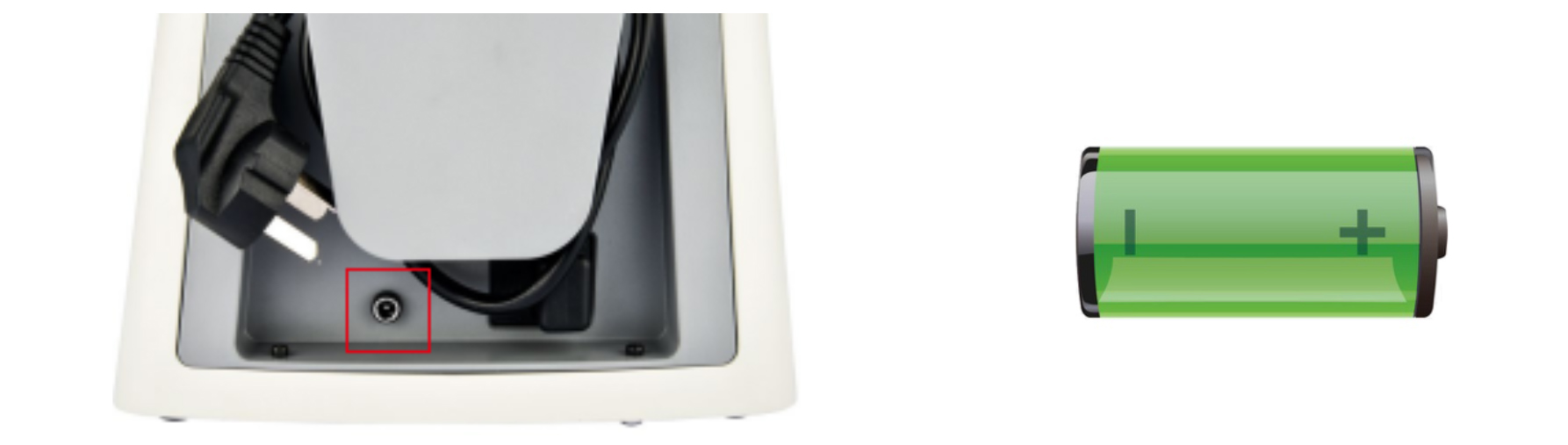

External rechargeable battery

A USB charging port is reserved on the body, which can be used as a microscope power source. This microscope can also be used outside and during power outages to get rid of the microscope’s dependence on the power outlet.

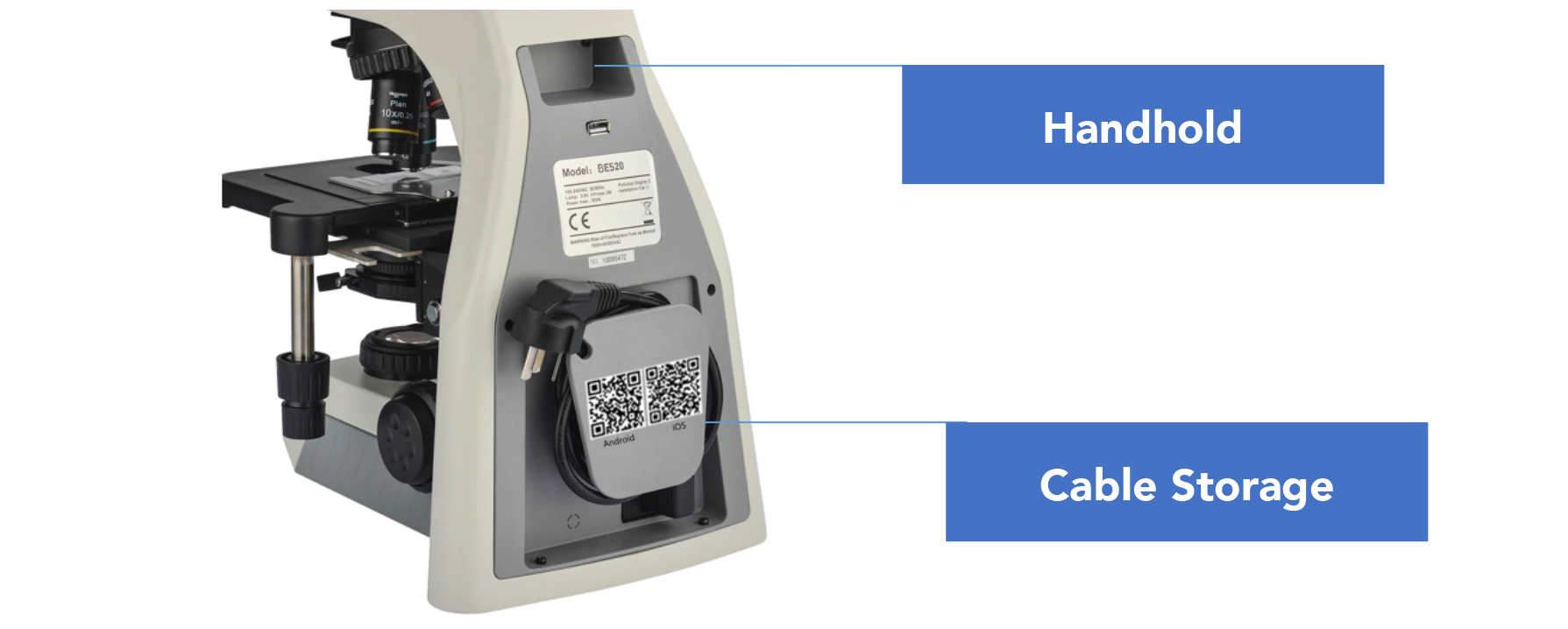

 Easier to store & transport

The microscope is compact and can be placed in an ordinary classroom closet. It has a special carrying handle, and is also lightweight and stable. The microscope back plate is designed with a hub device to effectively store the long power cord, improve the cleanliness of the laboratory, and reduce the tripping accident caused by the long power cord during the carrying process. The wooden storage box is an optional accessory that is very convenient for storage and carrying.

 Ergonomic Design

In daily scientific research teaching and pathological diagnosis, working in front of the microscope for a long time has become the norm, and the consequent use fatigue often leads to physical discomfort, thereby reducing work efficiency and effectiveness. This Green microscope uses an ergonomic design, high eye-point, low-hand focus mechanism, low-hand stage and other ergonomic designs to ensure the user can perform microscope operation in the most comfortable situation. The focus knob, illumination control knob and stage handle are all in close proximity. The user can put both hands on the table while working, and can operate Green with minimal movement.

 Objectives Parameters

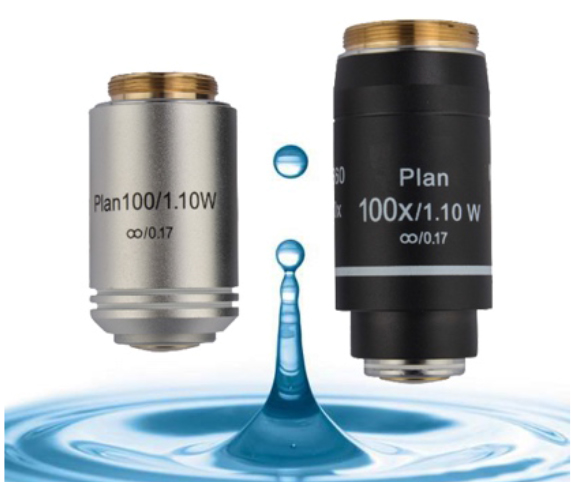

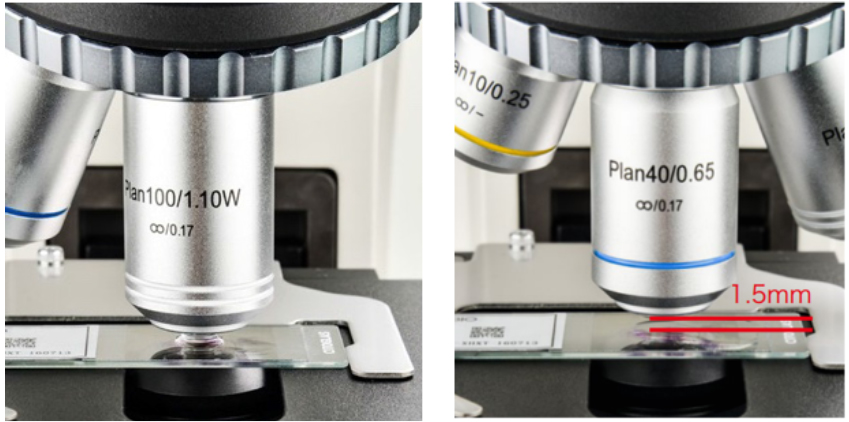

100x water immersion objectives

Two 100x water immersion objectives are available: suitable for all brands of microscopes, for a wide range of applications:

1). Left one: 100x NA=1.1 WD=0.2, aluminum color, parfocal distance 45, objective thread 4/5″

2). Right one: 100x NA=1.1 WD=0.2, aluminum black shell, parfocal distance 60, objective lens M25

40x long working distance objective

The working distance of 40x objective can be up to 1.5mm, avoiding the erosion from residual immersion oil and water when converted from 100x to 40x objective.

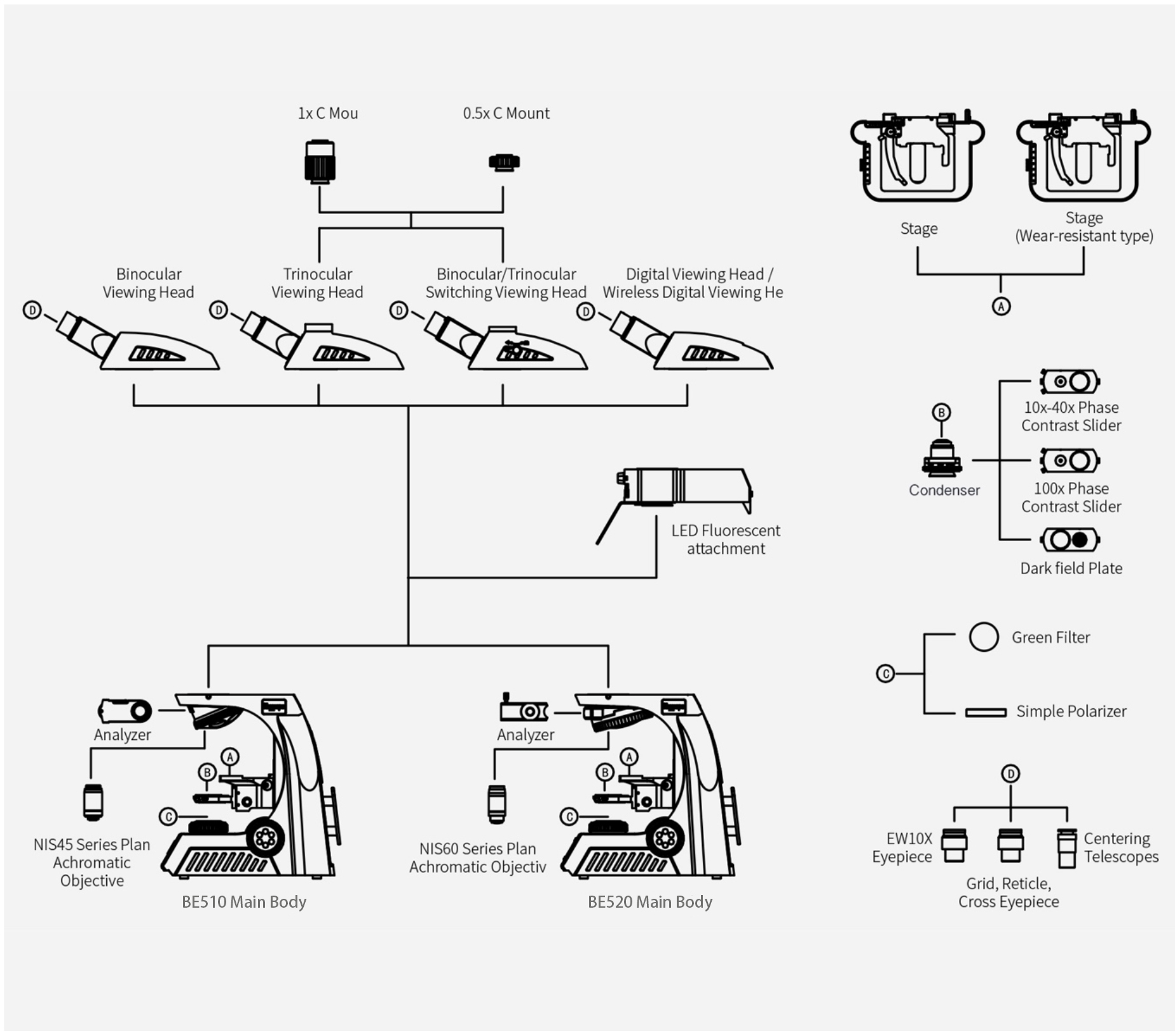

BE500 Series System Diagram

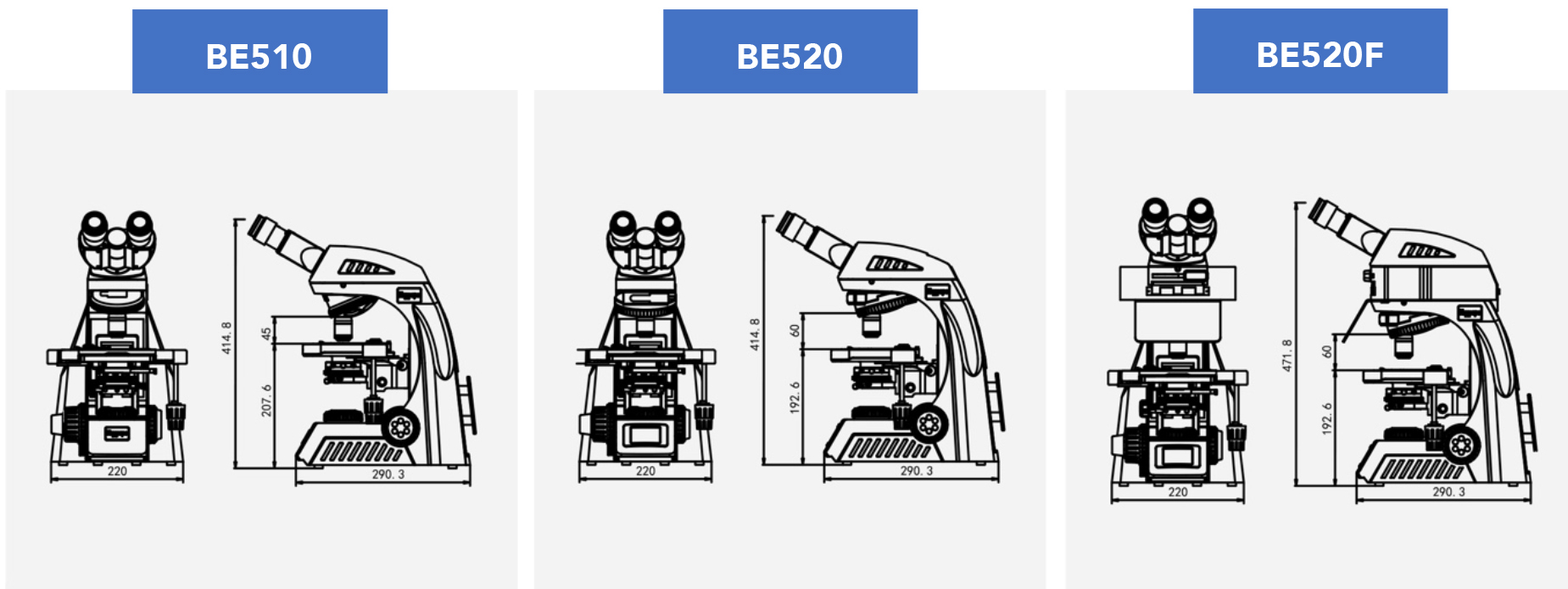

Models and Specifications

 Optional Accessories List
