Description
Models & Specifications

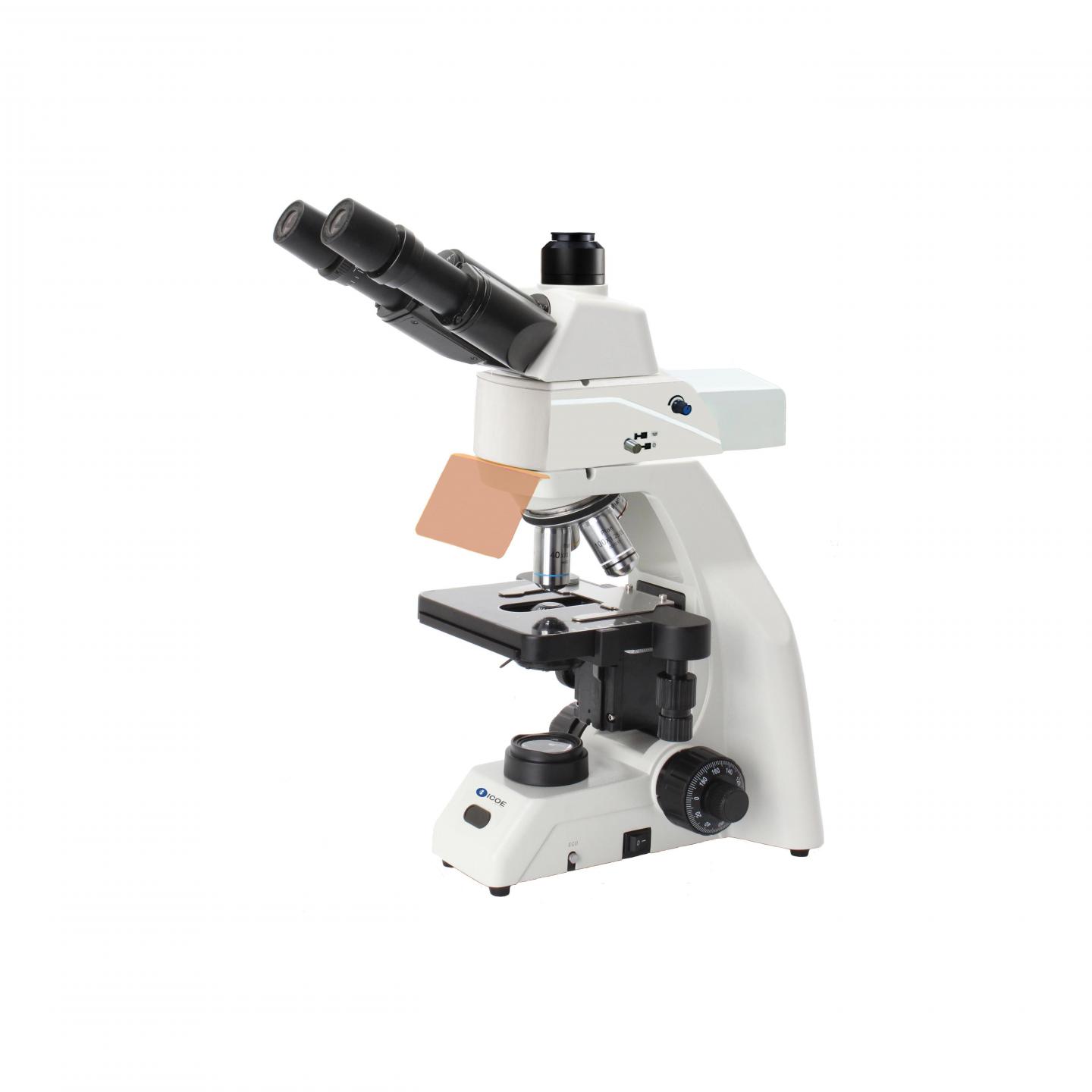

| Model | BM38FS-LED | BM38FP-LED | BM38FL-LED | |
| Optical system: | Infinity corrected optical system | • | • | • |
| Viewing head: | Seidentopf trinocular viewing head inclined at 30°, interpupillary 47-78m, 360° rotation | • | • | • |
| Eyepiece: | A pair of WF10x/20mm eyepiece | • | • | • |
| Nosepiece: | Reversed quadruple ball bearings revolving nosepiece | • | • | • |
| Objectives: | Infinite semi-plan achromatic objective 4x/0.10 | • | ||
| Infinite semi-plan achromatic objective 10x/0.25 | • | |||
| Infinite semi-plan achromatic objective 40x/0.65, spring loaded | • | |||
| Infinite semi-plan achromatic objective 100x/1.25, spring loaded, oil | • | |||
| Infinite plan achromatic objective 4x/0.10 | • | • | ||
| Infinite plan achromatic objective 10x/0.25 | • | • | ||
| Infinite plan achromatic objective 40x/0.65, spring loaded | • | • | ||
| Infinite plan achromatic objective 100x/1.25, spring loaded, oil | • | • | ||
| Stage: | Double layer mechanical stage, with size: 152x140mm, 75x52mm X-Y movement range. Vernier scale on the two axes | • | • | • |
| Focusing: | Integrated design, coaxial focus system with upper limited and tension adjustment, coarse stroke 37.7mm per rotation, fine precision: 0.002mmfine stroke 0.2mm per rotation, moving range: 25mm, provided with an adjustable tightness device to prevent slipping and a mechanical upper limit device | • | • | • |
| Condenser: | Abbe N.A. 1.25 condenser with aperture diaphragm | • | • | • |
| Illumination: | High brightness energy-saving S-LED illumination for long life, brightness adjustable | • | • | • |
| Power: | Multi-plug 100-240Vac, 50/60Hz external power supply | • | • | • |
| Fluorescent attachment: | FM-LED LED Epi-fluorescent Attachment, supplied with 3W Epi-fluorescent illumination device including 2 channels (1 channel for fluorescent cubes and 1-channel for brightfield observation) and a UV protection shield; filter groups. Equipped with 1 fluorescent filter set for Blue excitation: Long-pass EX475/30nm, DM500nm, EM510nmLP (other type filters are optional) | • | • | • |
| Others: | Dust cover, green filters, with carrying handle, cable storage on the back | • | • | • |
| C mount: | 0.5x C mount for digital camera | • | ||
| Digital tablet: | 10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip, 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | • | ||
