Description
Descriptions

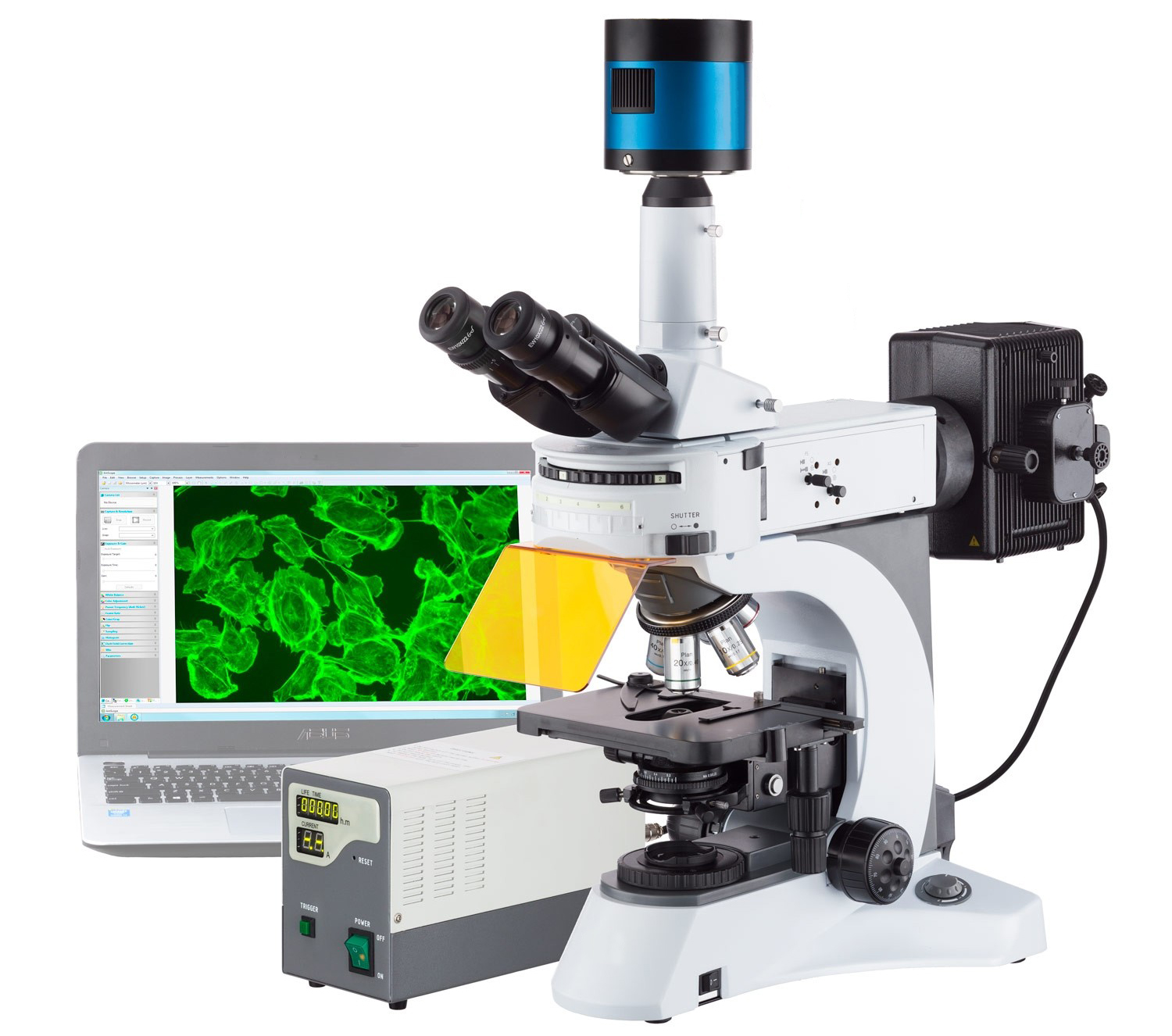

The CB800FL is an upright fluorescence microscope with transmitted and reflected lighting, and a six-filter turret. The microscope is built around an infinity-corrected optical system with a 40X-1000X magnification range, and Koehler diascopic and episcopic illumination. The powerful 100W, wide-spectrum, mercury-vapor episcopic illuminator uses a rotary filter-selector which can house up to six fluorescence filter-blocks; already included are blue, and green excitation blocks. The sub-stage illuminator uses a 30W halogen lamp with field-lens and diaphragm for even, high-contrast lighting.

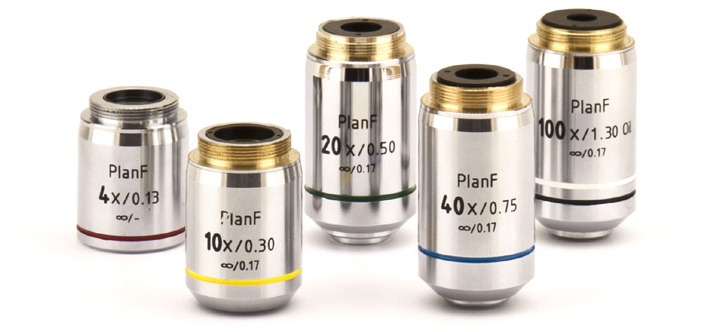

Optional Fluorescent Objective
| Objective | N.A. | W.D. | |||||||
| Infinite Plan Fluorescent Objective 4x | 0.13 | 16.30 | |||||||
| Infinite Plan Fluorescent Objective 10x | 0.30 | 12.40 | |||||||
| Infinite Plan Fluorescent Objective 20x | 0.50 | 1.50 | |||||||
| Infinite Plan Fluorescent Objective 40x | 0.75 | 0.35 | |||||||
| Infinite Plan Fluorescent Objective 100x | 1.30 | 0.13 | |||||||

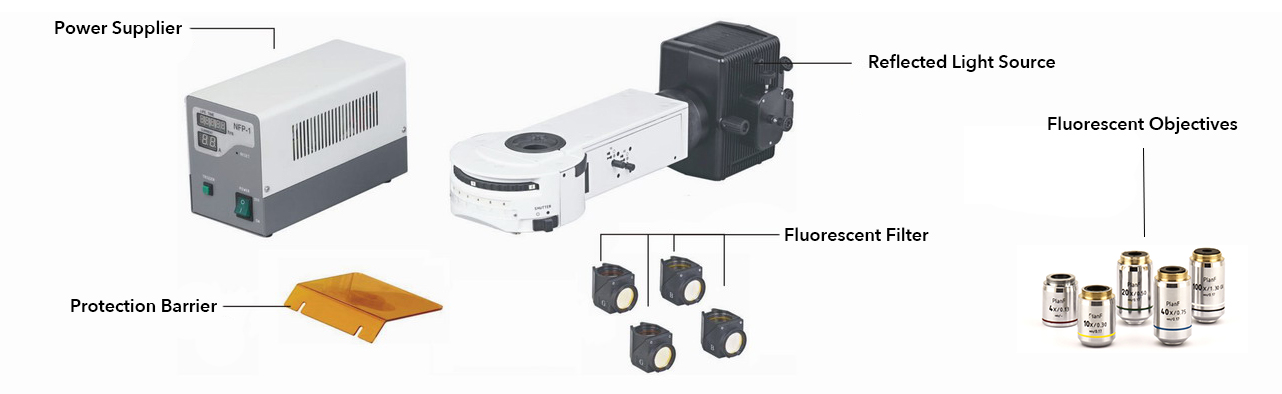

FL-800 epi-fluorscent attachment
Combined FL-800 epi-fluorscent attachment with laboratory microscope CB800, it become a fluorescent microscope. It is suitable for fluorscent microscopy and widely used in venereal disease examination and immuneiess diagnosis.
- • FL-800 is abel to contain max. 6pcs filterblock
- • Excellent fluorescent image with high resolution fluorescent objectives.
- • Protect the light leak with advanced lamp housing
- • More stable power supply, digital display and timer.

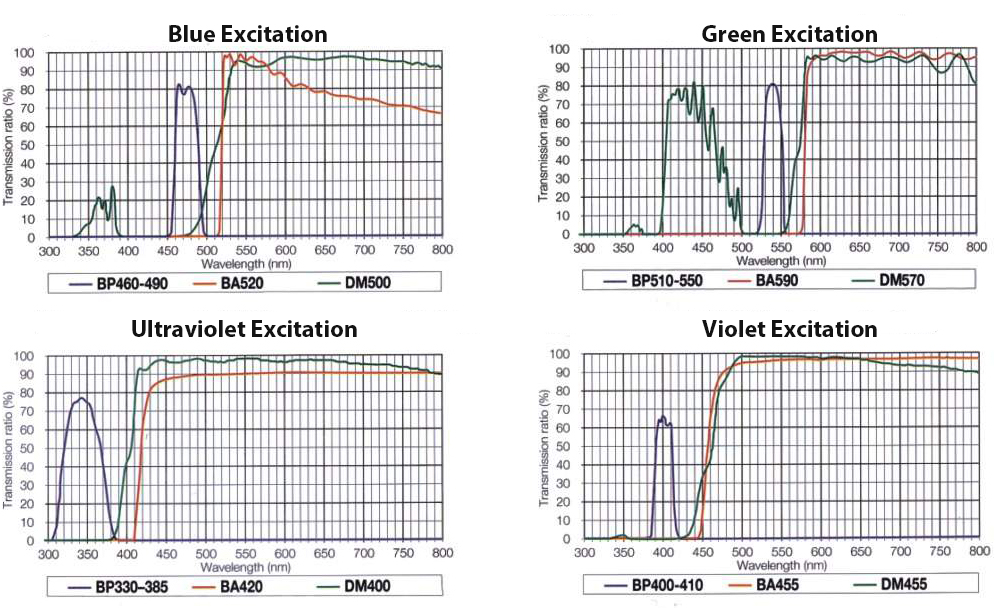

| Reflected Light Source | Excitation | Dichroic Mirror | Barrier Filter | ||||||||||||
| Blue Excitation | BP460~490 | DM500 | BA520 | ● | |||||||||||
| Green Excitation | BP510~550 | DM570 | BA590 | ● | |||||||||||
| Ultraviolet Excitation | BP330~385 | DM400 | BA420 | ○ | |||||||||||
| Violet Excitation | BP400~410 | DM455 | BA455 | ○ | |||||||||||
| Lamp | 100W HBO Ultra Hi-voltage Spherical Mercury Lamp | ● | |||||||||||||
| Protection Barrier | Barrier Resist the Ultraviolet Light | ● | |||||||||||||
| Power Supplier | Power Suuplier NFP-1, 220V/110V interchangeable, Digital Display | ● | |||||||||||||
| Objective | 4X Infinite Plan Fluorescent Objective | ○ | |||||||||||||
| 10X Infinite Plan Fluorescent Objective | ○ | ||||||||||||||
| 20X Infinite Plan Fluorescent Objective | ○ | ||||||||||||||
| 40X Infinite Plan Fluorescent Objective | ○ | ||||||||||||||
| 100X Infinite Plan Fluorescent Objective | ○ | ||||||||||||||
| Immersion Oil | Fluorescence Free Oil | ● | |||||||||||||
| Others | Neutral ND25 Filter | ○ | |||||||||||||
| Centering Plate | ○ | ||||||||||||||
| Filament Adjuster | ○ | ||||||||||||||
| Note: “●” Standard Outfit, “○” Optional | |||||||||||||||
Documentation Systems
Different accessories for various forms of documentation are available. Choose between digital compact cameras, digital SLR camera or LIVE/ REAL time imaging CCD camera with USB connection, to check the last models, please visit our website or request the brochure.

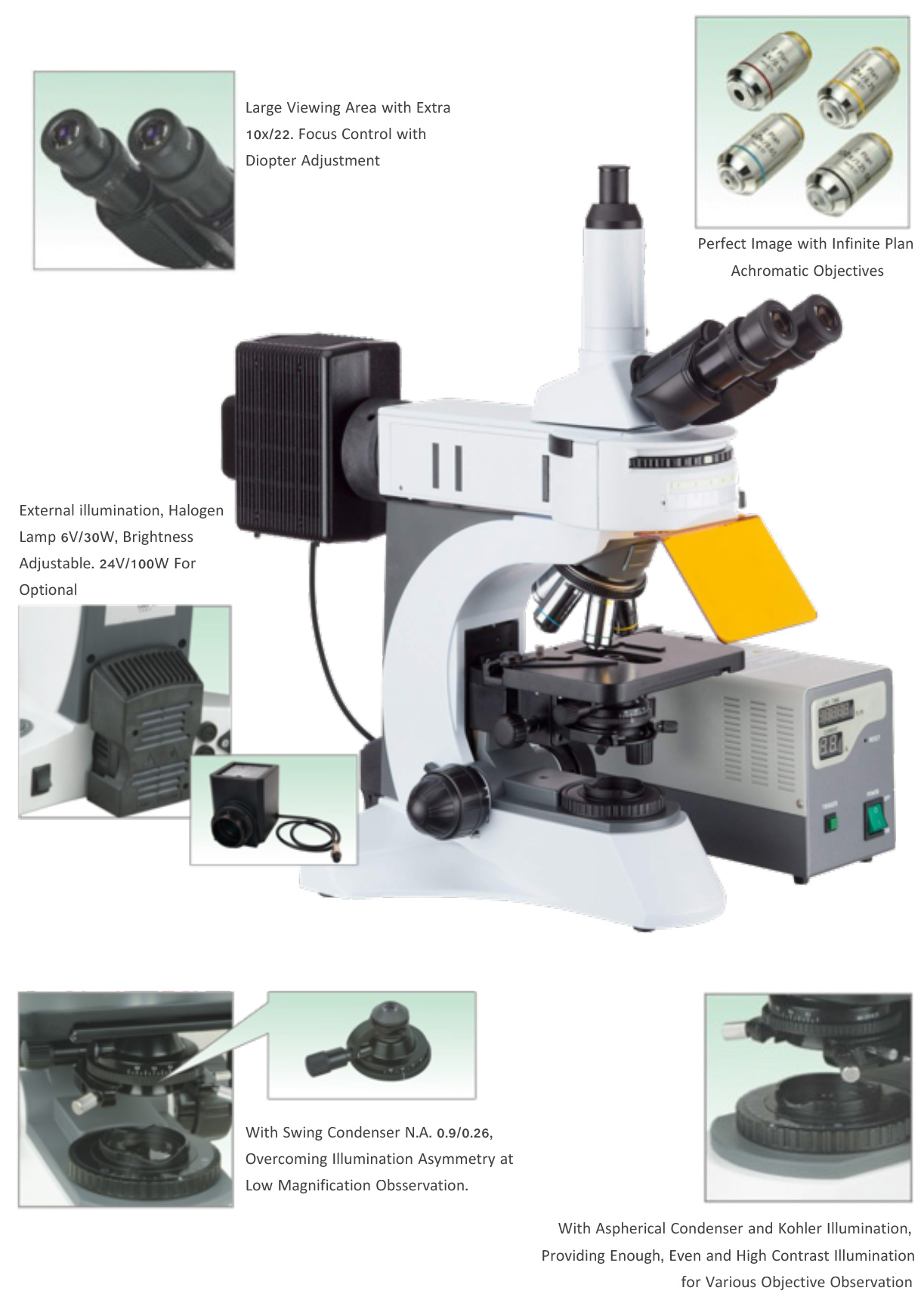

Specifications
| Model | CB800FL |
| Optical system | Infinite optical system |
| Viewing head | Compensation free trinocular head inclined at 30°, 360° rotation, Interpupillary distance 48-75mm, diopter adjustment +/-5, Video adapter C mount 1X for digital camera |
| Eyepiece | Extra wide field eyepiece EW10×/22, eyepiece tube 30mm |
| Objective | Infinite Plan Achromatic Objective 4x, 10x. 40x, 100x |
| Nosepiece | Backward Quintuple Nosepiece |
| Focusing system | Coaxial coarse & fine adjustment, Fine division 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 0.1mm per rotation, moving range 24mm |
| Stage | Double Layers Mechanical Stage 185×142, moving range 75×55mm |
| Condenser | Swing-out achromatic Condenser NA 0.9/0.25 |
| Transmitted illumination | Kohler illumination, aspherical collector, halogen lamp 6V/30W house100W |
| Reflected illumination | 100W HBO ultra hi-voltage spherical mercury lamp |
| Epi-Fluorescent Attachment | Epi-Fluorescent attachment FL-800 standard configuration, Blue Excitation Cube, Excitation: BP460～490, Dichroic Mirror: DM500, Barrier Filter: BA520, Green Excitation Cube, Excitation: BP510～550, Dichroic Mirror: DM570, Barrier Filter: BA590 |
Options
| Cat. Number | Descriptions | Picture |
| M13161001 | Digital Viewing Head Inclined at 30°, 5M pixels, 8” LCD, Android OS | |
| M13161002 | Ergonomic Titable Binocular head 5~35° (white) | |
| M13161003 | Ergonomic Titable Binocular head 5~35° (white) with Trinocular adapter | |
| M13161004 | Eyepiece WF10× with pointer | |
| M13161005 | Eyepiece WF20x/12 | |
| M13161006 | Eyepiece WF15x/16 | |
| M13161007 | Backward Sextuple Nosepiece | |
| M13161008 | Infinite Plan Achromatic objective 20x | |
| M13161009 | Infinite Plan Achromatic objective 60x | |
| M13161010 | 242x158mm X-Y axis Low Hand Position Double Mechanical Stage, 76x50mm, Precision 0.1mm, Damped Double Slide Clamp | |
| M13161011 | 230x150mm X-Yaxis Low Hand Position, Graphite Coating Double Mechanical Stage, 76x50mm, Precision 0.1mm, Damped Double Slide Clamp | |
| M13161012 | External illumination, Aspherical Collector, Halogen Lamp 24V/100W | |
| M13161013 | 3W LED Illumination | |
| M13161014 | 5W LED Illumination | |
| M13161015 | Dark Field Condenser NA0.7-0.9 (Dry) | |
| M13161016 | Dark Field Condenser NA1.25-1.36 (Oil) | |
| M13161017 | Turret Phase Contrast Kit | |
| M13161018 | Simple Polarization Set: Polarizer & Analyzer | |
| M13161019 | Tmeperature Control System: 5W LED Illumination, Temperature Controlling Range: Room Temperature to 50°C | |
| M13161020 | Ultraviolet Excitation Cube, Excitation: BP330～385, Dichroic Mirror: DM400, Barrier Filter: BA420 | |
| M13161021 | Violet Excitation Cube, Excitation: BP400～410, Dichroic Mirror: DM455, Barrier Filter: BA455 | |
| M13161022 | Infinite Plan Fluorescent Objective 4x | |
| M13161023 | Infinite Plan Fluorescent Objective 10x | |
| M13161024 | Infinite Plan Fluorescent Objective 20x | |
| M13161025 | Infinite Plan Fluorescent Objective 40x | |
| M13161026 | Infinite Plan Fluorescent Objective 100x | |
| M13161027 | Neutral Filter: ND25 Filter | |
| M13161028 | Centering Plate | |
| M13161029 | Filament Adjuster | |
| M13161030 | 1X C mount | |
| M13161031 | 0.5X C mount |
