Description
The Hemera series microscopes can be extended with a unique multi head system for in total 2, 3, 5 or 10 heads allowing simultaneous observation of specimens
The central attachment is equipped with a trinocular head and with a joystick to move a green or red laser pointer across the entire field of views of all heads. Configurations with 1, 2, 4 or 9 additional binocular heads, 30° inclined tubes and infinity corrected 60mm plan achromatic objectives.

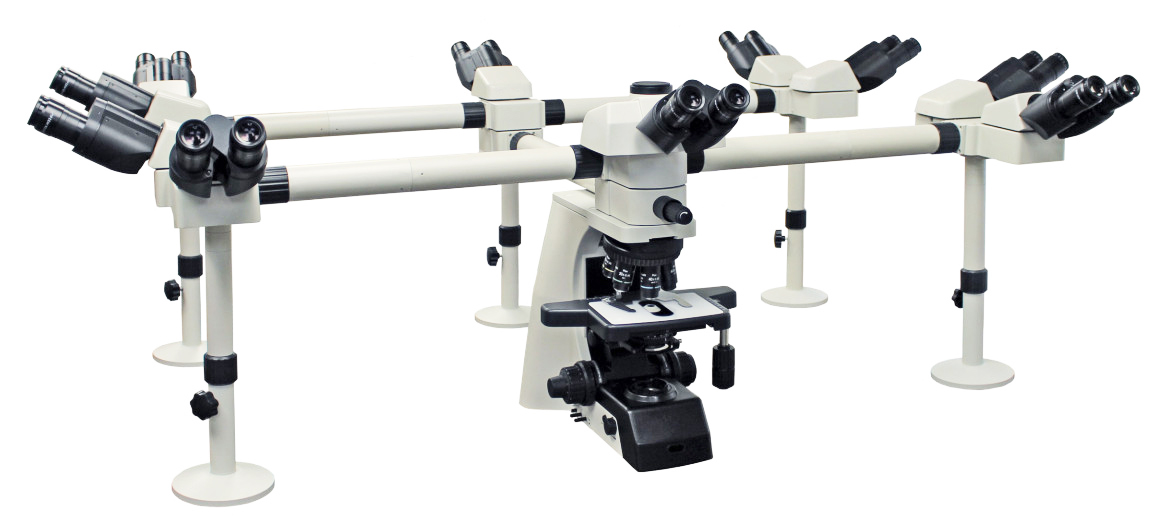

For model Hemera-10U multi-viewing microscopes for 10 users, its trinocular head is supplied with extended wide field SW10x/25mm eyepieces. Each extra binocular head is supplied with with SW10x/22mm eyepieces
Specifications of Hemera-10U
| Model | Hemera-10U | ||
| Optical System | NIS60 Infinite optical system | ● | |
| Eyepiece | SW10X/25 | 2pcs | |
| SW10X/22 | 18pcs | ||
| EW12.5X/17.5 | ○○ | ||
| WF15X/16 | ○○ | ||
| WF20X/12 | ○○ | ||
| Viewing Head | Ergo. titling trinocular head, adjustable from 0° to 35°, interpupilary distance 47-78mm | ○ | |
| Seidentopf trinoculear head, inclined at 30°, interpupilary distance 47-78mm | 1pcs | ||
| Seidentopf binocular head, inclined at 30°, interpupilary distance 47-78mm | 9pcs | ||
| Objective | N-PLN Plan objective | 2x/0.06, WD: 7.5mm | ● |
| 4x/0.10, WD: 30mm | ● | ||
| 10x/0.25, WD: 10.2mm | ● | ||
| 20x/0.40, WD: 12mm | ● | ||
| 40x/0.65, WD: 0.7mm | ● | ||
| 50x/0.95, WD: 0.19mm | ○ | ||
| 60x/0.80, WD: 0.3mm | ● | ||
| 100x/1.25, WD: 0.2mm | ● | ||
| Plan Semi-Apochromatic objective | 4x/0.13, WD: 16.5mm | ● | |
| 10x/0.30, WD: 8.1mm | ● | ||
| 20x/0.50, WD: 2.1mm | ● | ||
| 40x/0.75, WD: 0.7mm | ● | ||
| 100x/1.3, WD: 0.15mm | ● | ||
| N-PLN PH Phase contrast objective | 10x/0.25, WD: 10.2mm | ○ | |
| 20x/0.40, WD: 12mm | ○ | ||
| 40x/0.65, WD: 0.7mm | ○ | ||
| 100x/1.25, WD: 0.2mm | ○ | ||
| Nosepiece | Revolving sextuple reversed nosepiece on ball-bearings | ○ | |
| Revolving Septuple reversed nosepiece on ball-bearings | ● | ||
| Condenser | Swing condenser N.A. 0.9/0.25 | ● | |
| Turret phase contrast condenser | ○ | ||
| Dark-field condenser (Dry) | ○ | ||
| Dark-field condenser (Oil) | ○ | ||
| Illumination | 24V/100W halogen lamp | ● | |
| 3W S-LED lamp with Kohler | ○ | ||
| ECO Function | The transmitted light would be off automatically after 30 minutes from operators leae. It can not only save energy, but also keep the lamp life | ● | |
| Light intensity Management | No need to adjustable the light intensity by hand when switch the objectives. The long-life lamp can keep the light intensity and easy for maintenance | ○ | |
| Focusing | Coaxial coarse and fine adjustment, fine division 1um, moving range 35mm | ● | |
| Stage | Double layer mechanical stage 190×152/78x32mm (right or lfet handle), with sapphire crystal glass insert | ● | |
| Double layer mechanical stage 190×152/78x54mm (right or lfet handle) | ○ | ||
| Pointer | Dual color (green or red) laser pointer that allows the main user to point out areas of interest across the entire field of views of all heads by using the built-in joystick | ● | |
| Accessories | Power cord | ● | |
| cedar oil | ● | ||
| Simple polarization kit | ○ | ||
| Epi-fluorescent attachment | ○ | ||

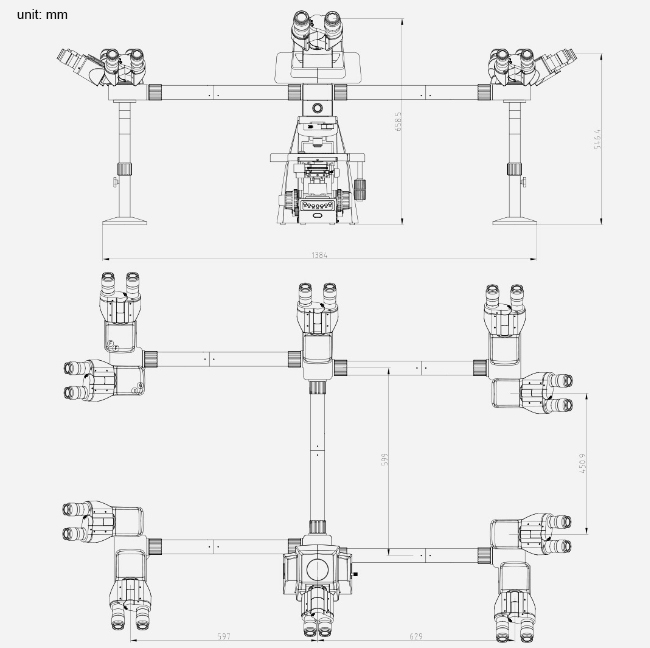

Dimensions of Hemera-10U
