Description
Research-grade Polarizing Microscope with Wide Application Range and High Reliability
Traditional polarizing microscopes are used in geology, mineralogy, metallography and geological exploration. However, with the deepening of various disciplines, more and more fields have put forward demands for polarizing microscopes, including not only industrial fields such as construction, material analysis, semiconductor production and detection, but also natural science fields such as forensic science, medical inspection and biological research.At the same time, the application space and extensibility of microscopes are required to be higher, and customized microscopes with higher image clarity, better contrast and higher efficiency are needed. Polarizing microscope HemeraPL is powerful and comfortable. It is your reliable partner in scientific research and industrial inspection. It can realize many kinds of observation and provide excellent optical imaging quality.
Highlights
• Brightfield and polarization
• 360° rotatable analyzer and polarizer
• Bertrand lens for conoscopic observation
• Enhanced infinity corrected EIS optical system
• High contrast objectives with minimal aberrations
• Semi-apo strain free plan EIS or plan objectives
• Super wide field SWF 10x/25mm eyepieces
• 100 W halogen illumination
• Quintuple nosepiece
Product Features
1. Enhanced Infinity System
The enhanced infinity system (EIS) of the HemeraPL consists of super wide field SFWF 10×25 mm eyepieces, high numerical aperture 45mm parfocal objectives. This tube lens reduces the angle of the light rays passing through the optics and as a direct result significantly improves the chromatic aberration corrections and contrast. The objectives with larger diameter enable much higher numerical apertures improving the overall resolving power of the optical system
For all these reasons the HemeraPL offers superior optical performance for the most demanding applications

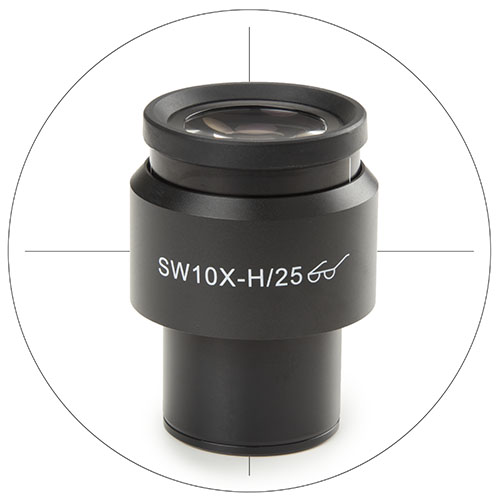

2. Eyepiece
• Super wide field SWF 10x/25 mm, Ø30mm tubes
• Extended wide field EWF 10x/22 mm, Ø30mm tubes (optional)
Three extra eyepieces for transmitted illumination:
• Super wide field SWF 10x/25 eyepiece with micrometer scale for Ø30mm tubes
• Super wide field SWF 10x/25 eyepiece with crosshairs for Ø30mm tubes
• Super wide field SWF 10x/25 eyepiece with grid for Ø30mm tubes
Three extra eyepieces for reflected illumination:
• Super wide field SWF 10x/22 eyepiece with micrometer scale for Ø30mm tubes
• Super wide field SWF 10x/22 eyepiece with crosshairs for Ø30mm tubes
• Super wide field SWF 10x/22 eyepiece with grid for Ø30mm tubes

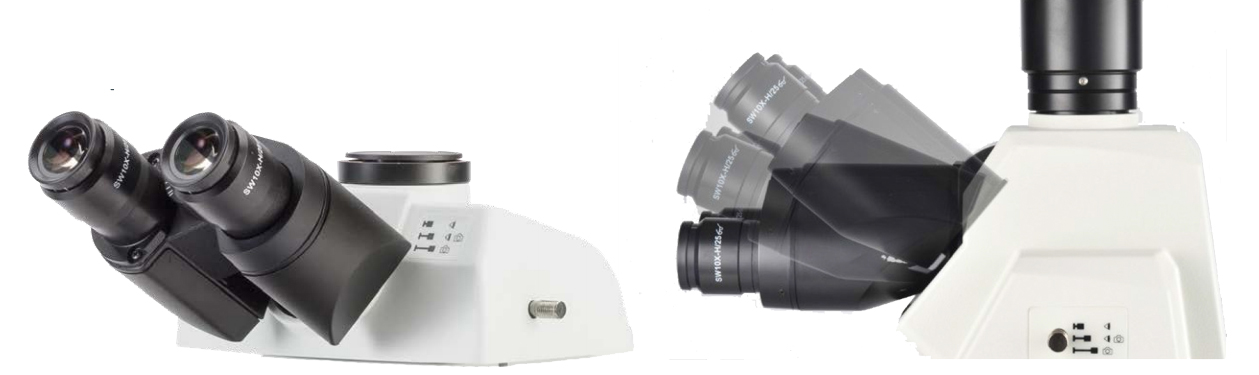

3. Viewing Head
1). Standard Head
Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces
2). Ergonomic Tilting Head
Optional ergonomic 0 to 35° tilting trinocular head supplied with SWF 10x/25 mm eyepieces, interpupillary distance between 47-78 mm and photo tube with a standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces

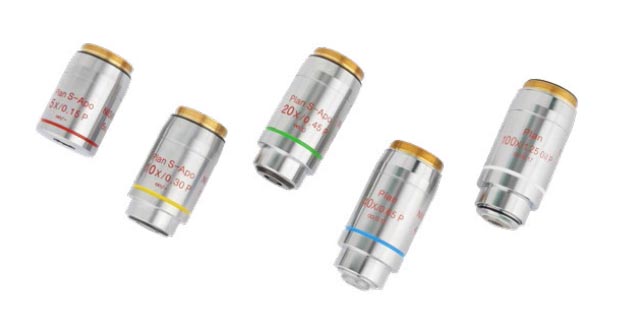

4. Objectives
• Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 5x/0.15 P, WD 20mm. Strain-free, no cover glass correction
• Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 10x/0.30 P, WD 11mm. Strain-free, no cover glass correction
• Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 20x/0.45 P, WD 3.0mm. Strain-free, no cover glass correction
• Infinity Plan Apochromatic Polarizing Objective, Apo 50x/0.80 P, WD 1mm. Strain-free, no cover glass correction
• Infinity Plan Apochromatic Polarizing Objective, Apo 100x/0.90 P, WD 1mm. Strain-free, no cover glass correction
• Infinity Plan Polarizing Objective, Plan 2x/0.06 P, WD 9mm. Strain-free, no cover glass correction
• Infinity Plan Polarizing Objective, Plan 4x/0.10 P, WD 30 mm. Strain-free, with 0.17 mm cover glass correction
• Infinity Plan Polarizing Objective, Plan 10x/0.25 P, WD 10.2mm. Strain-free, no cover glass correction
• Infinity Plan Polarizing Objective, Plan 20x/0.40 P, WD 13.36mm. Strain-free, with 0.17 mm cover glass correction
• Infinity Plan Polarizing Objective, Plan 40x/0.65 P, WD 0.7mm. Strain-free, with 0.17 mm cover glass correction
• Infinity Plan Polarizing Objective, Plan 50x/0.80 P, WD 0.3 mm. Strain-free, with 0.17 mm cover glass correction
• Infinity Plan Polarizing Objective, Plan 60x/0.95 P, WD 0.3 mm. Strain-free, with 0.17 mm cover glass correction
• Infinity Plan Polarizing Objective, Plan S100x/1.25 P, oil, WD 0.22mm, Strain-free, with 0.17mm cover glass correction
• Infinity Plan Polarizing Objective, Plan S100x/0.5-1.25 P, oil, with iris diaphragm, WD 0.2mm, Strain-free, 0.17mm cover glass correction

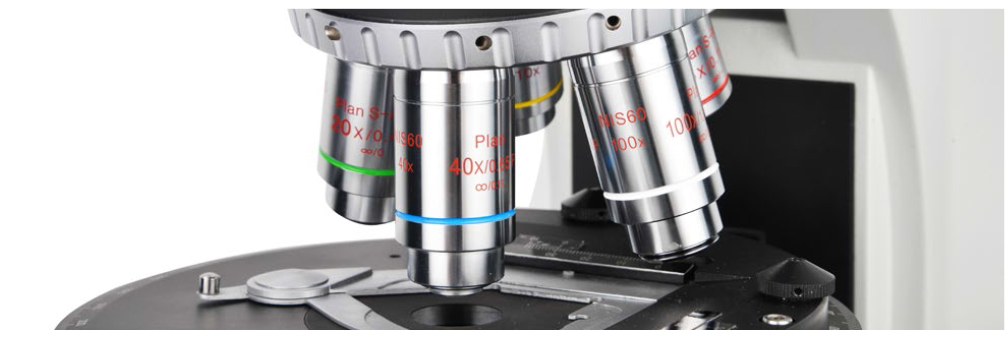

5. Nosepiece
Revolving quintuple reversed nosepiece on ball-bearings with centering screws for objectives
Sextuple nosepiece for 6 objectives / septuple nosepiece for 7 objectives are optional

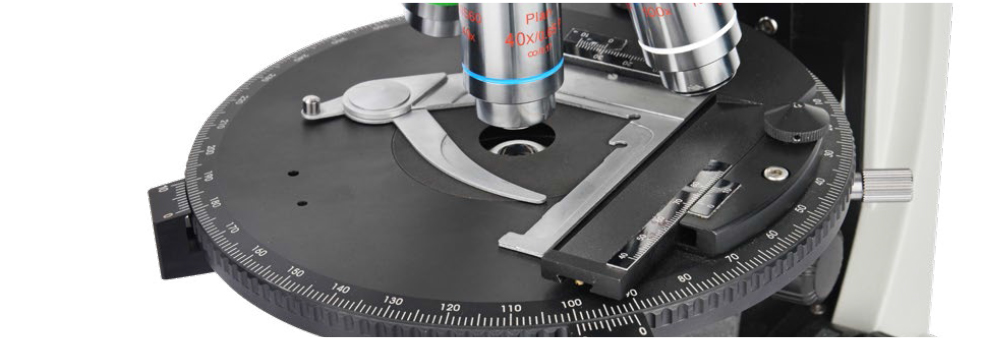

6. Stage
Diameter 190 mm circular stage. 360° Rotatable with Vernier and two object clamps and an optional 30 x 30 mm X-Y mechanical stage, click stop 45 degree for stage. Sample guide with the possibility of placing samples with dimensions of 26 x 76 mm

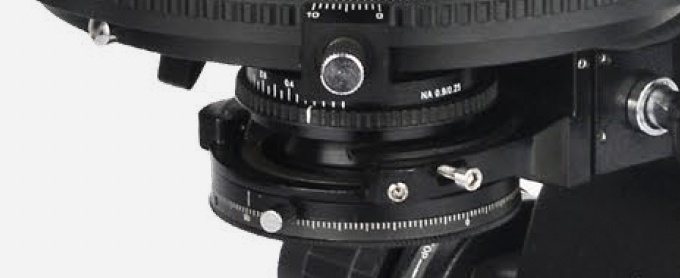

7. Condenser
Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360° rotatable polarizer

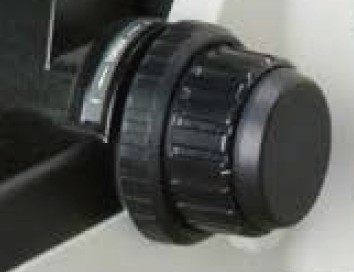

8. Focusing
Coaxial coarse and fine adjustment, 100 graduations, 1 μm precision, 100 μm per rotation, total travel range is approximately 35 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control. The focusing knobs can be switched from left to right according to the user’s preference
9. Illumination
The HemeraPL polarizing materials science microscope for polarization applications is equipped with epi and diascopic intensity adjustable 100W halogen illumination with internal 100-240 Vac power supply. The diascopic halogen illumination comes with two push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kinds of samples

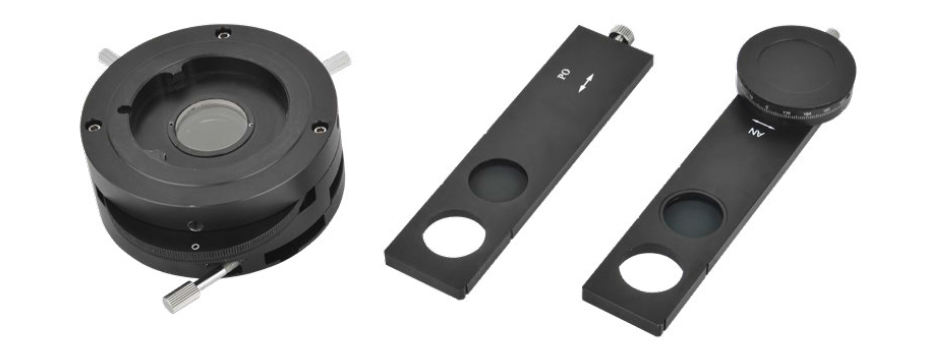

10. Polarization
Supplied with 360° rotatable polarization filter, analyzer, Bertrand lens, 1 λ first red plate, 1/4 λ retardation plate, a quartz wedge

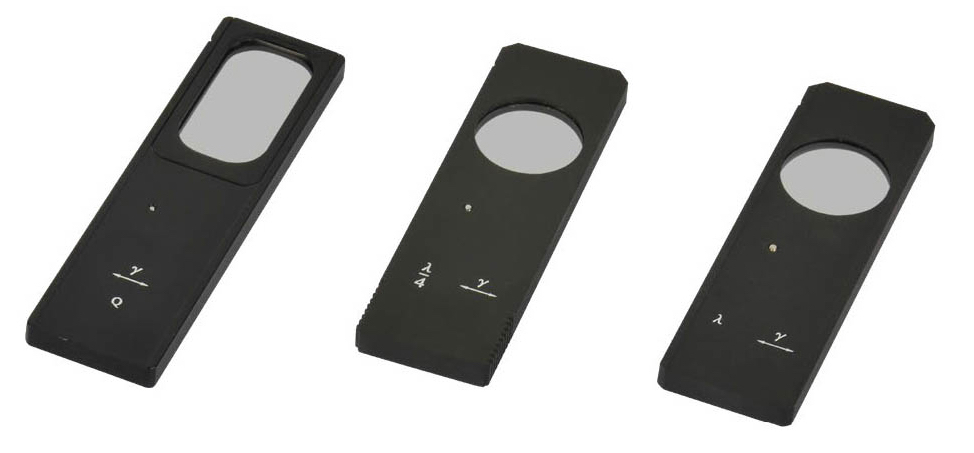

11. Compensators
A variety of optical compensators are available in HemeraPL that ehance the signal of weak birefringent materials, making them easier to see. At the same time, the compensator can also be used for qualitative measurements to determine multiple horizontal delays

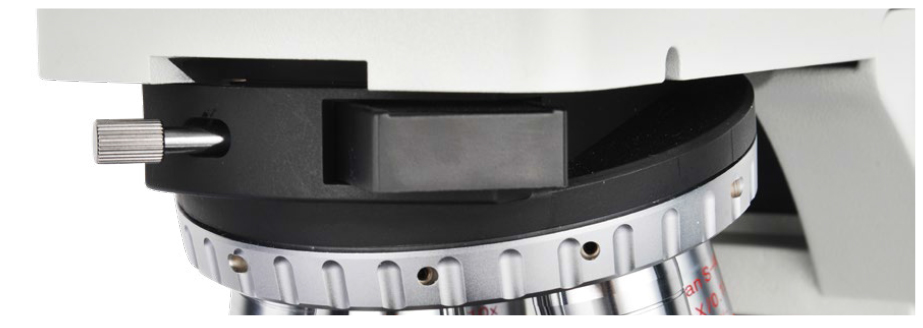

12. Compensator Slot
The HemeraPL adopts a standard compensator slot. Therefore, various compensators can be used to enhance the advanced quantitative measurement of the signal of the weak birefringent material.

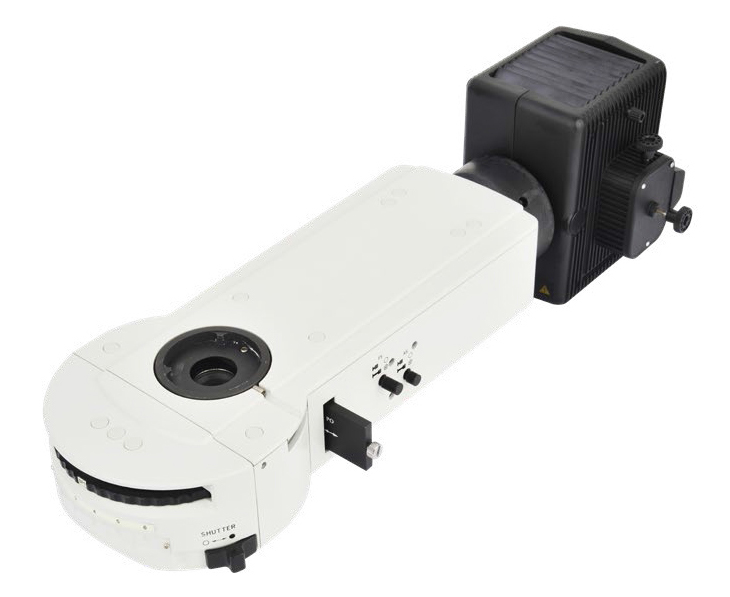

13. Reflected Attachment
Up to six observation modules can be placed in the rotating structure. Comes with brightfield and brightfield with ND filter, polarization positions

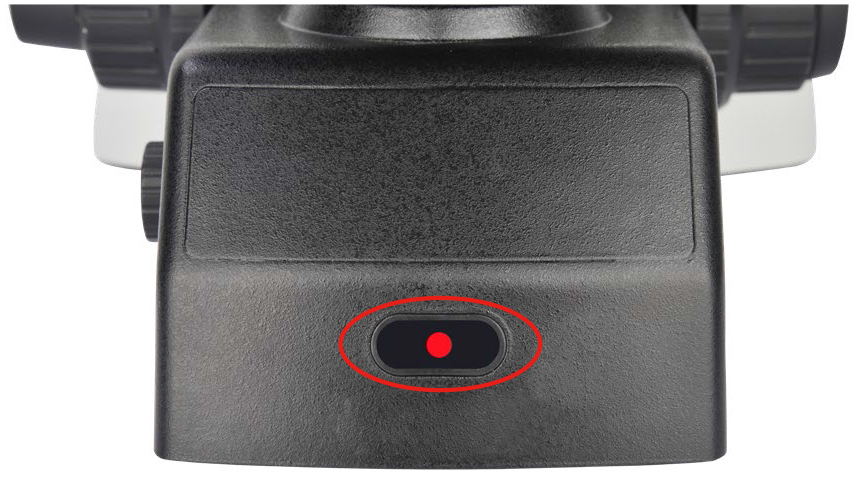

14. ECO Function
The unique ECO function is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
15. LED 10W illumination
LED 10W illumination for transmited and reflected light is optional
16. Lighting Setting
Built-in function to save lighting settings for each lens separately is optional
17. Stand button for image/video capture
Built-in microscope stand button(s) for direct image and video capture is optional
Models and Specifications
| Model | HemeraPL-T | HemeraPL-R | HemeraPL-TR | HemeraPL-ETR | |
| Optical System: | The enhanced infinity system of the HemeraPL consists of super wide field WF 10x/22 mm eyepieces, high numerical aperture parfocal objectives. This tube lens reduces the angle of the light rays passing through the optics and as a direct result significantly improves the chromatic aberration corrections and contrast. The objectives with larger diameter enable much higher numerical apertures improving the overall resolving power of the optical system | ● | ● | ● | ● |
| Viewing head: | Siedentopf trinocular with 30° inclined Ø 30mm tubes. Interpupillary distance 47-78mm, with diopter adjustment on both eyepieces, trinocular port with 3-positions beamsplitter (0:100/ 100:0/ 80:20) | ● | ● | ● | |
| Ergonomic 0 to 35° tilting trinocular head, interpupillary distance between 47-78 mm and photo tube with a standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces | ● | ||||
| Nosepiece: | Revolving sextuple reversed nosepiece on ball bearings | ● | ● | ● | ● |
| Eyepiece: | Extra wide field EW10x/22mm eyepiece, Ø30mm tube with diopter adjustement | ● | ● | ● | ● |
| Extra wide field EW10x/22mm eyepiece with cross-hair, Ø30mm tube | ● | ● | ● | ● | |
| Super wide field SW10x/25 mm eyepiece, Ø30mm tube | ○ | ○ | ○ | ○ | |
| Super wide field SW10x/25 mm eyepiece with cross-hair, Ø30mm tube | ○ | ○ | ○ | ○ | |
| Wide field WF 12.5x/17.5mm eyepiece, Ø30mm tube | ○ | ○ | ○ | ○ | |
| Wide field WF 15x/16mm eyepiece, Ø30mm tube | ○ | ○ | ○ | ○ | |
| Wide field WF 20x/12mm eyepiece, Ø30mm tube | ○ | ○ | ○ | ○ | |
| Reticle plate | ○ | ○ | ○ | ○ | |
| Short eyecup for eyepiece (a pair) | ○ | ○ | ○ | ○ | |
| Long eyecup for eyepiece (a pair) | ○ | ○ | ○ | ○ | |
| Objectives: | Infinity Plan Polarizing Objective, Plan 2x/0.06 P, WD 9mm. Strain-free, no cover glass correction | ○ | |||
| Infinity Plan Polarizing Objective, Plan 4x/0.10 P, WD 30 mm. Strain-free, with 0.17 mm cover glass correction | ● | ||||
| Infinity Plan Polarizing Objective, Plan 10x/0.25 P, WD 10.2mm. Strain-free, no cover glass correction | ● | ||||
| Infinity Plan Polarizing Objective, Plan 20x/0.40 P, WD 13.36mm. Strain-free, with 0.17 mm cover glass correction | ● | ||||
| Infinity Plan Polarizing Objective, Plan 40x/0.65 P, WD 0.7mm. Strain-free, with 0.17 mm cover glass correction | ● | ||||
| Infinity Plan Polarizing Objective, Plan 50x/0.80 P, WD 0.3 mm. Strain-free, with 0.17 mm cover glass correction | ○ | ||||
| Infinity Plan Polarizing Objective, Plan 60x/0.95 P, WD 0.3 mm. Strain-free, with 0.17 mm cover glass correction | ○ | ||||
| Infinity Plan Polarizing Objective, Plan S100x/1.25 P, oil-immersion, WD 0.22mm, Strain-free, with 0.17 mm cover glass correction | ● | ||||
| Infinity Plan Polarizing Objective, Plan S100x/0.5-1.25 P, oil, with iris diaphragm, WD 0.2mm, Strain-free, 0.17mm cover glass correction | ○ | ||||
| Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 5x/0.15 P, WD 20mm. Strain-free, no cover glass correction | ● | ● | ● | ||
| Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 10x/0.30 P, WD 11mm. Strain-free, no cover glass correction | ● | ● | ● | ||
| Infinity Plan Semi-apochromatic Polarizing Objective, S-Apo 20x/0.45 P, WD 3.0mm. Strain-free, no cover glass correction | ● | ● | ● | ||
| Infinity Plan Apochromatic Polarizing Objective, Apo 50x/0.80 P, WD 1mm. Strain-free, no cover glass correction | ● | ● | ● | ||
| Infinity Plan Apochromatic Polarizing Objective, Apo 100x/0.90 P, WD 1mm. Strain-free, no cover glass correction | ● | ● | ● | ||
| All optics are anti-fungus treated and anti-reflection coated for maximum light throughput | ● | ● | ● | ● | |
| Polarization attachment: | Polarization attachment with Bertrand lens, lambda, 1/4 lambda and quartz wedge compensators in slider. | ● | ● | ● | ● |
| Epi-illuiminator attachment: | Up to six observation modules can be placed in the rotating structure. Comes with brightfield and brightfield with ND filter positions | ● | ● | ● | ● |
| Stage: | Diameter 190 mm circular stage. 360° Rotatable with Vernier and two object clamps and an optional 30 x 30 mm X-Y mechanical stage | ● | ● | ● | ● |
| Focusing: | Coaxial coarse and fine adjustments with 100 graduations. Precision 1 μm, 0.1 mm per rotation. Total travel approximately 35mm, Rack-stop for protection of slides and objectives. Friction adjustment | ● | ● | ● | ● |
| Condenser: | Strain-Free Swing Condenser NA0.9/0.25 | ● | ● | ● | ● |
| Transmitted Illuminatior: | The HemeraPL materials science microscope for polarization applications is equipped with epi and diascopic intensity adjustable 100 W halogen illumination with internal 100-240Vac power supply. The diascopic halogen illumination comes with two push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kinds of samples | ● | ● | ● | |
| Reflected Illuminatior: | Reflected 100 W 24V halogen adjustable epi-illumination with 2 built-in neutral density filters and internal 100-240V power supply | ● | ● | ● | |
| Others: | Carrying grip at the back of the microscope for safe transportation and Allen screwdriver in integrated holder | ● | ● | ● | ● |
| Supplied with: | Power cord, dust cover and user manual, all packed in carton shipment box | ● | ● | ● | ● |
| C mount | 1x/0.5x/0.63x C-mount adapter for digital camera | ○ | ○ | ○ | ○ |
| Optional Accessories | DIC Kit | ○ | ○ | ○ | ○ |
| Fluorescent Kit | ○ | ○ | ○ | ○ | |
| Dark field Kit | ○ | ○ | ○ | ○ | |

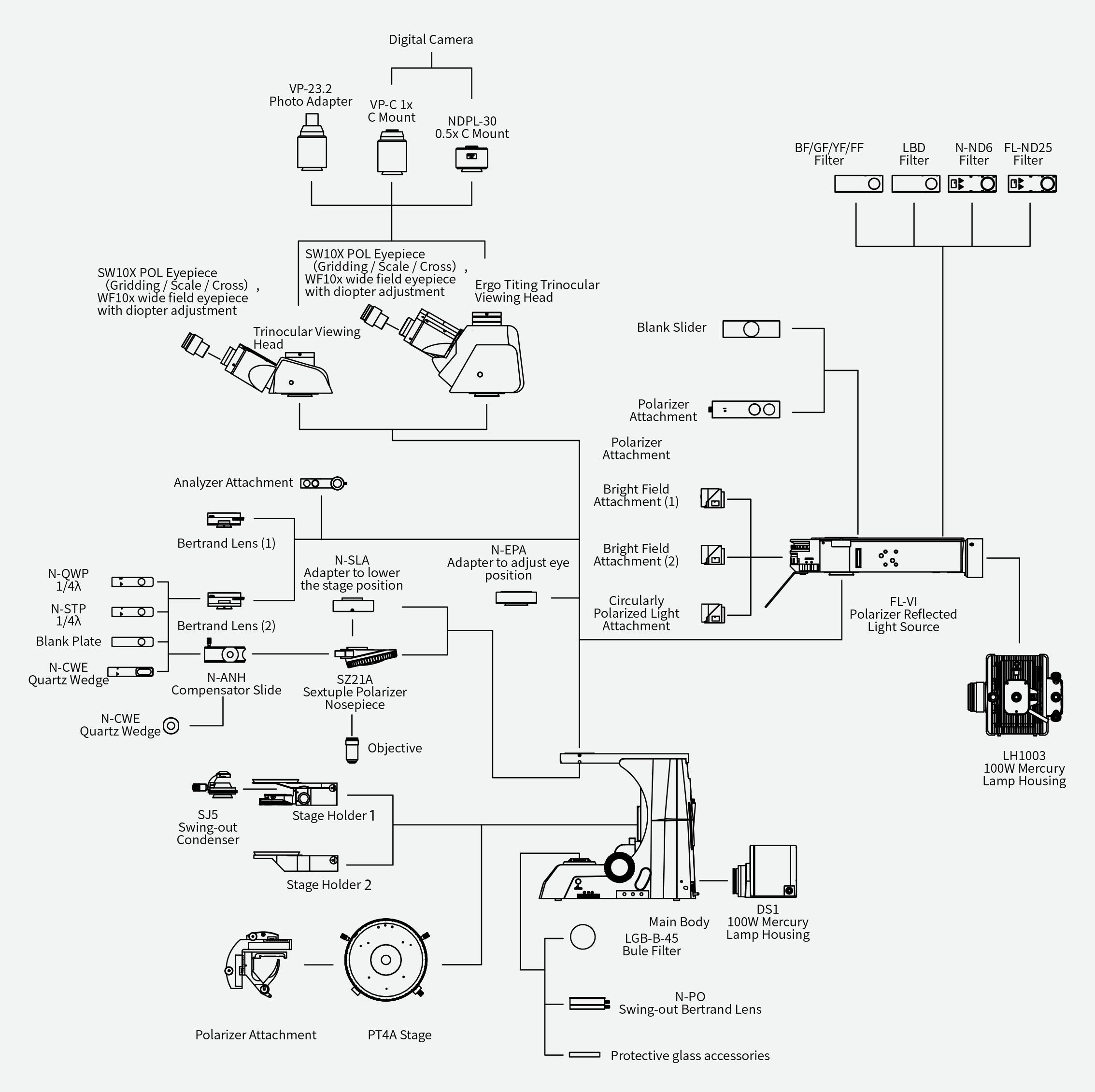

Product System Chart

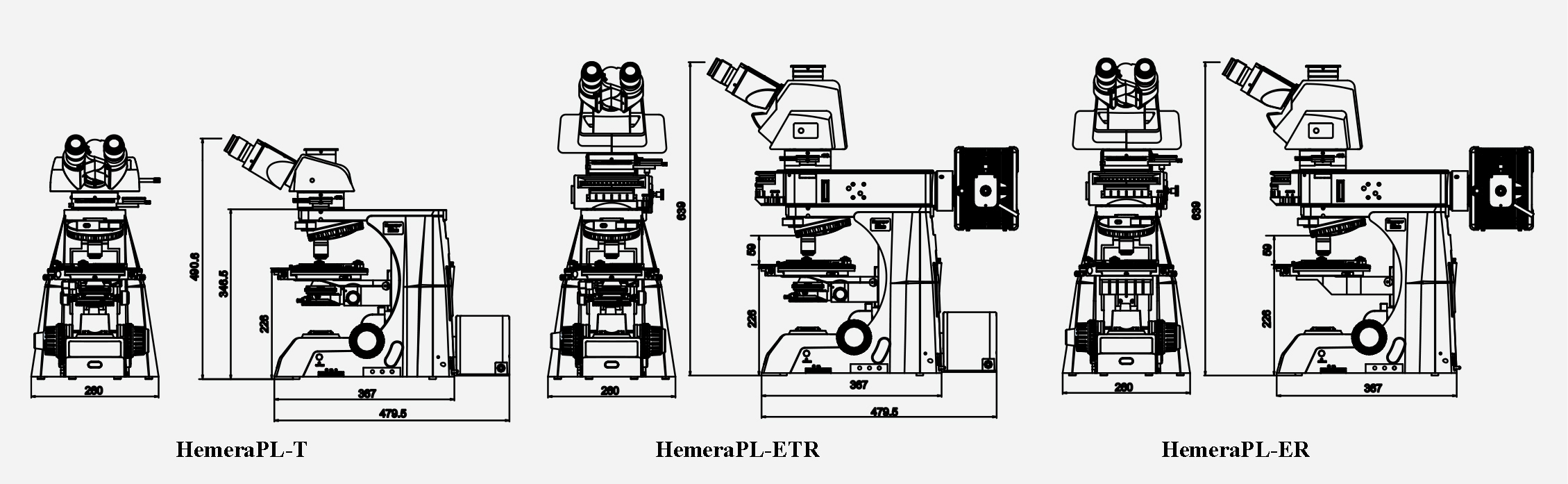

Product Dimensions
