Description
Brief Introduction

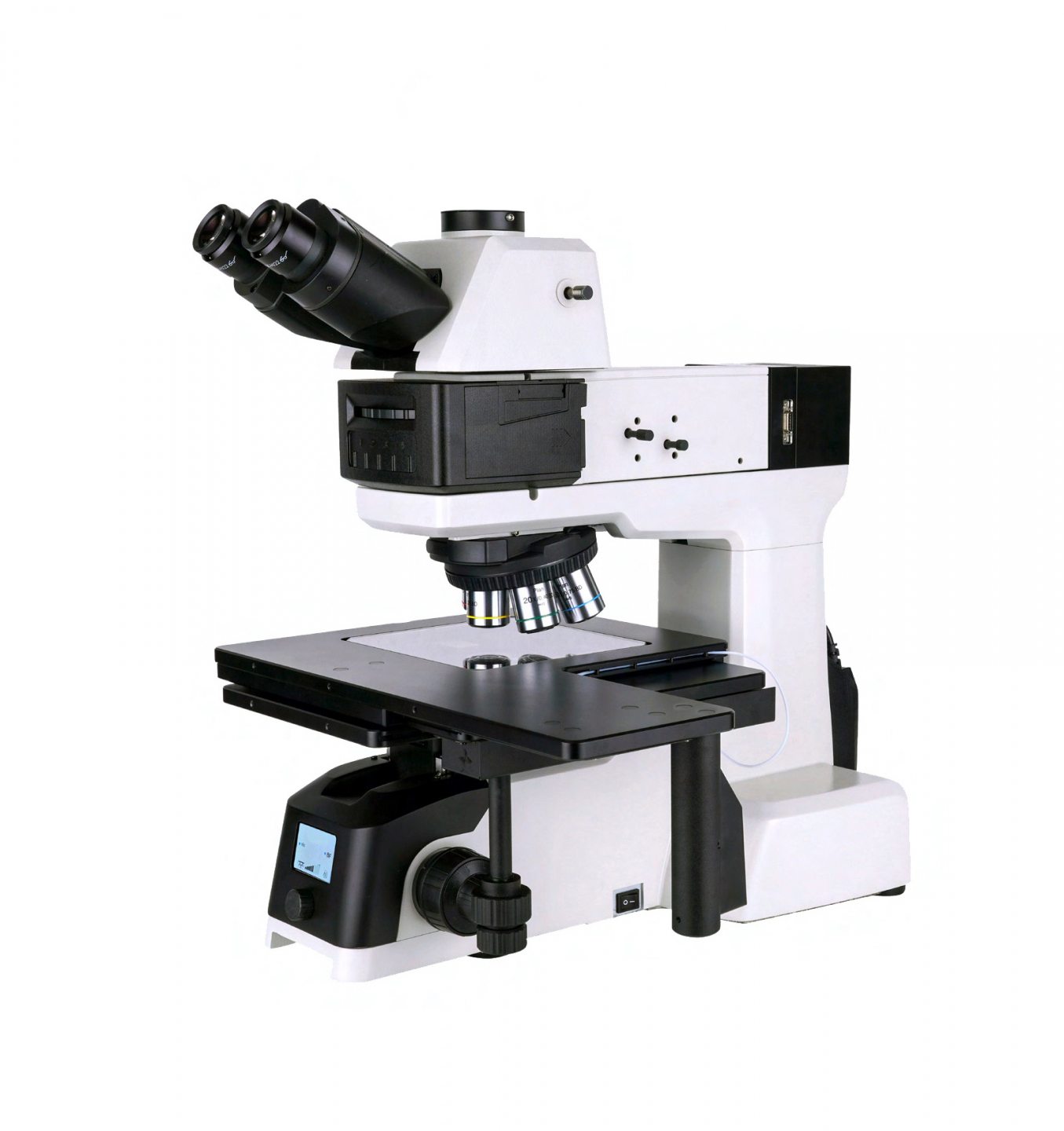

HEX06 Series Metallurgical Microscopes is designed for Material Science Research, with 6″ Stage, can be used to detect various types: semiconductor wafers, printed circuit boards, LCD liquid crystal displays, OLED flexible displays, mobile phone screens, PAD screens, various thin film materials, metal materials, rock mineral materials, etc.
The suitable stage size

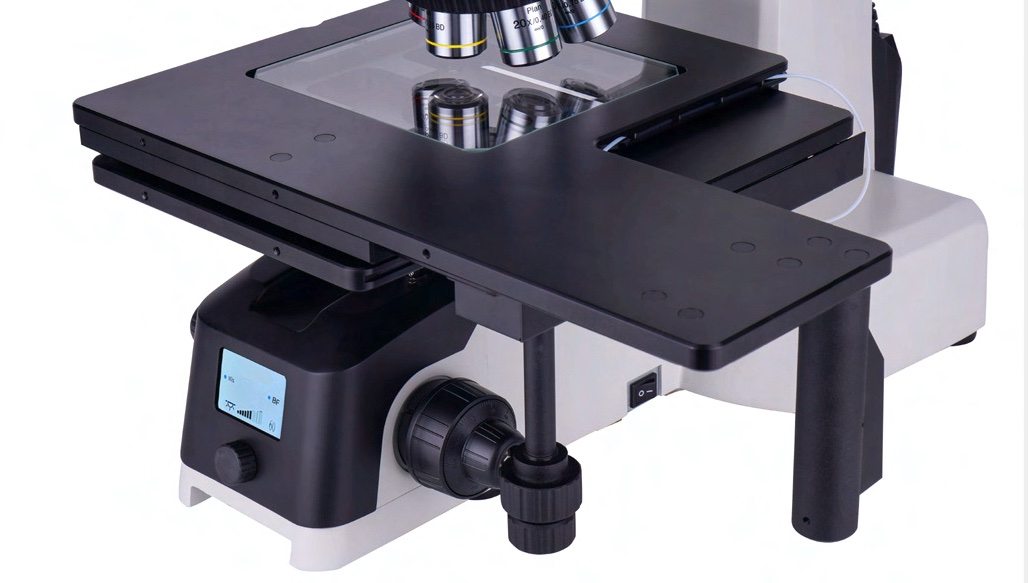

HEX06 are equipped with 6-inch platform respectively. A wide variety of stage plug-ins are available for you to choose from. They are suitable for wafers of 200mm and below and larger FPD samples. It also comes standard with a fine-tuning handle and a mobile handle with a built-in clutch to facilitate quick positioning of samples.
Provide true color imaging

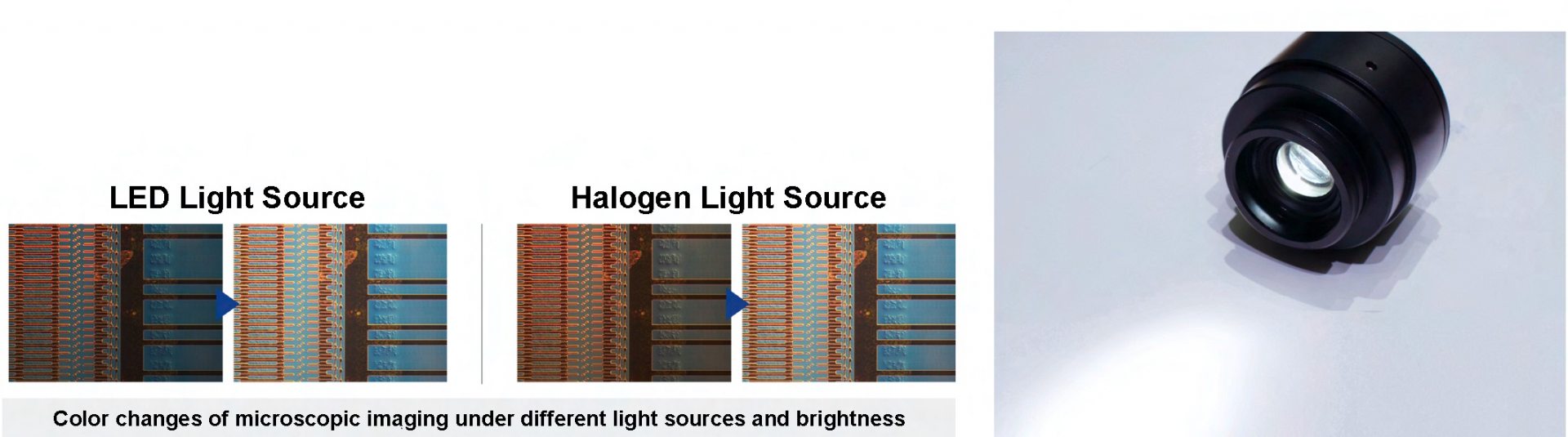

The HEX series is all equipped with an optional LED light source. LED lighting provides a constant color temperature and true color imaging at all brightness levels. In addition, LED has a long service life, low power consumption, and is easy to maintain in the future. It is an ideal microscope light source.
Brightness memory function

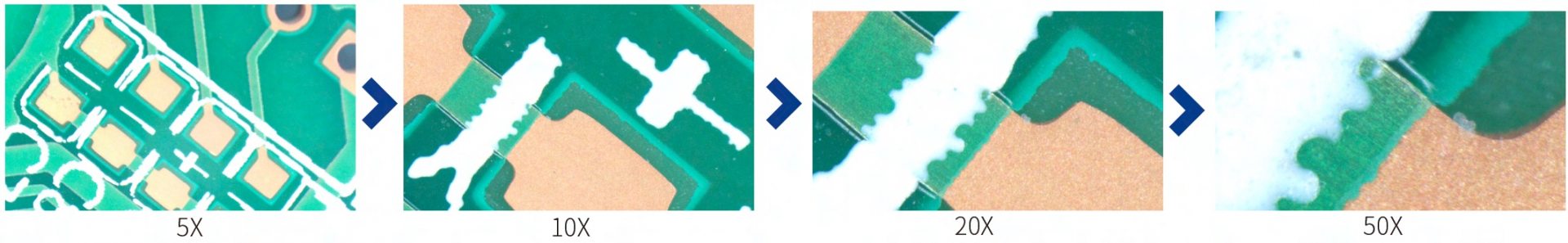

It can memorize the illumination brightness when using each objective lens. When different objective lenses are converted to each other, the light intensity is automatically adjusted to reduce visual fatigue and improve work efficiency.
Microscope status display function

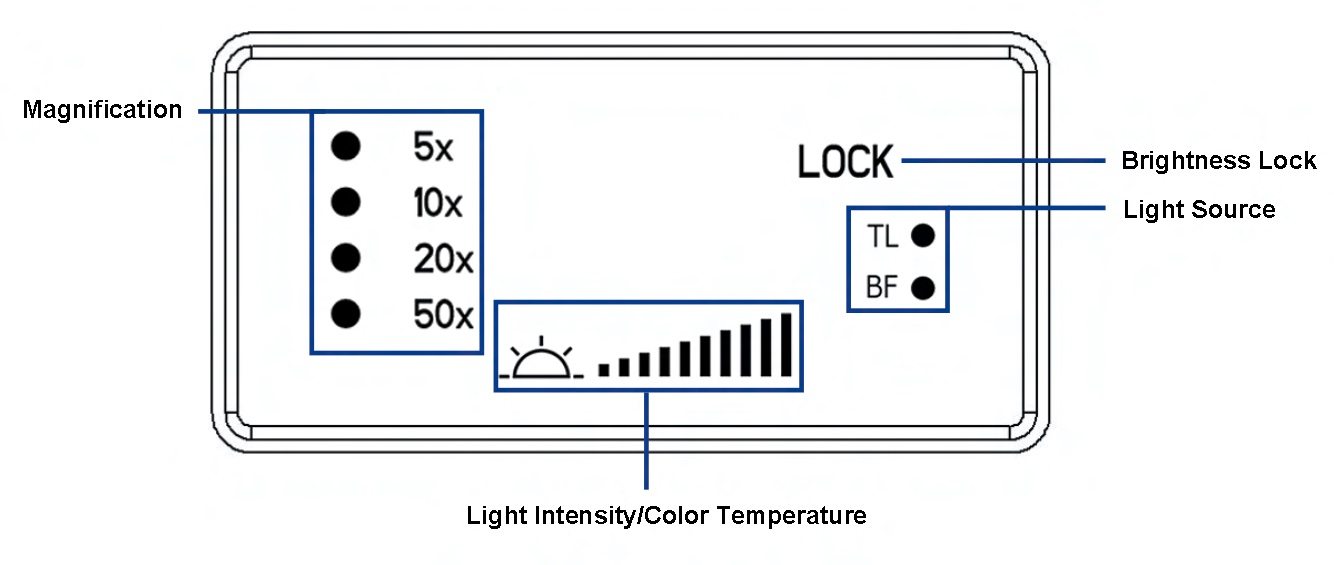

The LCD screen at the front of the microscope can display the usage status of the microscope, including magnification, light intensity, color temperature, light source status, etc.
Break through the conventional light source conversion mode
Both the transmitted light source and the reflected light source are linked to the multi-function dial. Compared with the conventional push-button switching button, the light source rotates
Specifications
| Model | HEX06 | |
| Optical System | Infinity Corrected Optical System | ● |
| Viewing Head | Trinocular head with Siedentopf 30° inclined Ø 30 mm tubes. Interpupillary distance 47-78 mm with diopter adjustment on both eyepieces, 2-position beamsplitter (0:100/ 100:0) | ● |
| Eyepiece | SWF 10x/22mm eyepieces | ● |
| Nosepiece | Sextuple reversed coded nosepiece on ball bearings, The nosepiece has incorporated slot for a range of sliders such as Nomarski DIC or Polarization. | ● |
| Objective | All optics are anti-fungus treated and anti-reflection coated for maximum light throughput | ● |
| Infinite Plan Achromatic Objective 5×/ 0.12/ ∞/ – (BF) WD 15.5mm, | ● | |
| Infinite Plan Achromatic Objective 10×/ 0.25/ ∞/ – (BF/DF) WD 10.0mm, | ● | |
| Infinite Plan Achromatic Objective 20×/ 0.4/ ∞/ 0 (BF/DF) WD 4.3mm, | ● | |
| Infinite Plan Achromatic Objective 50×/ 0.75/ ∞/ 0 (BF/DF) WD 0.32mm, | ● | |
| Stage | 310mmx310mm stage equipped with integrated 160x160mm mechanical stage and scratch-resistant Gorilla glass | ● |
| Condenser | Height adjustable Abbe swing-out N.A. 0,65 condenser with numerical aperture engravings. Working distance 10.2 mm | ● |
| Focusing | Coaxial coarse and fine adjustments with 100 graduations. Precision 1 μm, 0.1 mm per rotation. Total travel approximately 32 mm, rack-stop for protection of slides and objectives. Friction adjustable | ● |
| Transmitted Illumination | Koehler illumiantor 3W LED adjustable transimitted light with intensity control, remember the brightness of preset objective magnifiations | ● |
| Reflected Illumination | Metallurgical Epi-Illuminator with Brightfield BF & dark field DF positions. With coded reflected lamp house, 3W LED, adjustable color temperature, Kolar illumination, with field diaphragm, aperture diaphragm, center adjustable, with oblique illumination device, bright field illumination, | ● |
| LCD Screen | The LCD screen on the front of the microscope displays the use status of the microscope, including magnification, light intensity, standby status, lock etc, RL & TL status | ● |
| Others | Dust cover and user manual & allen keys are included | ● |
| Power | 110V/220V, 50/60Hz | ● |

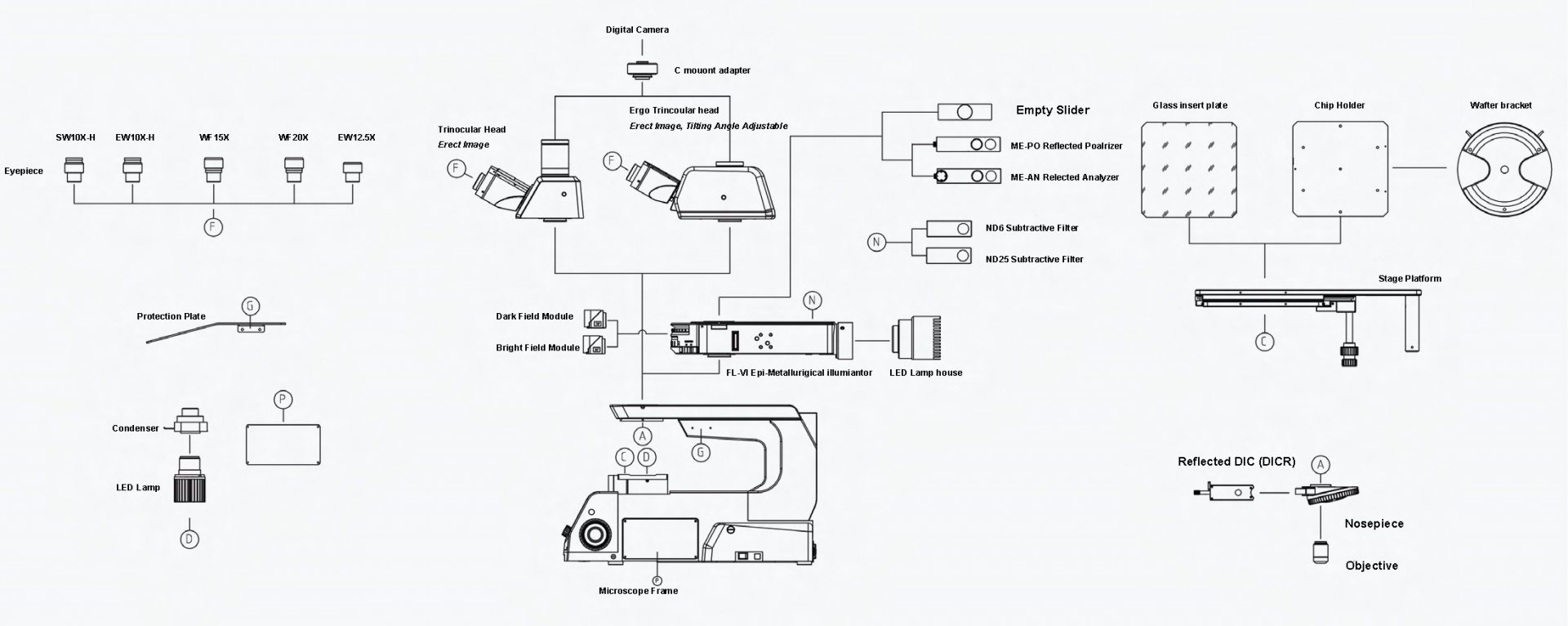

HEX06 System Digram
