Description
Descriptions

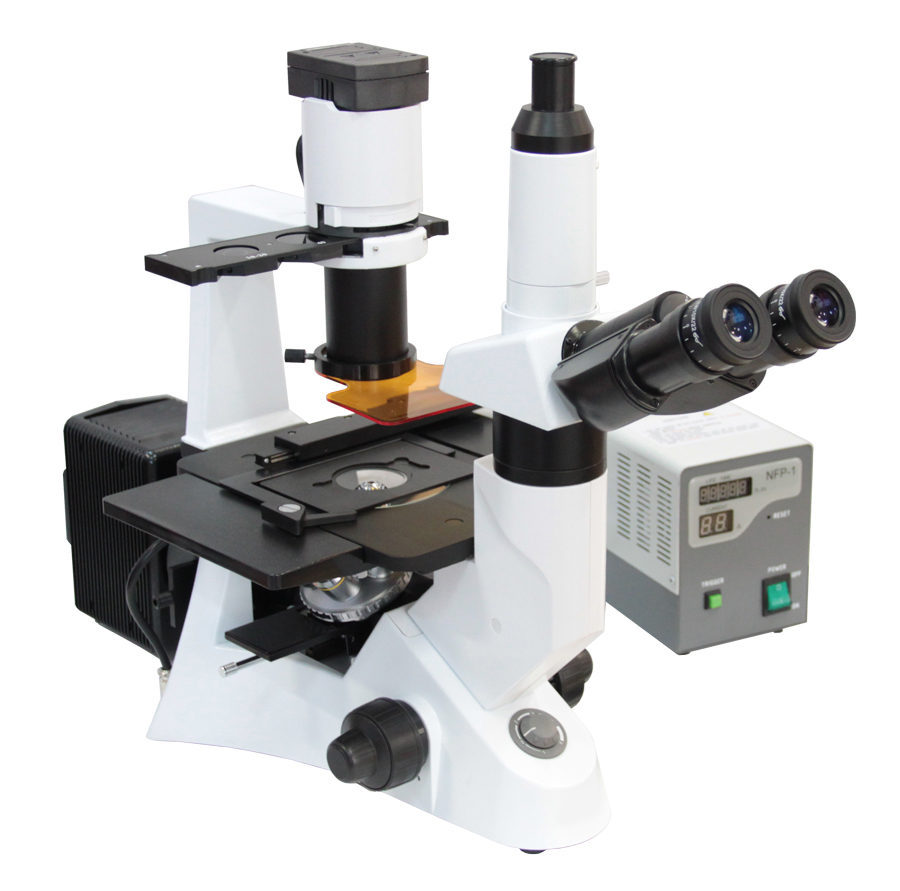

IV5100FL Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture. It is widely used in disease examination, immune diagnosis and laboratory research.
- • Excellent fluorescent image with high resolution fluorescent objectives
- • Protect the light leak with advanced lamp housing
- • Excellent Optical Function with Infinitive Optical System
- • Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue
- • Widely used in venereal disease examination and immuneless diagnosis

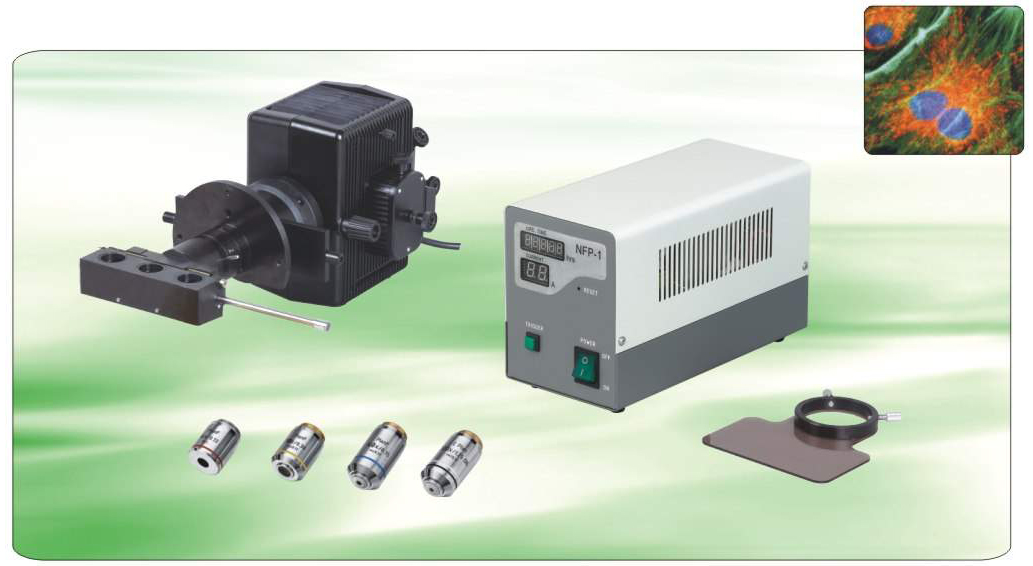

Fluorescent Attachment FL-100
| Model | FL-100 | ||||

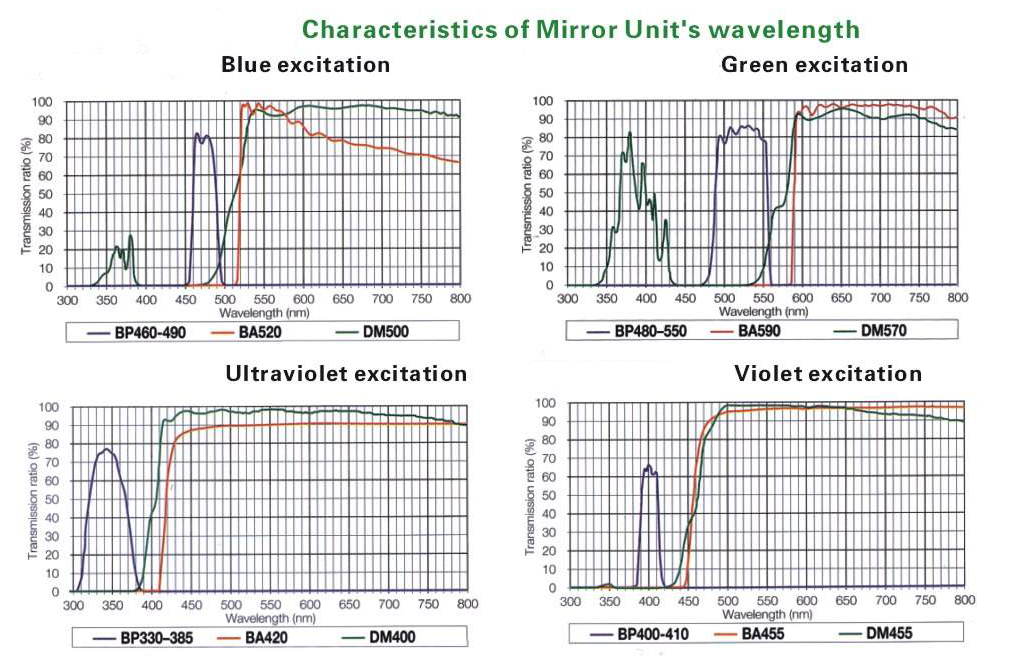

| Reflected light Source | Excitation units | Excitation | Dichroic mirror | Barrier filter | |
| Blue Excitatio | BP460～490 | DM500 | BA520 | ● | |
| Green Excitation | BP510～550 | DM570 | BA590 | ● | |
| Ultraviolet Excitation | BP330～385 | DM400 | BA420 | ○ | |
| Violet Excitation | BP400～410 | DM455 | BA455 | ○ | |
| Illumination | 100WHBO ultra Hi-voltage spherical mercury lamp | ● | |||
| Power | Power supplier NFP-1，220V/110V interchangeable, digital display | ● | |||
| Protection barrier | Barrier to resist the ultraviolet light | ● | |||
| Infinite Plan Fluorescent Objective | 4×/0.13, WD 16.3mm | ○ | |||
| 10×/0.3, WD 12.4mm | ○ | ||||
| 20×/0.4, WD 1.5mm | ○ | ||||
| 40×/0.6, WD 2.2mm | ○ | ||||
| Immersion Oil | Fluorescent Free Oil | ● | |||
| Neutral Filter | ND25 filter | ○ | |||
| ND6 filter | ○ | ||||
| Centering Plate | ○ | ||||
| “●”=Included with delivery “○”=Option | |||||
Specifications
Model: IV5100FL
- • Viewing head: Trinocular Head Inclined at 30°, Interpupillary Distance 48-75mm
- • Nosepiece: 5 positions, with bidirectional rotation on ball bearings and click stop
- • Eyepiece: High-point, Extra Wide Field Eyepiece EW10×/22mm
- • LWD (Long working Distance) Infinite Plan Objective 4×/0.1, WD 17.3mm
- • Infinite Plan Phase Objective PH10×/0.25, WD10mm
- • Infinite Plan Phase Objective PH20×/0.4, LWD5.1mm
- • LWD (Long working Distance) Infinite Plan Objective 40×/0.6, WD 2.1mm
- • Stage: Plain Stage 160×250mm, Glass Insert, Auxiliary Stages70×180mm
- • Focusing: Coaxial Coarse and Fine Adjustment, Vertical Objective Movement,
- Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation
- • Condenser: Long working distance condenser, numerical aperture 0.30, working distance 72 mm.
- The condenser can be removed in order to increase the working distance to 150 mm
- • Centering: Centering Telescope (Φ30MM)

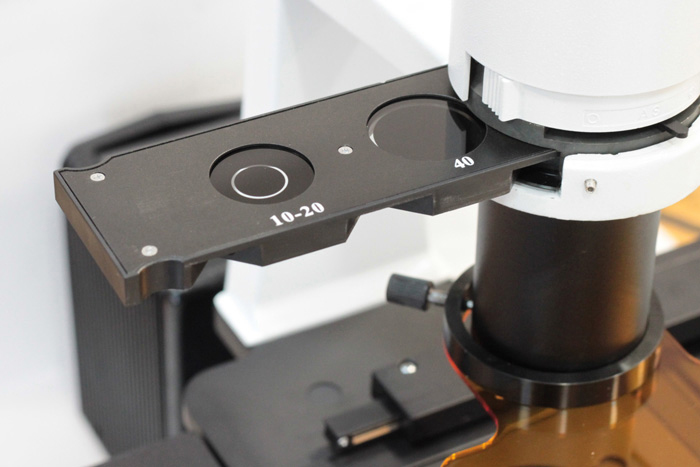

- • Phase Annulus: 10×-20×, 40× Phase Annulus Plate (Fixed)
- • Illumination: Halogen Lamp 6V/30W
- • Supplied with: Dust cover, spare fuse, Diameter 45mm, Blue, Green and Ground Glass
- • FL-100 Epi-fluorescent Attachment
Options
| Cat. Number | Descriptions | Picture |
| M13201001 | Ergonomic Titable Binocular head 5~35° (white) | |
| M13201002 | Ergonomic Titable Binocular head 5~35° (white) with Trinocular adapter | |
| M13201003 | LWD (Long working Distance) Infinite Plan Objective 10×/0.25, WD 10mm | |
| M13201004 | LWD (Long working Distance) Infinite Plan Objective 20×/0.4, WD 5.1mm | |
| M13201005 | Infinite Plan Phase Objective PH40×/0.65, LWD2.1mm | |
| M13201006 | Phase Annulus: 10×-20×, 40× Phase Annulus Plate (Adjustable) | |
| M13201007 | Stage: Attachable Mechanical Stage 250x230mm, Translator with lowered ergonomic coaxial controls. X-Y 120×78mm. | |
| M13201008 | Interchangeable metallic inserts holder for Terasaki | |
| M13201009 | Interchangeable metallic inserts holder for Φ35mm Petri Dish | |
| M13201010 | Interchangeable metallic inserts holder for Φ54mm Slide Glass | |
| M13201011 | 3W LED illumination, Brightness Adjustable | |
| M13201012 | Ultraviolet Excitation Cube, Excitation: BP330～385, Dichroic Mirror: DM400, Barrier Filter: BA420 | |
| M13201013 | Violet Excitation Cube, Excitation: BP400～410, Dichroic Mirror: DM455, Barrier Filter: BA455 | |
| M13201014 | Infinite Plan Fluorescent Objective 4/0.13, WD 16.3mm | |
| M13201015 | Infinite Plan Fluorescent Objective 10x/0.3, WD 12.4mm | |
| M13201016 | Infinite Plan Fluorescent Objective 20x/0.4, WD 1.5mm | |
| M13201017 | Infinite Plan Fluorescent Objective 40x/0.6, WD 2.2mm | |
| M13201018 | Neutral Filter: ND25 Filter | |
| M13201019 | Neutral Filter: ND6 Filter | |
| M13201020 | Centering Plate | |
| M13201021 | 1X C mount | |
| M13201022 | 0.5X C mount |
