Description
Descriptions

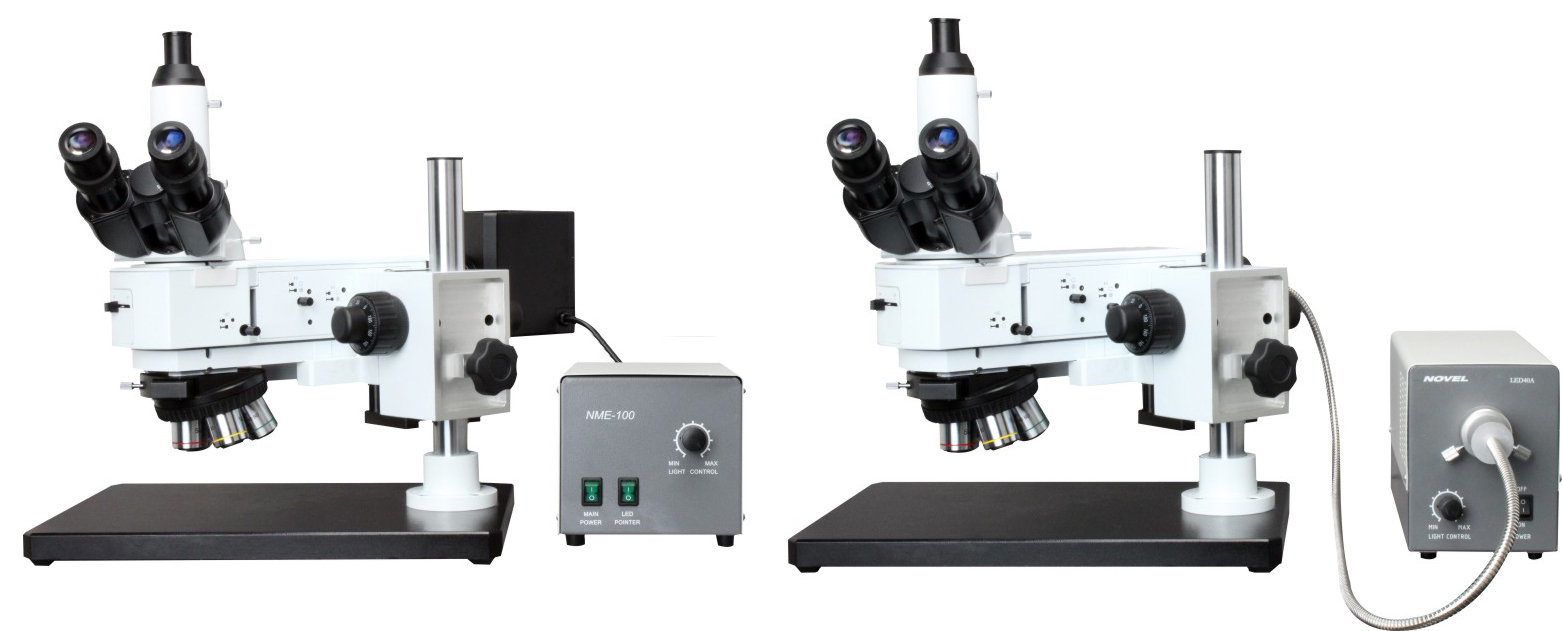

MFM Series is a compact and versatile detecting microscope system. Bright field, dark field, polarization and DIC is available. Various illuminations: 150W halogen and 40W LED cold light, connected by fiber.
–
• LWD BF/DF metallurgical objectives, Dark field, DIC Observation
–
Product Specifications
| Model | MFM-B | MFM-BD |
| Optical | Infinite Optical System | |
| Eyepeice | Extra wide field eyepeice EX10X/22 Φ30 | |
| Objectives |
Infinite Plan Achromatic Objective — 5X/0.12/∞/-(BF) LWD 15.5mm 10X/0.25/∞/-( BF) LWD 10mm 20X/0.4/∞/0(BF) LWD 5.8mm 50X/0.75/∞/0(BF) LWD 0.32mm 100X/0.8/∞/0(BF) LWD 2mm |
Infinite Plan Achromatic Objective — 5X/0.12/∞/-( BF/DF) LWD 12mm 10X/0.25/∞/-( BF/DF) LWD 10mm 20X/0.4/∞/0(BF/DF) LWD 4.3mm 50X/0.75/∞/0(BF/DF) LWD 0.32mm 100X/0.8/∞/0(BF/DF) LWD 2mm |
| Viewing Head | Siedentopf trinocular viewing head,inclined at 30° interpupillary 48-75mm | |
| Incident Light | 24V/100W Halogen light,Lightness adjustable | |
| Blue,Green,Yellow and Ground glass | ||
| Focusing | Coaxial coarse and fine adjustment,fine division 1μm,moving range 32mm | |
| Nosepiece | Backward qunituple nosepiece | |
| Stand | Size of the soleplate 396X276X22mm，The height of post 300mm，The diameter of post 30mm | |
–
Options
| Cat No. | Descriptions | Picture |
| M40401001 | DIC 20X/100X | |
| M40401002 | 150W Cold light, Lightness adjustable | |
| M40401003 | 40WLED Cold light, Lightness adjustable | |
| M40401004 | Polarizer and analyzer | |
| M40401005 | C Mount 0.5X | |
| M40401006 | C Mount 1X |

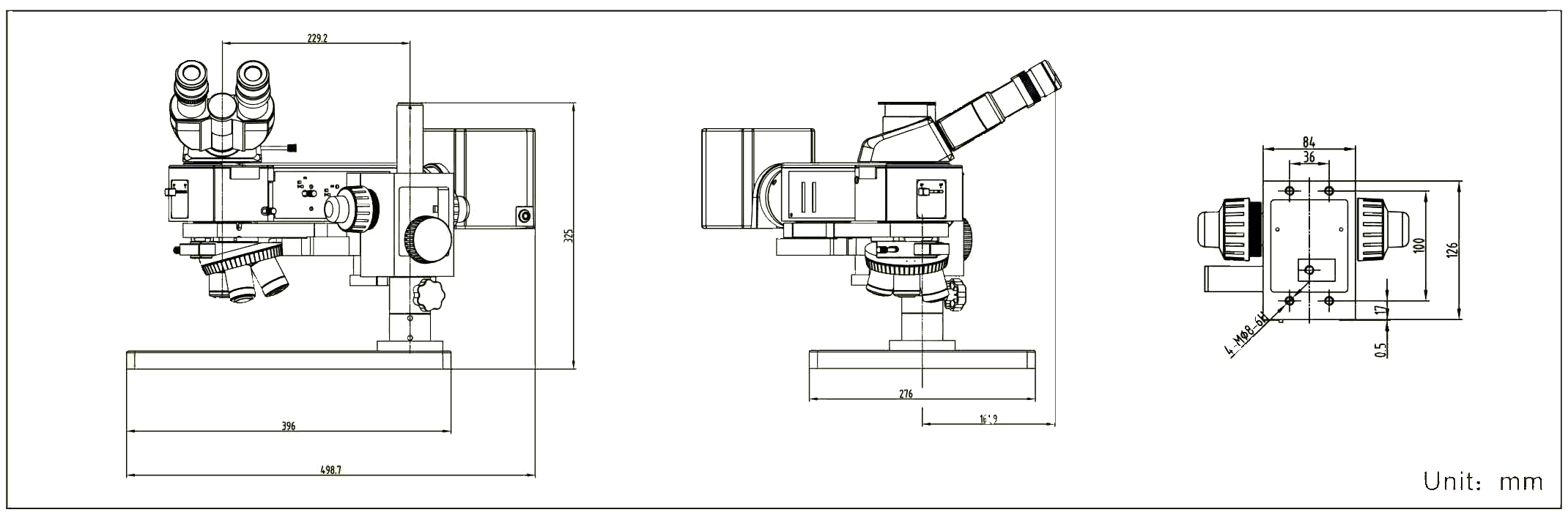

Product Dimensions
