Description
Descriptions

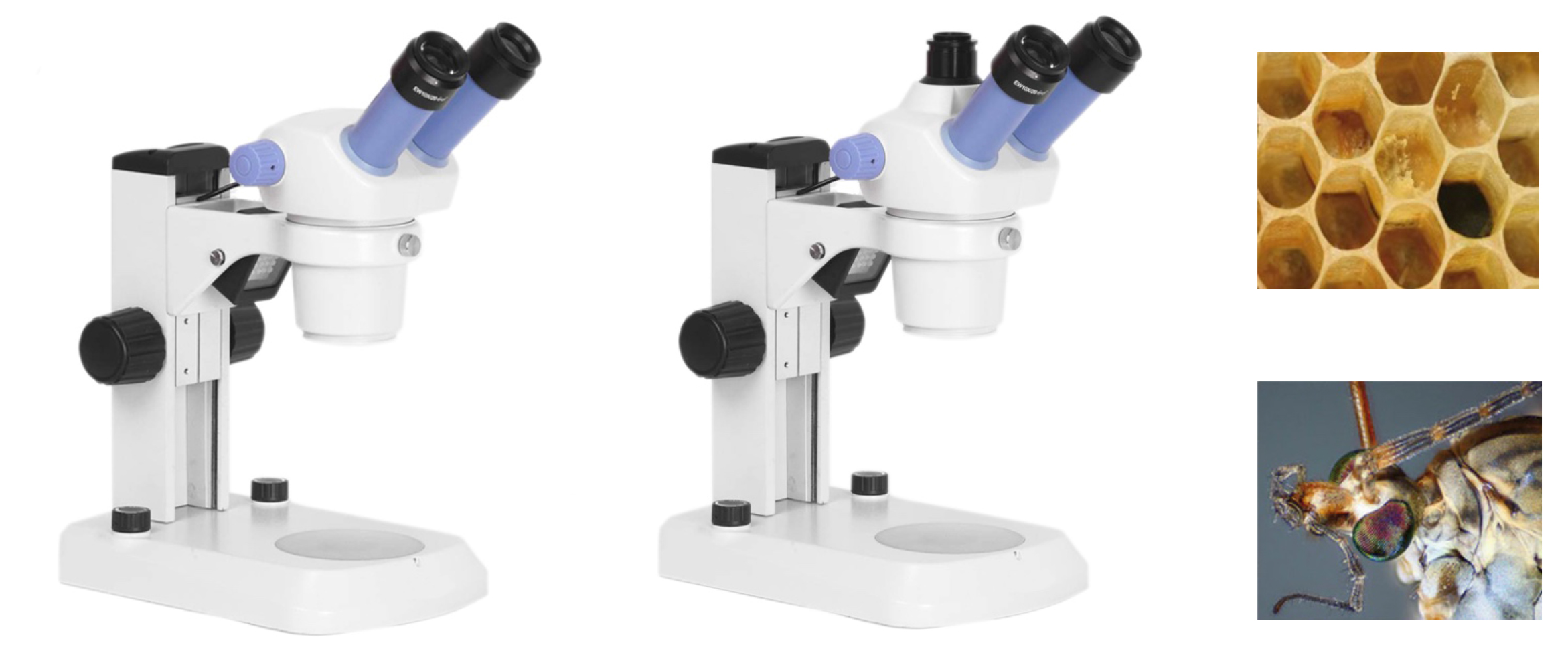

The NS45 is a high quality, entry-level stereo microscope, designed to provide outstanding value without compromising performance. The NS45 is the ideal solution for routine life science and industrial applications, or for educational use, with a robust design and a range of stand and magnification options.
- • High quality, entry-level stereo zoom microscope
- • 10x-45x stereo zoom magnification (max. 180x)
- • Wide range of stand options and configurations
- • Quality optical performance, without compromise
- • With standard x1.0 objective
Product Details

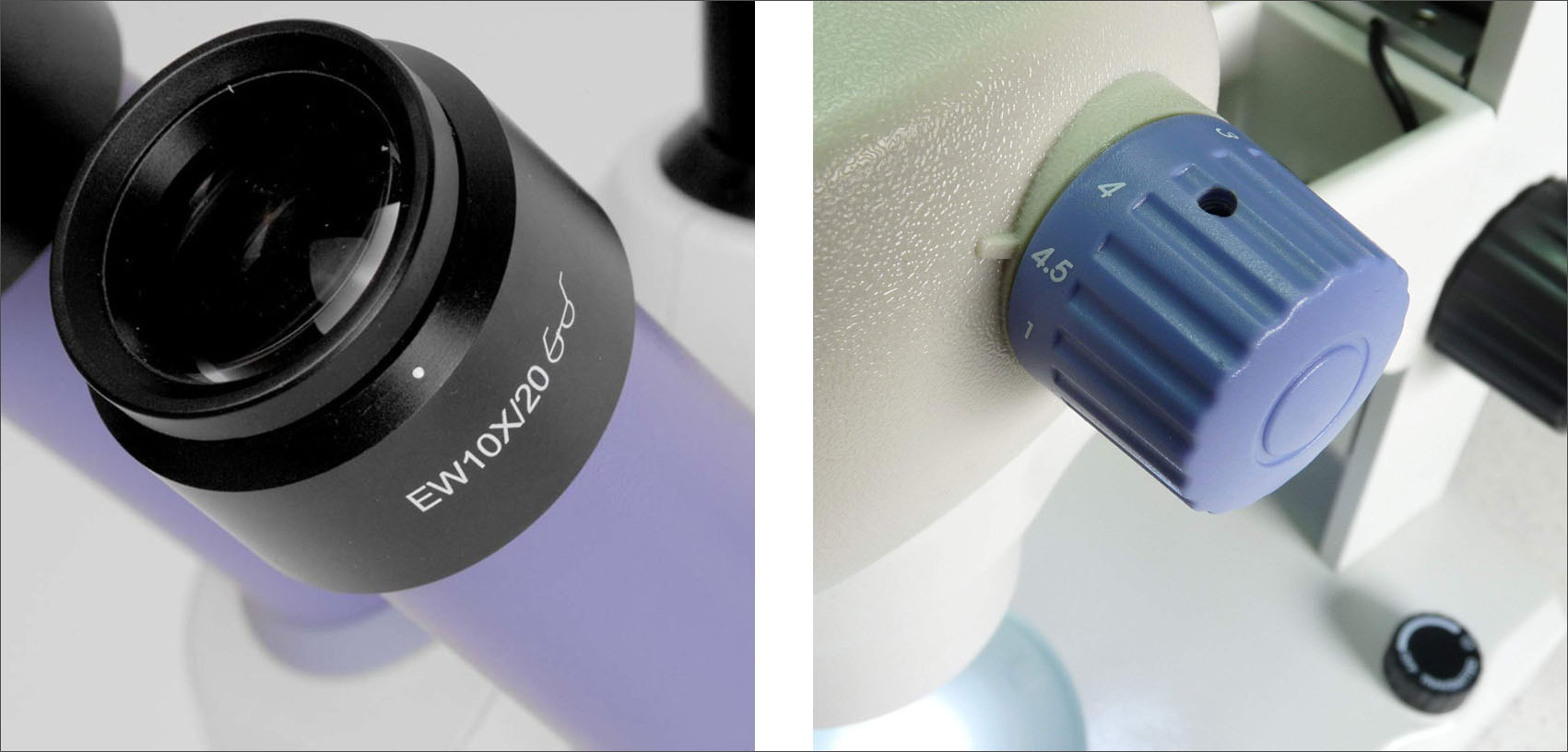

• Extra wide field eyepieces 10x/20 are
used.
• 10x-45x stereo zoom magnification (180x max.)

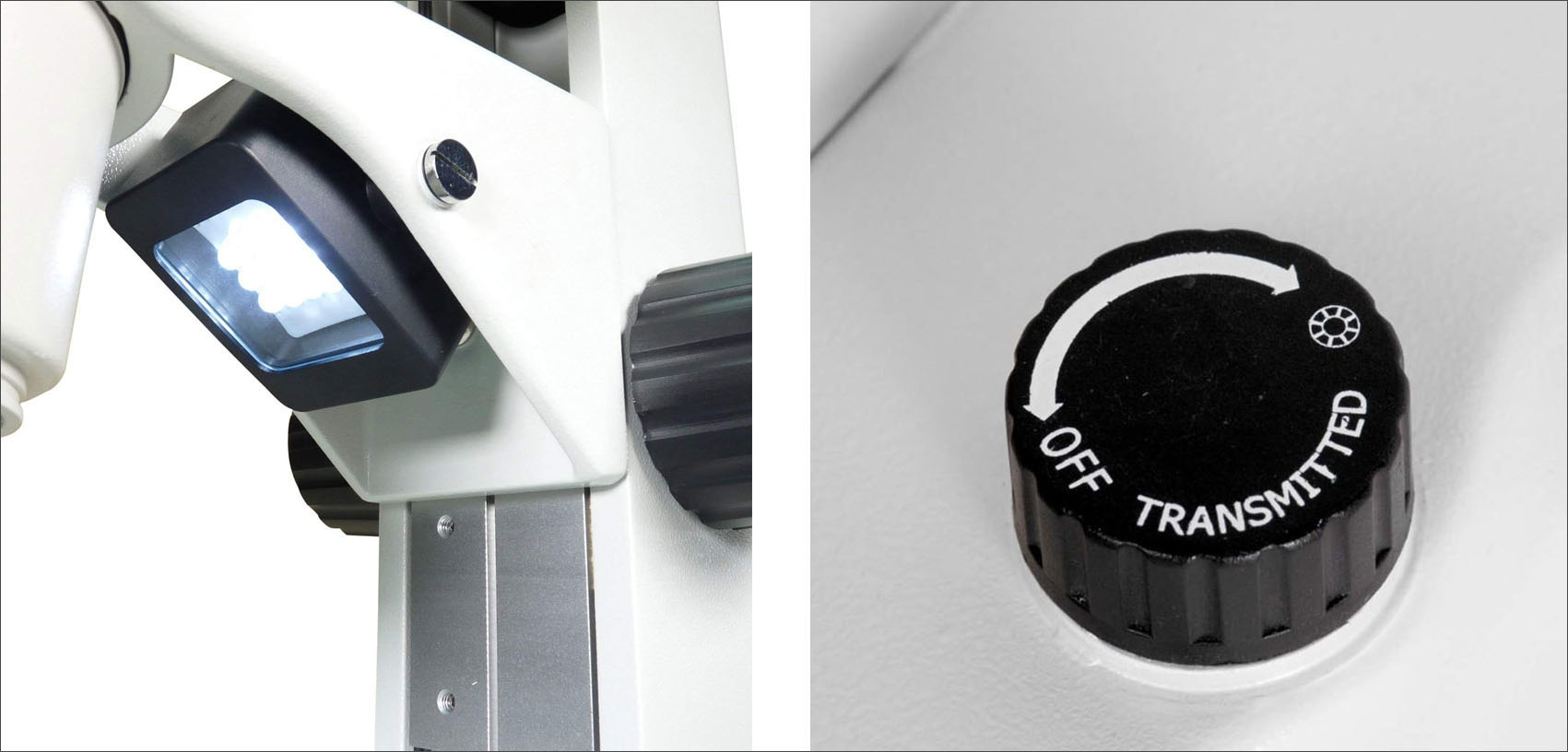

• LED illumination, Incident and
transmitted light to be used simultaneously
• The LED illumination brightness adjustable
Optical Specifications
| Objectives | Working Distance | Eyepiece | ||
| WF10x/20 | WF15x/16 | WF20x/11 | ||
| Total Mag. | Total Mag. | Total Mag. | ||
| 97mm | 10x – 45x | 15x – 67.5x | 20x – 90x | |
| 0.5x | 180mm | 5x – 22.5x | 7.5x – 33.6x | 10x – 45x |
| 0.63x | 137mm | 6.3x – 28.4x | 9.5x – 42.5x | 12.6x – 56.7x |
| 0.75x | 120mm | 7.5x – 33.8x | 11.3x – 50.6x | 15x – 67.5x |
| 2x | 30mm | 20x – 90x | 30x – 135x | 40x – 180x |
Product Specifications
|
Model |
Descriptions | NS45B | NS45T |
| Viewing head | Binocular head inclined at 45°, 360° rotation |
• |
|
| Trinocular head inclined at 45°, 360° rotation |
|
• |
|
| Eyepiece | Wide field eyepiece WF10/20mm |
•• |
•• |
| Interpupillary Range | 54~76mm |
• |
• |
| Zoom Objective | 1X~4.5X |
• |
• |
| Zoom Ratio | 4.5:1 |
• |
• |
| Working Distance | 97mm |
• |
• |
| Stage | Glass insert plate, diameter 100mm |
• |
• |
| Opal & black acrylic plate, diameter 100mm |
• |
• |
|
| Focusing | Coaxial coarse adjustment |
• |
• |
| Illumination | LED reflection illumination |
• |
• |
| LED transmission illumination |
• |
• |
|
| Focusing Range | 100mm |
• |
• |
| Supplied with | Dust cover, eyecups |
• |
• |
Parts & Accessories
| Cat No. | Descriptions |
| M22031001 | Binocular heads, 360° rotating and 45° inclined, equipped with zoom objective 0.7x-3x (1:4.3 zoom ratio) |
| M22031002 | Trinocular heads, 360° rotating and 45° inclined, equipped with zoom objective 0.7x-3x (1:4.3 zoom ratio) |
| M22031003 | Binocular heads, 360° rotating and 60° inclined, equipped with zoom objective 0.7x-3x (1:4.3 zoom ratio) |
| M22031004 | Digital heads, 360° rotating and 45° inclined, equipped with zoom objective 0.7x-3x (1:4.3 zoom ratio) |
| M22031005 | Eyepiece EW15x/16 |
| M22031006 | Eyepiece EW20x/12 |
| M22031007 | Eyepiece WF30x/8 |
| M22031008 | Eyepiece 10x with micrometer |
| M22031009 | Eye shields |
| M22031010 | Auxiliary lens 0.5x, WD 180mm |
| M22031011 | Auxiliary lens 0.63x, WD 137mm |
| M22031012 | Auxiliary lens 0.75x, WD 120mm |
| M22031013 | Auxiliary lens 2x, WD 30mm |
| M22031014 | 1X C TV mount |
| M22031015 | 0.5X C TV mount |
| M22031016 | LED ring light |
| M22031017 | Polarization set |
| M22031018 | Darkfield set |
| M22031019 | Moveable stage |
| M22031020 | Boom stand BS1 |
| M22031021 | Dual arm boom stand BS2 |
| M22031022 | Articulated boom AC1 |
| M22031023 | Articulated boom AC2 |
| M22031024 | Head holder used together with universal stand or boom stand, articulated arm stand |

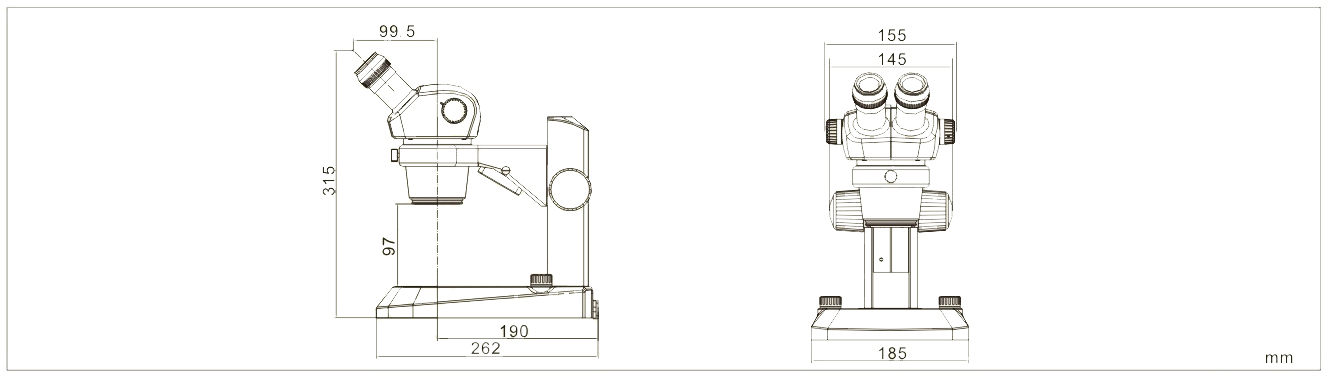

Dimensions
