Description
Features

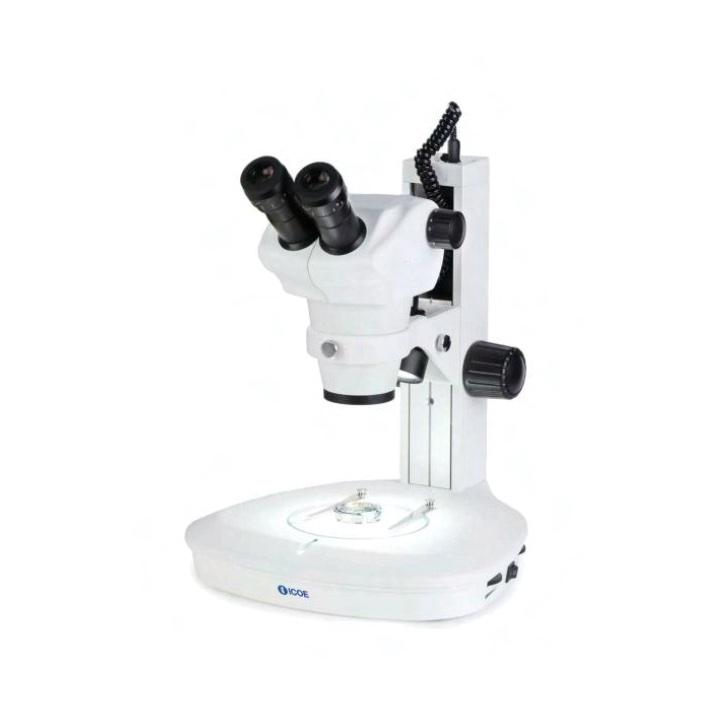

1. SX-45 series stereo zoom microscope feature with its excellent optical characteristics, easy operation and high level of ergonomic working comfort
2. The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
3. The high-quality optics, together with a large working surface offers the highest level of comfort for your applications
4. As standard this microscope offers you continuous total magnification of 8×–50×
5. As standard, the SX-45 series is provided as a binocular & trinocular version with 10× eyepieces with a field of view with a diameter of 22 mm
6. CS7 / CY2 stand gives you a large working area as well as a precise adjustment mechanism
7. A large selection of eyepieces as well as auxiliary objectives are available as accessories
Application
In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control
Applications/Samples
Samples with focus on three-dimesnional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

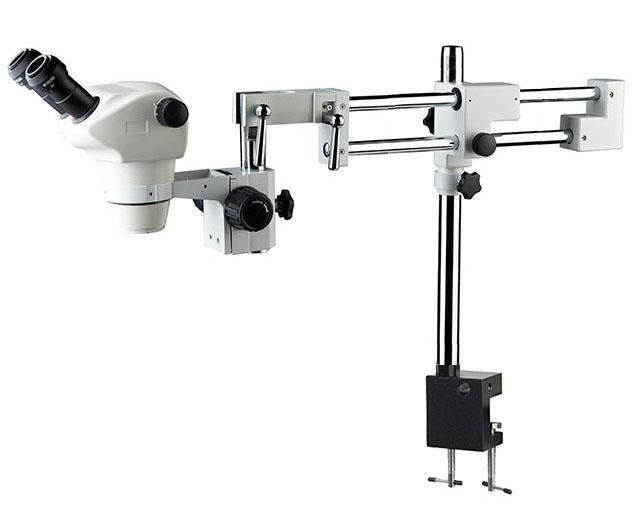

A combination with a special stand SL5
SL5 is a stand with height length 550mm tube, the horizontal bar is double and the outflow is 550mm, with coarse focusing knob on both side, with C type table clamp, max. clamping size 50mm, and it has the possibility of mounting through a hole in the table.

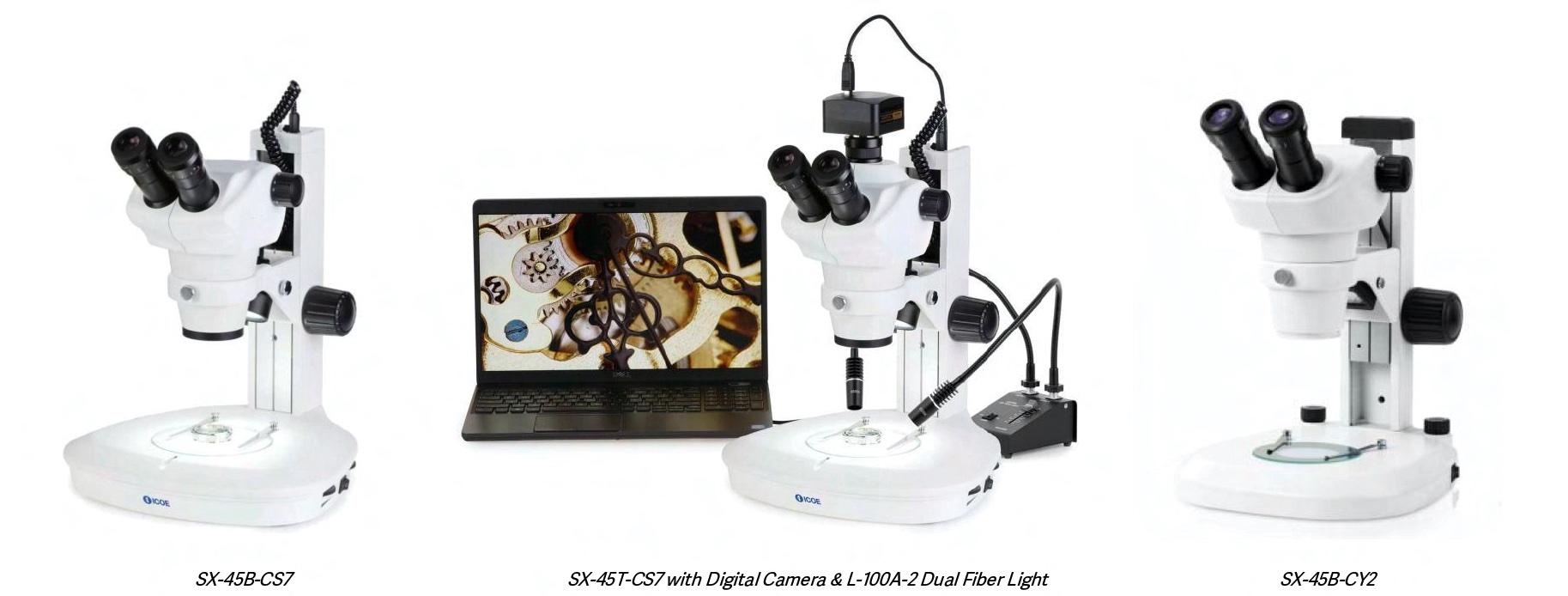

Standard Model Selections
| Order code | Tube | Eyepiece | Zoom objective | Stand type | Illumination |
| SX-45B-CS7 | Binocular | 10x / Φ22mm | 0.8x-5x | CS7 stand | 3W incident & transmitted LED |
| SX45T-CS7 | Trinocular | 10x / Φ22mm | 0.8x-5x | CS7 stand | 3W incident & transmitted LED |
| SX-45B-CY2 | Binocular | 10x / Φ22mm | 0.8x-5x | CS7 stand | 3W incident & transmitted LED |
| SX45-T-CY2 | Trinocular | 10x / Φ22mm | 0.8x-5x | CS7 stand | 3W incident & transmitted LED |
| SX-45B-SL5 | Binocular | 10x / Φ22mm | 0.8x-5x | SL5 double-arm stand | Without illumination |
| SX-45T–SL5 | Trinocular | 10x / Φ22mm | 0.8x-5x | SL5 double-arm stand | Without illumination |
Models & Specifications
| Model | SX-45B-CS7 | SX-45T-CS7 | SX-45B-CY2 | SX-45T-CY2 | SX-45B-SL5 | SX-45T-SL5 | |
| Optical system | Greenough type optical system | ● | ● | ● | ● | ● | ● |
| Viewing head with
zoom body |
Binocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5, interpupillary distance adjustable between 55 and 75 mm, continuous zoom objective range: 0.8x–5x, zoom ratio 6.3:1. Working distance: 115mm. | ● | ● | ● | |||
| Trinocular heads, 360° rotating and 30° inclined, with diopter adjustment for both side ±5, interpupillary distance adjustable between 55 and 75 mm, continuous zoom objective range: 0.8x–5x, zoom ratio 6.3:1. working distance: 115mm | ● | ● | ● | ||||
| Eyepiece | WF10x/22mm | ●● | ●● | ●● | ●● | ●● | ●● |
| WF15x/16mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
| WF20x/12mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
| WF30x/8mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
| Micrometer scale for eyepiece | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
| Pair of eyecups | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
| Auiliary objective | Auxiliary lens 0.5x, WD 220mm | ○ | ○ | ○ | ○ | ○ | ○ |
| Auxiliary lens 0.7x, WD 125mm | ○ | ○ | ○ | ○ | ○ | ○ | |
| Auxiliary lens 2x; WD 45mm | ○ | ○ | ○ | ○ | ○ | ○ | |
| Protection glass | ○ | ○ | ○ | ○ | ○ | ○ | |
| Magnification | Standard magnification: 8x-5x (can be extended to 4x-300x by selecting eyepieces & auxiliary lens) | ● | ● | ● | ● | ● | ● |
| Camera adapter | C mount adapter with 0.5x lens, for trinocular port | ○ | ○ | ○ | ○ | ○ | ○ |
| C mount adapter with 1x lens, for trinocular port | ○ | ○ | ○ | ○ | ○ | ○ | |
| Universal SLR camera adapter with 2x projection lens for 23.2 mm tubes. Needs T2 adapter | ○ | ○ | ○ | ○ | ○ | ○ | |
| T2 adapter for Nikon D digital SLR cameras | ○ | ○ | ○ | ○ | ○ | ○ | |
| T2 adapter for Canon EOS digital SLR cameras | ○ | ○ | ○ | ○ | ○ | ○ | |
| Stand | CS7 stand, base size 300×295x55mm, with insert plate and Φ125mm black/white board & glass plate, arm height: 300mm, head support: Φ76mm, with coarse focusing knob on both side, focus stroke: 105mm; with upper and lower LED lighting with 3W, independent switch, adjustable brightness; voltage range: 100-240V | ● | ● | ○ | ○ | ○ | ○ |
| CY2 stand, base size 240×285x38mm, with insert plate and Φ100mm black/white board & glass plate, arm height: 300mm, head support: Φ76mm, with coarse focusing knob on both side, focus stroke: 105mm; with upper and lower LED lighting with 3W, independent switch, adjustable brightness; voltage range: 100-240V | ○ | ○ | ● | ● | ○ | ○ | |
| SL5 universal double-arm stand, without illumination, capable to expand the operating range and observe objects in any direction, vertical pole height: 550mm, diameter: Φ32mm, horizontal movement: 550mm, with C type clamp, max. clamping size is 50mm, compatible with A1/A6/A7 head holder (adjust distance is customizable) | ○ | ○ | ○ | ○ | ● | ● | |
| Other types of stands available (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | ○ | ○ | |
| Options
|
External illumiantion (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | ○ | ○ |
| Darkfield attachment (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | ○ | ○ | |
| Polarization kit (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | ○ | ○ | |
| Movement stage (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | ○ | ○ | |
| Heating stage (please refer to the appendix page, stereomicroscope accessories) | ○ | ○ | ○ | ○ | ○ | ○ | |
Note: ● = Included with delivery ○=Option
