SZ800E CMO (Galilean) ZOOM stereo microscopes

Description

Descriptions

The SZ800E series is designed around a highly precise Infinity Parallel Zoom body equipped with a Plan Apochromatic corrected common main objective providing the necessary high contrasting images and resolving power for high-tech applications One can choose between an 1:6.3, 1:8 or even a 1:10 zoom ratio zoom body.

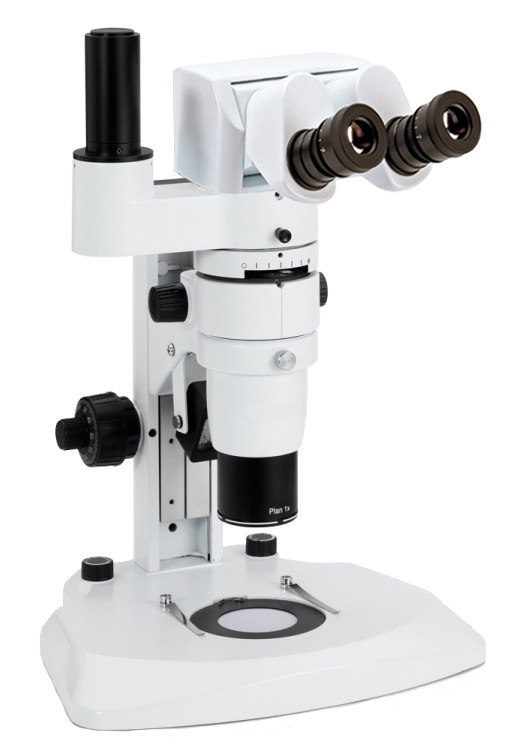

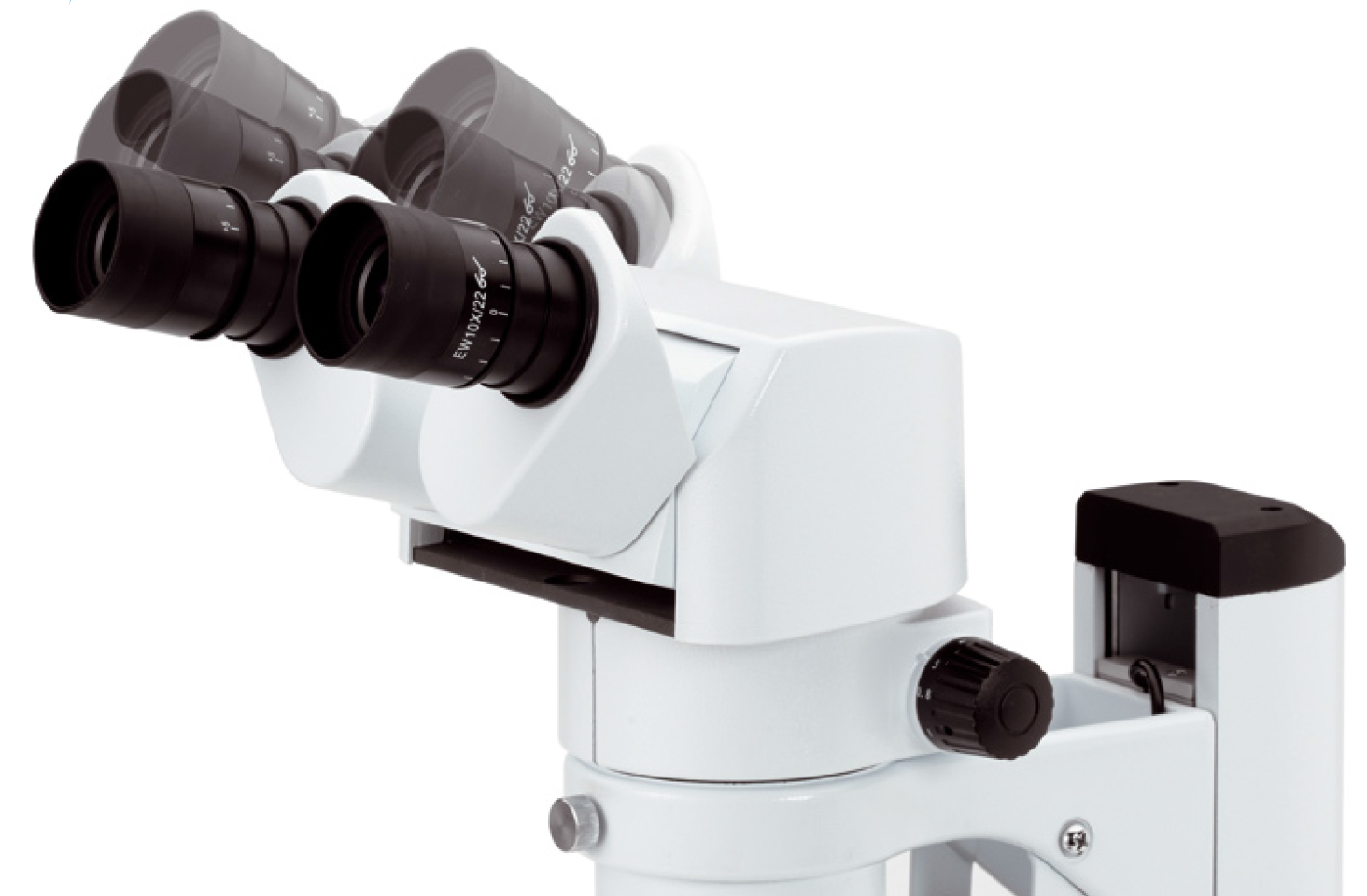

All three versions can be equipped with 3 different Plan Achromatic common main objectives with 0.5x, 1.0x and 2.0x magnifications Together with standard Extended Wide Field EWF10x/22 corrected eyepieces, magnifications up to 160x are achievable. Optionally WF 15x/16 and WF 20x/12 eyepieces for magnifications up to 320x are available. An ergonomic head with adjustable inclination from 5° up to 35° is equipped.

Optical Specifications

Objective Lens	Working Distance (mm)	Zoom Body	Eyepieces
			10X		20X		30X
			Mag	FOV (mm)	Mag	FOV (mm)	Mag	FOV (mm)
0.5X	187mm	1:06	4X – 25X	57.5 – 9.2	8X – 50X	35 – 5.6	12X – 75X	25 – 4
		1:08	4X – 32X	57.5 – 7.2	8X – 64X	35 – 4.4	12X – 96X	25 – 3.1
		1:10	4X – 40X	57.5 – 5.8	8X – 80X	35 – 3.5	12X – 120X	25 – 2.5
1X	78mm	1:06	8X – 50X	28.8 – 4.6	16X – 100X	17.5 – 2.8	24X – 150X	12.5 – 2
		1:08	8X – 64X	28.8 – 3.6	16X – 128X	17.5 – 2.2	24X – 192X	12.5 – 1.6
		1:10	8X – 80X	28.8 – 2.9	16X – 160X	17.5 – 1.8	24X – 240X	12.5 – 1.3
2X	35mm	1:06	16X – 100X	14.4 – 2.9	32X – 200X	8.8 – 1.4	48X – 300X	6.3 – 1
		1:08	16X – 128X	14.4 – 2.3	32X – 256X	8.8 – 1.1	48X – 384X	6.3 – 0.8
		1:10	16X – 160X	14.4 – 1.8	32X – 230X	8.8 – 0.9	48X – 480X	6.3 – 0.6

Specifications

Model	SZ806EB	SZ808EB	SZ810EB
Optical System	Parallel optical zoom system
Viewing Head	Ergonomic tilting binocular head with adjustable inclination from 5° up to 35°, interpupilary distance 55-75mm, eye-point height can be raised to 137mm
Eyepiece	EW10×/22
Zoom Objective	0.8×-5×	0.8×-6.4×	0.8×-8×
Main Objective	1X Plan Achromatic Objective WD: 78mm
Zoom Ratio	1:06	1:08	1:10
Working Distance	78mm
Focusing	Focusing Range 105mm
Illumination	Transmission or Reflection LED Illumination, Brightness Adjustable
Stand	Robust metal large stand with coaxial coarse unit		Robust metal large stand with coaxial coarse & find focusing unit

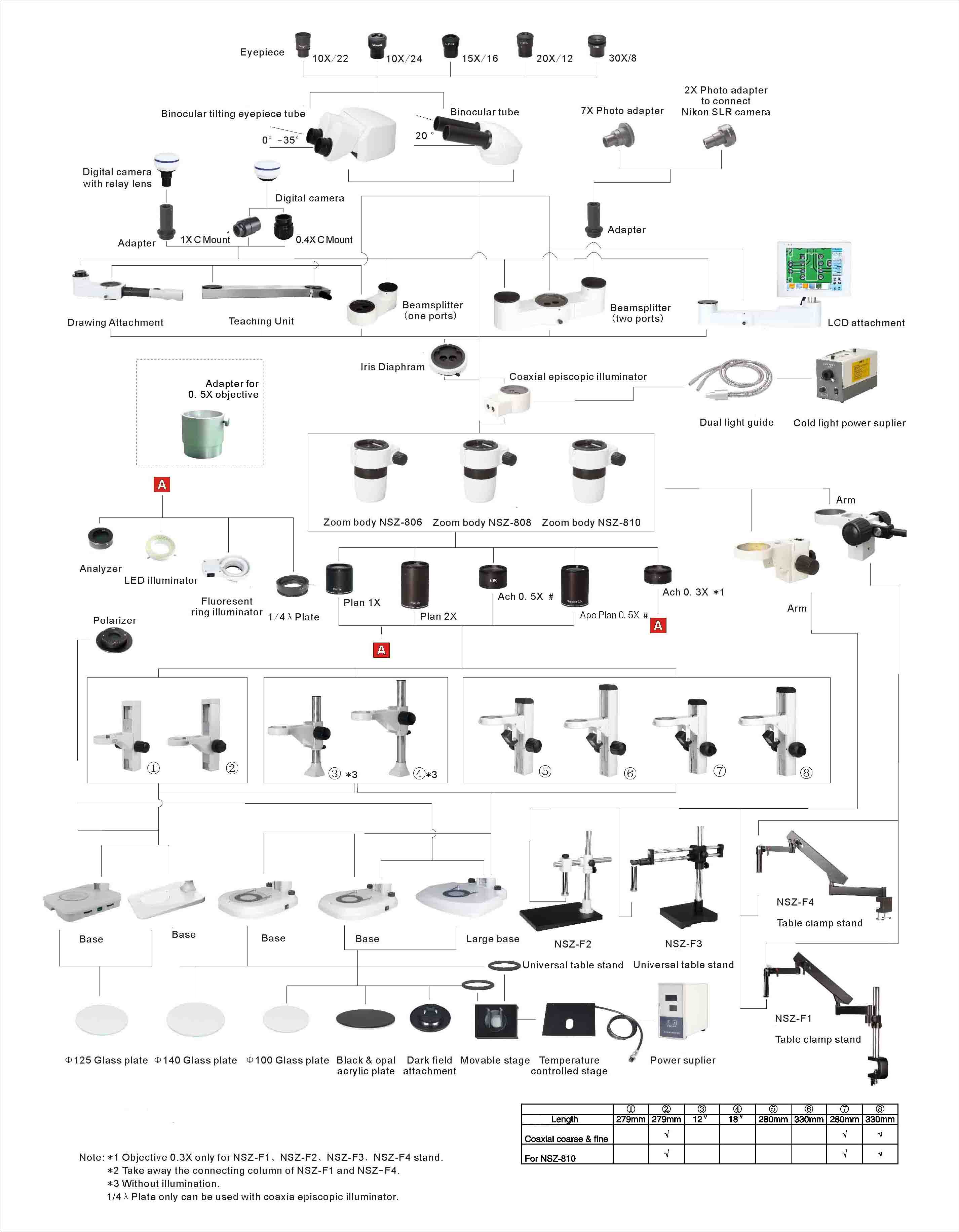

Options

• Viewing Head: Binocular Head, 20° Inclination, Interpupilary distangce 55-75mm
• Eyepiece WF10X/24, Eyepiece WF15×/16, Eyepiece WF20×/12, Eyepiece WF30X
• Zoom Objective Body 1:6, Zoom Objective Body 1:8, Zoom Objective Body 1:10
• Objective: 0.3X Achromatic Objective WD: 276mm
• Objective: 0.5X Achromatic Objective WD: 195mm
• Objective: 2X Plan Achromatic Objective WD:32.5mm
• Objective 0.5X Plan Apochromatic objective WD: 126mm
• Coaxial illumination (1/4λ Plate is included)
• Epi-fluorescent attachment (B & G cubes included)
• Dark field attachment Simple polarization set
• Iris diaphragm
• Beamsplitter (one port), Beamsplitter (two ports)
• Moveable stage
• Temperature controlled stage including Power supplier Cold light illumination with dual light guide
• LCD Attachment
• Photography attachment: Adapter NIKON Camera Adapter, Adapter for CANON Camera Adpter
• Video Attachemnt: 1X C mount, 0.5X C, mount 0.4X C mount
• Universal table stand

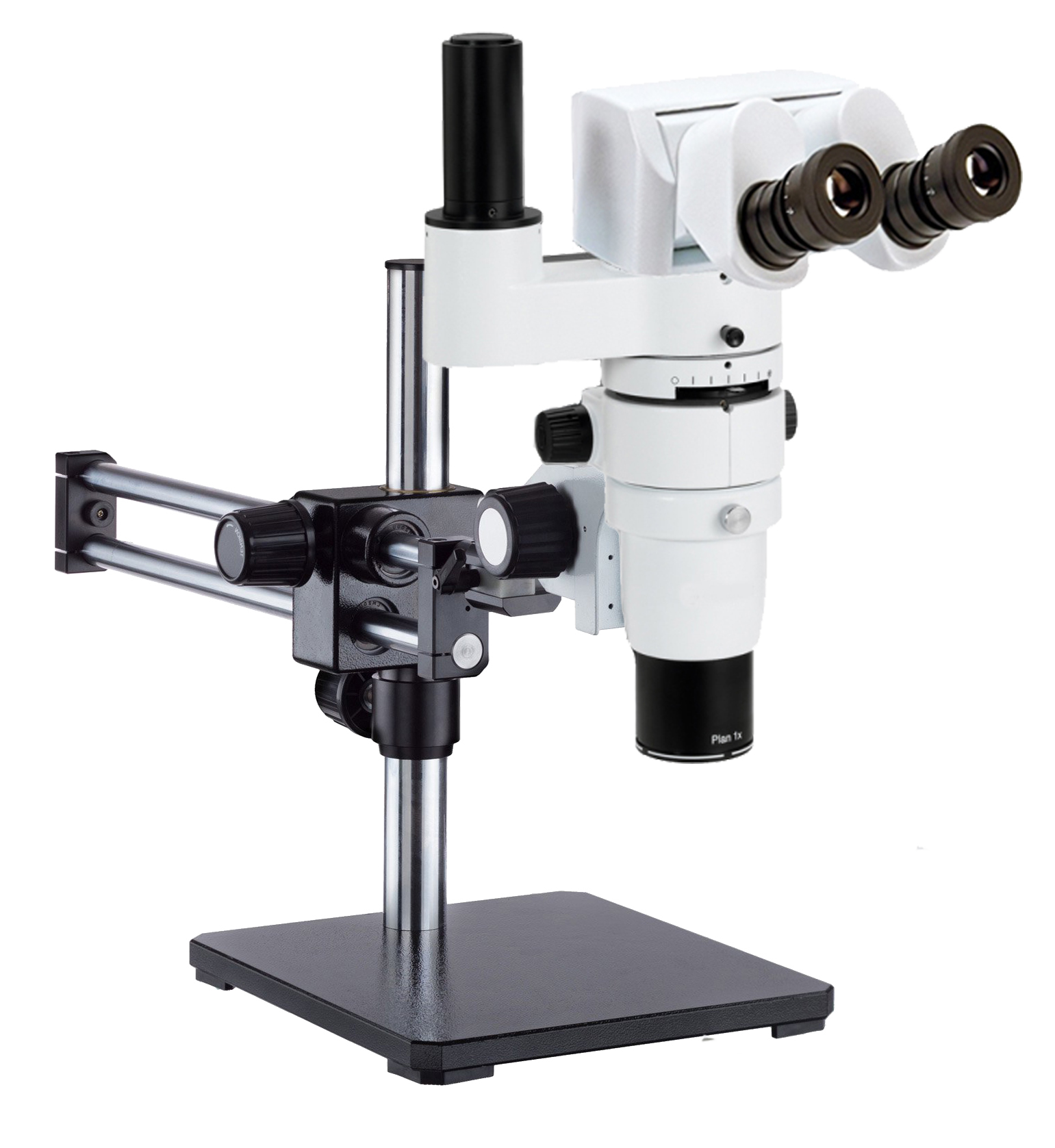

• Articulated boom
