Description
Features
1. 0.6X-5.0X automatic electric zoom, smart cruise setting. High precision optical system design, continuous cruise the center keep same, repeat precision can reach 0.001um
2. Supports two observation modes: 2D plane and electric 360-degree rotating 3D
3. The 3D objective lens has a 45-degree observation angle and good parfocal performance. When switching from 2D to 3D, no need to adjust the focus
4. High prevision electronic feedback system, with 1/1.2” 1920×1080 HDMI camera, support for photo and video storage, multi-function integrated controller, easy to operate. no need PC, no need install software, connect HDMI monitor directly.
5. 2D and 3D observation model, motor 360 degree rotation 3D inspection.
6. Real time display the optical magnification and image magnification. User don’t need calibrate it again, emasuring directly.
7. Built-in smart measuring software. One key save high-definition images and measurement data, mouse operate directly, easy and convenient.
8. With LED ring light source, add integrated side light source, follow the 360-degree rotation of the 3D observation head, perfectly solve the problem of light source vignetting
9. High hardness aluminum alloy material, anodic oxidation treatment, more durable in use

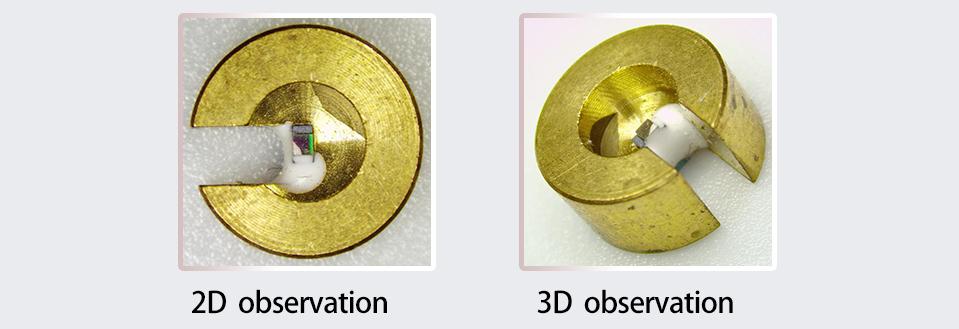

2D and 3D observation mode, motor 360 degree rotation 3D inspection

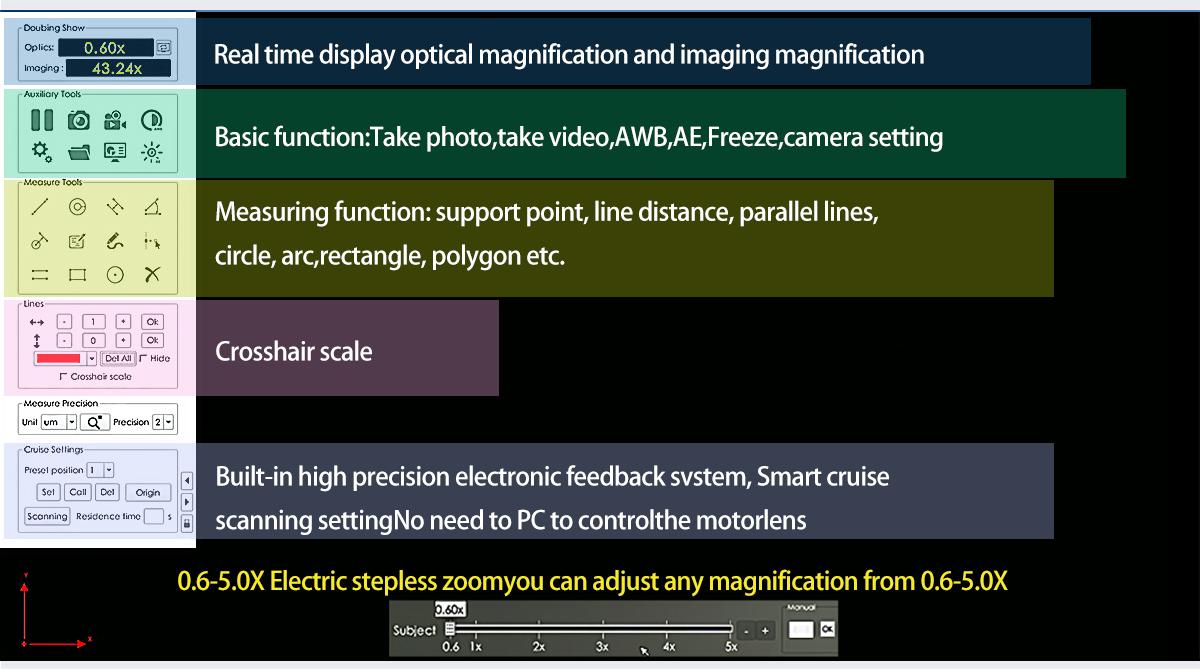

Built-in smart measuring software. One key save high-definition images and measurement data, mouse operate directly, easy and convenient.

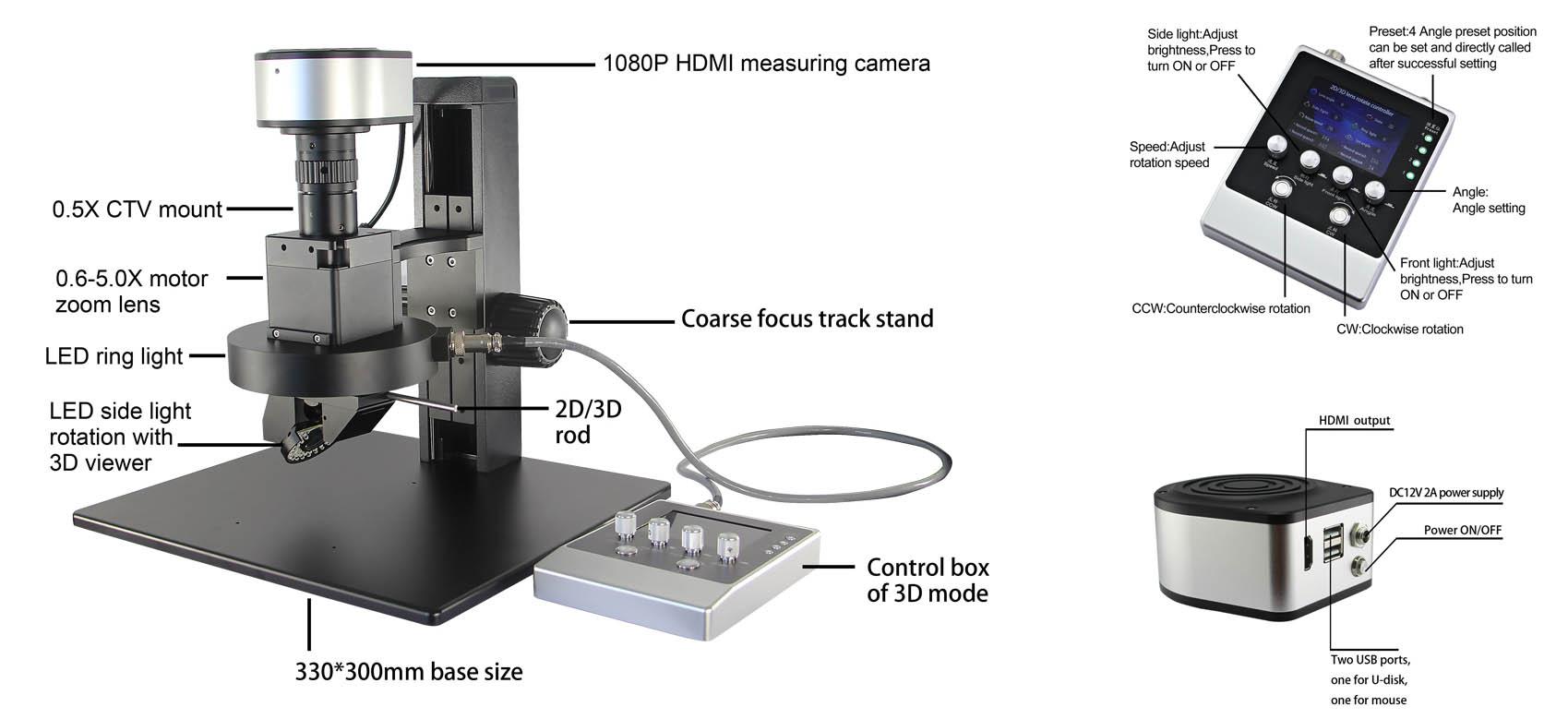

Product Details
Models & Specifications
| Model | EVM3D65HD-FH6 | ||
| Lens Parameter | Zoom magnification: | 0.6X-5X | ● |
| C mount: | 0.5X CTV | ● | |
| Zoom: | Auto zoom | ● | |
| FOV: | 24 x 13.5mm – 2.88 x 1.62mm | ● | |
| Total magnification: | 22X-183X (based on 23.8 inch monitor) | ● | |
| Observation mode: | 2D/motor 360° rotation 3D | ● | |
| Working distance: | 2D: 86mm, 3D: 50mm | ● | |
| Camera Parameter | Resolution: | 1920 x 1080 | ● |
| Frame: | 60fps | ● | |
| Sensor: | 1/2″ | ● | |
| Pixel size: | 3.75 x 3.75um | ● | |
| Output: | High resolution HDMI output | ● | |
| Measuring function: | Support measuring of point, line, parallel lines, circle, arc, angle rectangle, polygon etc. | ● | |
| Storage function: | Storage photo and video to USB disks | ● | |
| Stand Parameter: | Stand | FH6 stand, base size 330x300mm, post height: 30mm, with coarse focusing, 105mm travel distance | ● |
| Light source parameeter: | Ring light: | 267pcs LED, 6000K color temperature, brightness 0-100% adjustable | ● |
| Slide light: | 31pcs LED, 6000K color temperature, brightness 0-101% adjustable | ● | |
| Monitor: | 15.6″ Monitor | ○ | |
Optional Accessories
| EVM65HDCTV030 | 0.3X CTV mount for digital camera |
| EVM65HDCTV045 | 0.45X CTV mount for digital camera |
| EVM65HDCTV050 | 0.5X CTV mount for digital camera |
| EVM65HDCTV075 | 0.75X CTV mount for digital camera |
| EVM65HDCTV100 | 1X CTV mount for digital camera |
| FH6 | FH6 post stand, base size 330x300mm, post height: 318mm, with coarse focusing, 105mm travel distance |
| FH6L | FH6L post stand, base size 330x300mm, post height: 318mm, with coarse focusing, 105mm travel distance, with LED transmitted light |
| FH6A | FH6A post stand, base size 330x300mm, post height: 318mm, with coarse and fine focusing, 105mm travel distance |
| FH6AL | FH6AL post stand, base size 330x300mm, post height: 318mm, with coarse and fine focusing, 105mm travel distance, with LED transmitted light |
| FH6Q | FH6Q track stand, base size 330x300mm, column height: 325mm, with coarse focusing, 150mm travel distance |
| FH6QL | FH6QL track stand, base size 330x300mm, column height: 325mm, with coarse focusing, 150mm travel distance, with LED transmitted light |
| FH6QA | FH6QA track stand, base size 330x300mm, column height: 325mm, with coarse and fine focusing, 150mm travel distance |
| FH6QAL | FH6QAL track stand, base size 330x300mm, column height: 325mm, with coarse and fine focusing, 150mm travel distance, with LED transmitted light |
