Description

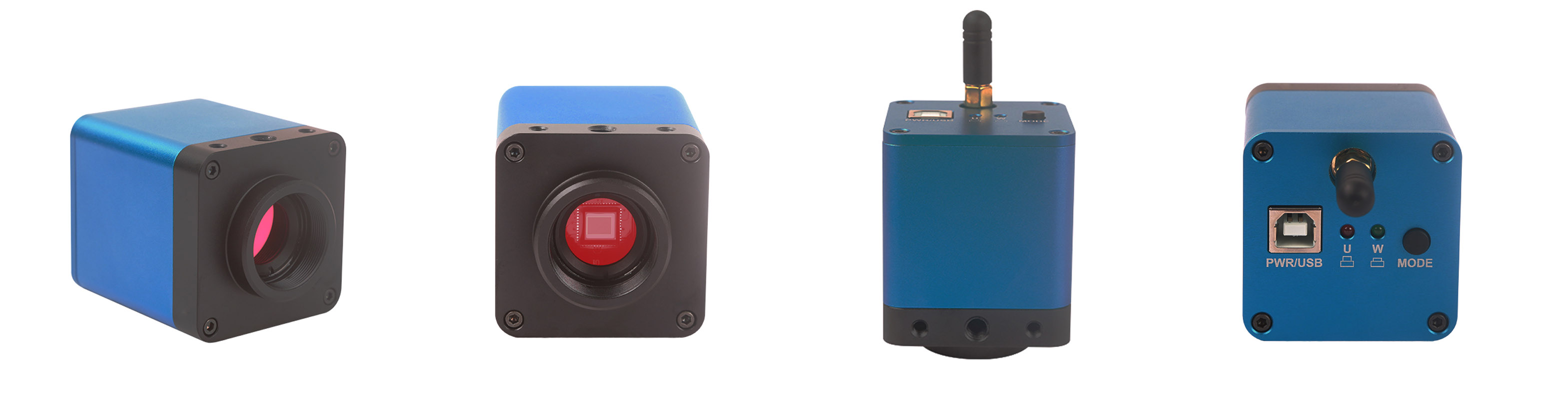

WU Series C-mount WiFi+USB CMOS Camera
WU series is a camera that has the WiFi output and USB output. An on-camera switch is used to switch between the WiFi output and USB output.
When WiFi output is available, this camera is used as a WiFi camera and could be connected to mobile devices, such as smart phones, pads and computers. It could work with ImageView app on iOS, Android and windows platform. More than 6 users could connect the camera simultaneously by WiFi connection.
When USB output is available, this camera is used as a USB camera and could support UVC standard. The camera could be used with ImageView or other 3rd part software which could support UVC camera.
Model Details
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| WU-09A | 720P/MT9P001(C) 1/2.5″(5.63×3.17) |
2.2×2.2 | 0.53V/lux-sec 66.5dB 40dB |
30@1280×720 | 2×2 | 0.21ms~2000ms |
Other Hardware Configuration
| Output Interface | USB or WiFi(on Camera Switch) |
| Spectral Range | 380-650nm (with IR-filter) |
| White Balance | Whole Area White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
| Recording System | Still Picture and Movie |
| Maximum Connected Device | 6~7 |
| Cooling System* | Natural |
Operating Environment
| Operating Temperature | -10℃~ 50℃ |
| Storage Temperature | -20℃~ 60℃ |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | USB Power Adaptor, Not Recommend for PC USB Port |
Software Environment
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) IOS IPAD or IPhone, Android PAD and Phone |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| WIFI Adapter with DHCP Enabled | |
| Display: 17″ or Larger | |
| CD-ROM | |
| PAD | IPAD or PAD with Android System |
| Mobile Phone | IPhone or Smart Phone with Android System |
