Description
Descriptions
The stereomicroscopes of the ZT45 series are instruments designed for laboratory and industry applications. Their optical and mechanical qualities place them at the top of their category and the price/quality ratio is excellent. The stereomicroscopes share the same optical system consisting of binocular and trinocular heads with zoom objectives. The four models of the ZT45 series find their proper application wherever professional instruments are required. Several accessories provide many choice of configurations and applications.
Optical Specifications
|
Eyepiece
|
1x
|
Auxiliary lens 0.5x
|
Auxiliary lens 1.5x
|
Auxiliary lens 2x
|
||||
|
W.D. 100mm
|
W.D. 165mm
|
W.D. 45mm
|
W.D. 30mm
|
|||||
|
Total Mag.
|
FOV
|
Total Mag.
|
FOV
|
Total Mag.
|
FOV
|
Total Mag.
|
FOV
|
|
|
10X/20mm
|
7X
|
28.6mm
|
3.5X
|
57.1mm
|
10.5X
|
19mm
|
14X
|
14.3mm
|
|
45X
|
4.4mm
|
22.5X
|
8.9mm
|
67.5X
|
3mm
|
90X
|
2.2mm
|
|
|
15X/15mm
|
10.5X
|
21.1mm
|
5.25X
|
42.8mm
|
15.75X
|
14.3mm
|
21X
|
10.7mm
|
|
67.5X
|
3.3mm
|
33.75X
|
6.7mm
|
101.25X
|
2.2mm
|
135X
|
1.7mm
|
|
|
20X/10mm
|
14X
|
14.3mm
|
7X
|
28.6mm
|
21X
|
9.5mm
|
28X
|
7.1mm
|
|
90X
|
2.2mm
|
45X
|
4.4mm
|
135X
|
1.5mm
|
180X
|
1.1mm
|
|
|
25X/9mm
|
17.5X
|
12.9mm
|
8.85X
|
25.4mm
|
26.2X
|
8.6mm
|
35X
|
6.4mm
|
|
112.5X
|
2.0mm
|
56.3X
|
4.0mm
|
168.8X
|
1.3mm
|
225X
|
1.0mm
|
|
|
30X/8mm
|
21X
|
11.4mm
|
10.5X
|
22.9mm
|
31.5X
|
7.6mm
|
42X
|
5.7mm
|
|
135X
|
1.8mm
|
67.5X
|
3.6mm
|
202.5X
|
1.2mm
|
270X
|
0.9mm
|
|
Specifications

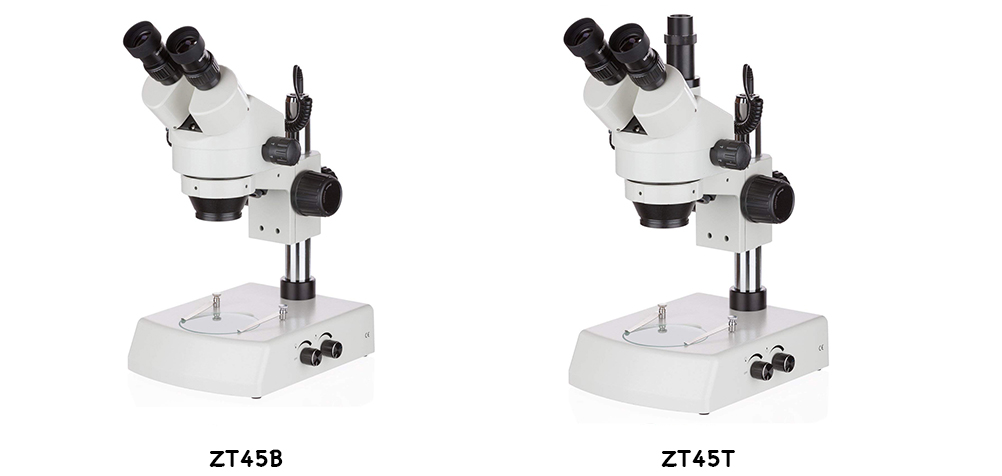

| Model | ZT45B | ZT45T |
| Viwing Head | Binocular heads, 360° rotating and 45° inclined | Trinocular heads, 360° rotating and 45° inclined |
| Interpupillary distance | Adjustable between 54 and 76 mm | |
| Eyepieces | Eyepieces: WF10x/20 mm | |
| Specimen Stage | Fitted with a semi-transparent disc for transmitted light with specimen clips | |
| Objectives | Continuous zoom 0.7x – 4.5x. (6.43:1 zoom factor). Working distance: 100 mm | |
| Stand | Pole type with focusing mechanism | |
| Focusing | Rack and opinion controlled by a pair of knobs placed on both sides of the stand | |
| Illumination | Double adjustable illuminator for incident and transmitted light fitted with two high-efficiency LED light sources, brightness adjustable, The angle of the incident illuminator is adjustable, voltage: 110/240V AC | |

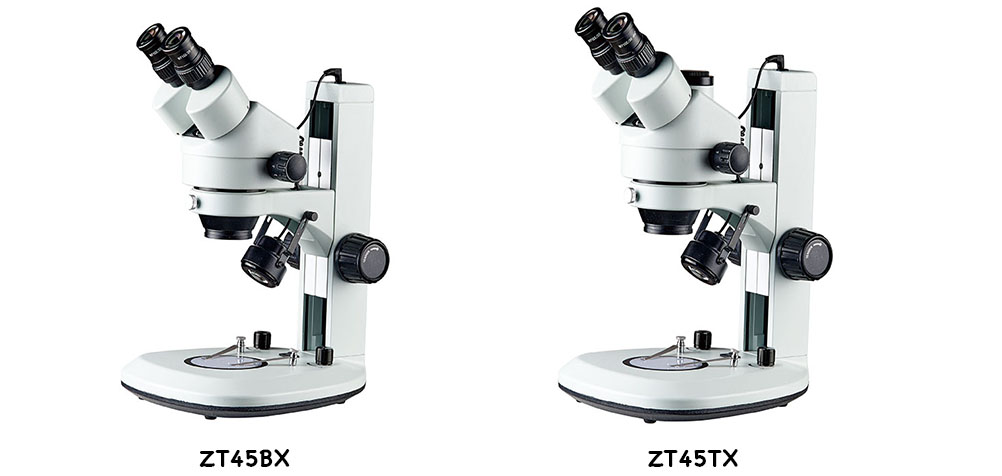

| Model | ZT45BX | ZT45TX |
| Viwing Head | Binocular heads, 360° rotating and 45° inclined | Trinocular heads, 360° rotating and 45° inclined |
| Interpupillary distance | Adjustable between 54 and 76 mm | |
| Eyepieces | Eyepieces: WF10x/20 mm | |
| Specimen Stage | Fitted with a semi-transparent disc for transmitted light with specimen clips | |
| Objectives | Continuous zoom 0.7x – 4.5x. (6.43:1 zoom factor). Working distance: 100 mm | |
| Stand | Robust metal large stand with column | |
| Focusing | Rack and opinion controlled by a pair of knobs placed on both sides of the stand | |
| Illumination | Double adjustable illuminator for incident and transmitted light fitted with two high-efficiency LED light sources, brightness adjustable, The angle of the incident illuminator is adjustable, voltage: 110/240V AC | |
Options
| Cat. Number | Descriptions | Picture |
| M22202001 | Binocular heads, 360° rotating and 45° inclined |  |
| M22202002 | Trinocular heads, 360° rotating and 46° inclined | |

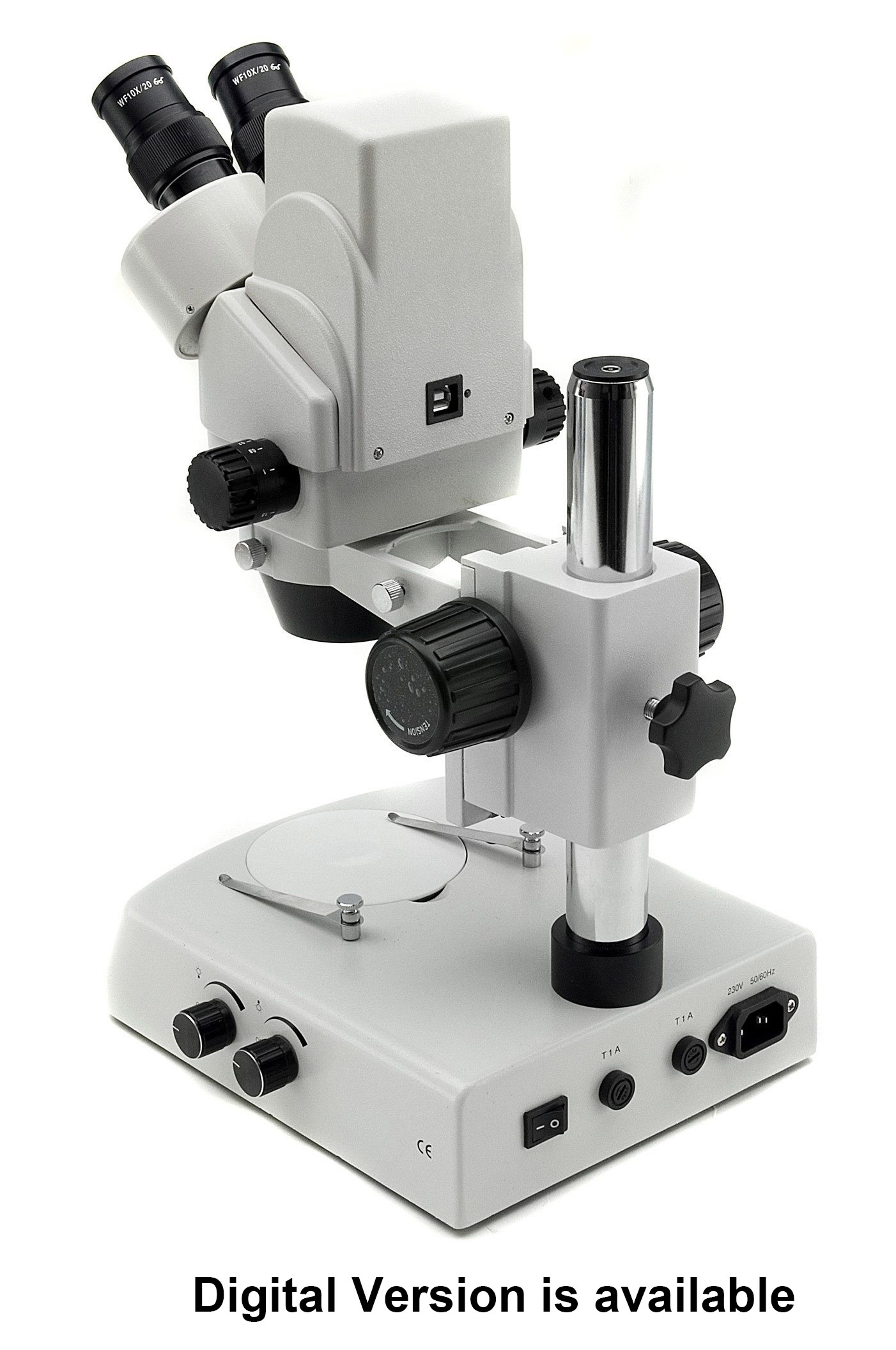

| M22202003 | Digital head with 1.3Mp integrated camera, 45° inclined, 360° rotatable | |
| M22202004 | Eyepiece EW 15x/15 | |
| M22202005 | Eyepiece EW 20x/10 | |
| M22202006 | Eyepiece EW 25x/9 | |
| M22202007 | Eyepiece EW 30x/8 | |
| M22202008 | Eye shields | |
| M22202009 | Auxiliary lens 0.5x, WD 165mm | |
| M22202010 | Auxiliary lens 1.5x; WD 45mm | |
| M22202011 | Auxiliary lens 2x; WD 30mm | |
| M22202012 | 1X C TV mount | |
| M22202013 | 0.5X C TV mount | |
| M22202014 | 0.3X C TV mount | |
| M22202015 | LED Ring Light | |
| M22202016 | Boom stand | |
| M22202017 | Dual arm boom stand | |
| M22202018 | Articulated Arm |
More Models Available
 |
 |
 |
 |

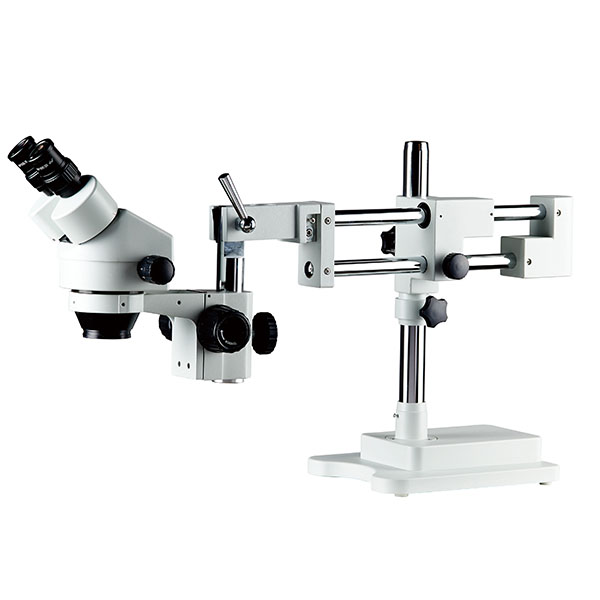

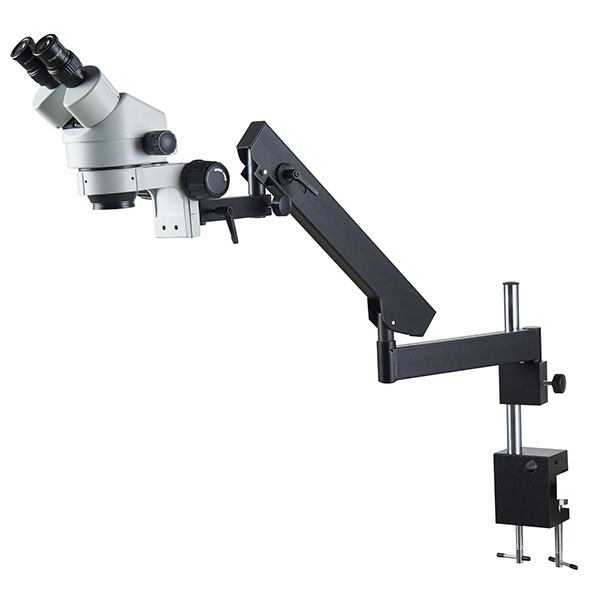

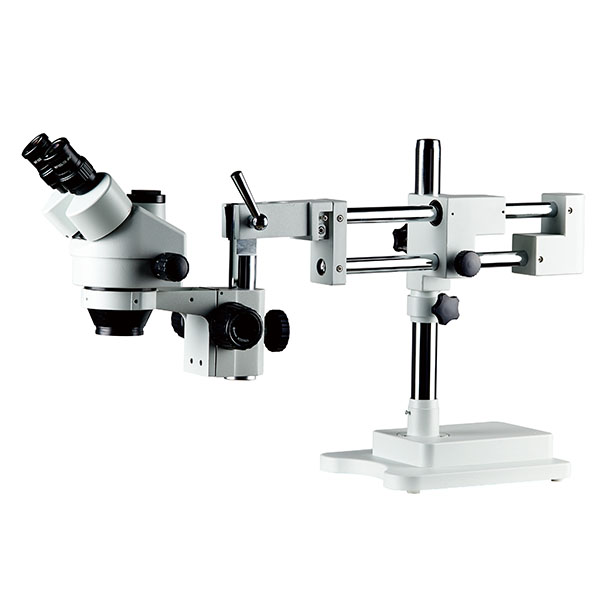

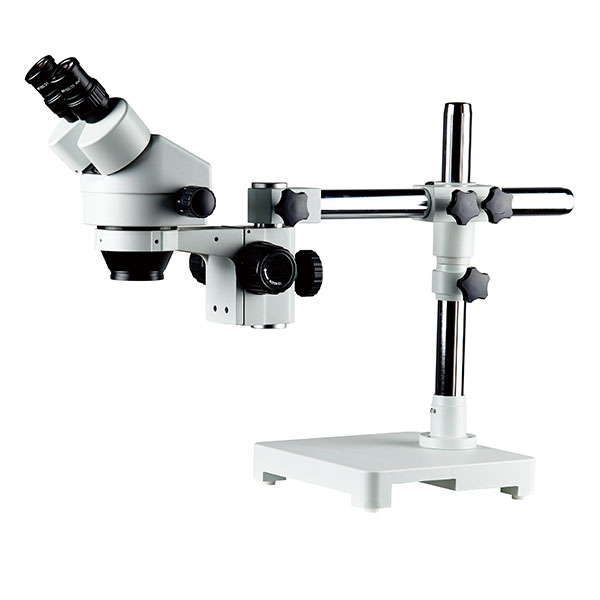

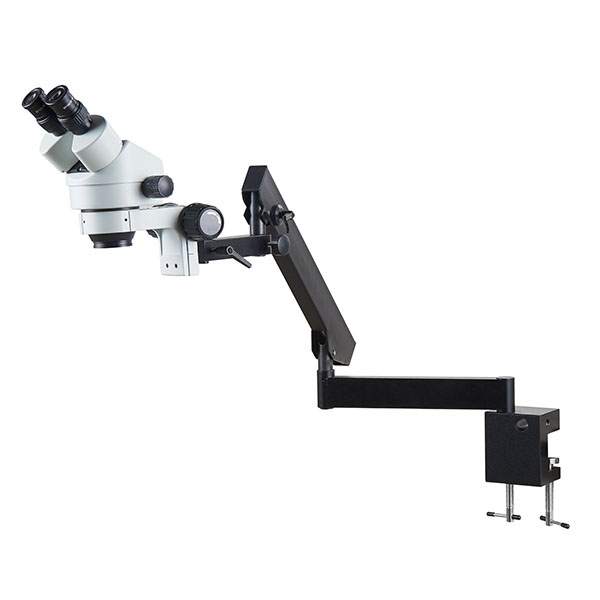

| ZT45B-BS1 | ZS45T-BS2 | ZT45B-AC1 | ZT45B-AC2 |
 |
 |
 |
 |

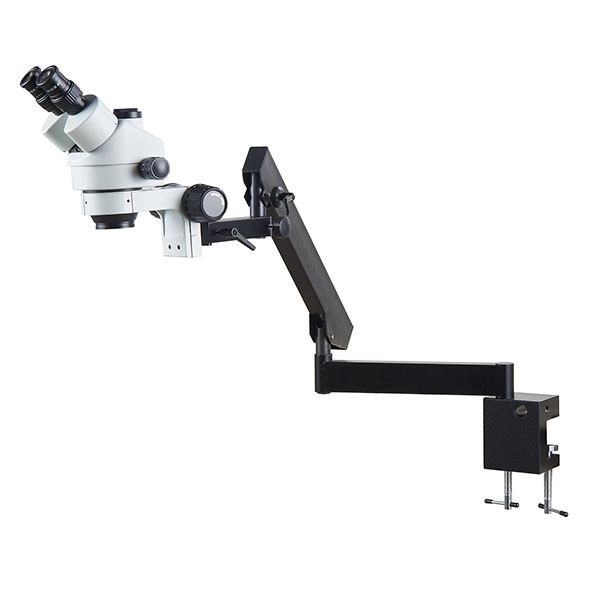

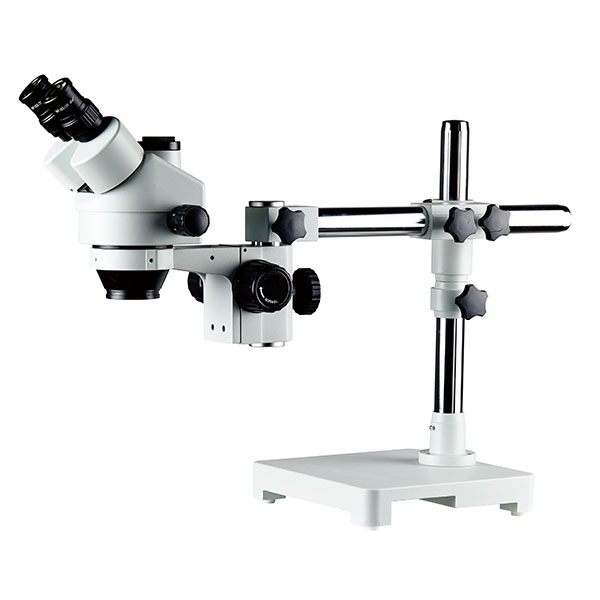

| ZT45T-BS1 | ZT45T-BS2 | ZT45T-AC1 | ZT45T-AC2 |
