ZX86 Series Greenough Zoom Stereo Microscope is a precision and versatility in stereo microscopy with a large zoom range 0.7x-6x. Experience the epitome of high-precision examination and 3D imaging with the ZX86 series stereo microscopes. Specifically engineered for your most demanding applications, these exceptional zoom microscopes provide unparalleled accuracy and clarity. Whether analyzing material surfaces or observing and preparing biological samples, the ZX86 is your gateway to comprehensive insights.
Features
1. Binocular and trinocular heads with WF 10x/22mm eyepieces for comfortable and immersive viewing experiences.
2. Double 3W LED illumination for incident and transmitted illumination, with dual color temperature switchable (3000K & 56000K), ensuring optimal illumination for your specimens.
3. Large working distance, allowing ample space for sample manipulation and preparation.
4. Zoom ratio of 1:8.6, offering a remarkable magnification range from 7x to 60x based on 10x eyepieces. Capture the finest details and explore the microscopic world with precision.
5. Ergonomic stands designed to provide optimal comfort during extended observation sessions.
6. Configurations available with magnification capabilities up to 2.1x-360x, catering to a wide range of applications.
7. Compliance with rigorous international standards for safety and quality.
Models & Specifications

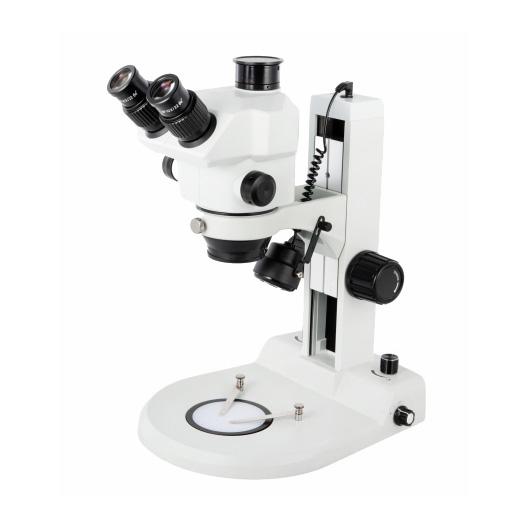

| Model | ZX86B-CL6 | ZX86T-CL6 | ZX86L-CL6 | |
| Optical system: | Greenough type optical system | • | • | • |
| Viewing Head: | Binocular viewing head with trinocular port for digital camera, 360° rotating and 45° inclined, with diopter adjustment for both side ±5 | • | ||
| Trinocular viewing head with trinocular port for digital camera, 360° rotating and 45° inclined, with diopter adjustment for both side ±5 with a fixed light path beamsplitter (50:50). | • | • | ||
| Interpupillary distance: | Adjustable between 54 and 76mm | • | • | • |
| Eyepiece: | A pair of eyepieces WF 10x/22mm | •• | •• | •• |
| Zoom objective: | Continuous zoom 0.7x – 6x. | • | • | • |
| Field of view : | From 31.4 mm to 3.7 mm. | • | • | • |
| Working distance: | WD: 120mm | • | • | • |
| Zoom ratio: | 8.6:1 | • | • | • |
| Magnification: | Standard magnification: 7x-60x (can be extended to 2.1x-360x by select eyepieces & auxiliary objectives) | • | • | • |
| Focusing: | Rack and opinion controlled by a pair of knobs placed on both sides of the stand | • | • | • |
| Illumimation: | 3W LED illuminators with dual color temperature for transmitted & reflected lighting with integrated control panel and dual color temperature switchable 3000K & 5600K, power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensity can be adjusted separately | • | • | • |
| Stand & stage base: | CL6 Ergo stand with dual LED illumiantion (incident and transmitted light), and the light with two color temperture swtichable (3000K & 5600K), Coaxial coarse fcousing adjustment (fine focusing is optional), ∅100 object plate,microscope base dimensions 240×285 mm, with anti-vibration feet. Choice of black or white background (incl. Light base, medium width AntiShock) | • | • | • |
| CL4 Ergo Stand with dual LED illumination (incident and transmitted light), 300mm Height of Post, Coaxial coarse fcousing adjustment (fine focusing is optional), ∅100 object plate,microscope base dimensions 240×285 mm, with anti-vibration feet. Choice of black or white background (incl. Light base, medium width AntiShock) | ○ | ○ | ○ | |
| Boom stand BS1 | ○ | ○ | ○ | |
| Dual arm boom stand BS2 | ○ | ○ | ○ | |
| Articulated Arm AC1 | ○ | ○ | ○ | |
| Articulated Arm AC2 | ○ | ○ | ○ | |
| More stands are available, please contact us to get more information on ICOE stands | ○ | ○ | ○ | |
| Others: | Supplied with power cord, dust cover, user manual. All packed in a polystyrene box | • | • | • |
| C mount: | 1x C mount for digital camera | ○ | ○ | ○ |
| 0.5x C mount for digital camera | ○ | ○ | ○ | |
| Digital tablet: | 10.5″ LCD touch screen with integrated display camera, with IMX307, 1/2″ sensor, 2.0×2.0um, 8MP 4K, CMOS chip 2 x USB3.0 ports, 1 x USB2.0 port, 1 x HDMI port, 1 x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, built-in with S-EYE image software, Exposure: Automatic and manual, with target brightness settings available; Exposure time 0-999MS, White Balance: Auto and Manual and ROI Mode, Parameter settings Contrast, saturation, brightness, sharpness, noise reduction, etc. | ○ | ○ | • |
| Digital camera: | Please contact us to get ICOE digital cameras information, or you may see the ICOE digital camera’s webpage | ○ | ○ | ○ |
More stands Available
Optional Accessories
| Cat. Number | Descriptions |
| MZX86001 | Binocular heads, 360° rotating and 45° inclined |
| MZX86002 | Trinocular heads, 360° rotating and 45° inclined |
| MZX86003 | Eyepiece WF 10x/22 |
| MZX86004 | Eyepiece WF 10x/23 |
| MZX86005 | Eyepiece WF 15x/16 |
| MZX86006 | Eyepiece WF 20x/12 |
| MZX86007 | Eyepiece WF 25x/9 |
| MZX86008 | Eyepiece WF 30x/8 |
| MZX86009 | Reticle for 10x eyepiece |
| MZX86010 | Eye shields |
| MZX86011 | Auxiliary lens 0.3x |
| MZX86012 | Auxiliary lens 0.5x |
| MZX86013 | Auxiliary lens 0.7x |
| MZX86014 | Auxiliary lens 0.75x |
| MZX86015 | Auxiliary lens 1.5x |
| MZX86016 | Auxiliary lens 2x |
| MZX86017 | 1X C TV mount |
| MZX86018 | 0.3X C TV mount |
| MZX86019 | 0.5X C TV mount |
| MZX86020 | 0.75X C TV mount |
| MZX86021 | LED Ring Light |
| MZX86022 | Polarization Set, 360° rotatable round stage with built-in polarization filter |
| MZX86023 | 360° rotatable analyzer in mount to be screwed under head |
| MZX86024 | Darkfield Set |
| MZX86025 | Moveable Stage, 180 x 155mm X-Y, 76 x 55mm translation stage and transparent glass plate for stereo microscope |
| MZX86026 | Boom stand BS1 |
| MZX86027 | Dual arm boom stand BS2 |
| MZX86028 | Articulated Arm AC1 |
| MZX86029 | Articulated Arm AC2 |
| MZX86030 | Heating stage with PID controller up to 50°C. Only supplied with a new microscope |
